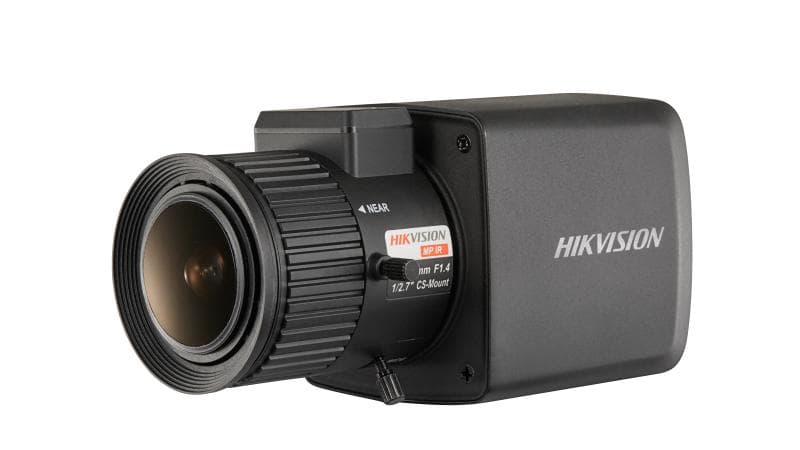

DS-2CC12D8T-AMM

General

Power	12 VDC ± 25%, max. 3 W
Material	Metal
Dimension	69.29 mm × 54 mm × 56 mm (2.73" × 2.13" × 2.2")
Operating Condition	-30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation)
Communication	HIKVISION-C
Language	English

Kamera

Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System	PAL/NTSC

Lens

Lens Mount	C/CS mount
Iris Type	DC drive


Image Settings	Brightness;Sharpness;Mirror;AGC
Frame Rate	PAL: 1080p@25fps NTSC: 1080p@30fps
Wide Dynamic Range (WDR)	≥120 dB
Image Enhancement	BLC
Privacy Mask	4 programmable privacy masks
Noise Reduction	3D DNR
White Balance	Auto/Manual

Interface

Video Output

1 HD analog output;1 CVBS output (75Ω/BNC)

Event

Motion Detection

4 programmable motion areas
