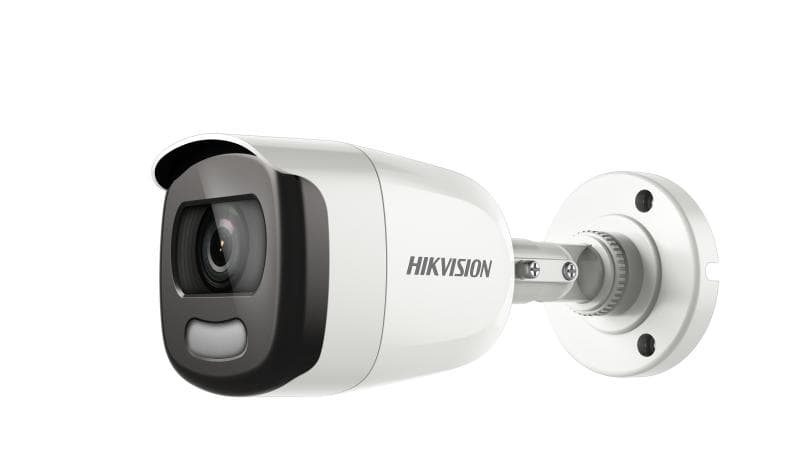

Hikvision
0,00 ₼
| Power | 12 VDC ± 25%, max. 3 W *You are recommended to use one power adapter to supply the power for one camera. |
| Material | Metal |
| Dimension | 181.4 mm × 70 mm × 68 mm (7.14" × 2.75" × 2.68") |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Language | English |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 Color Imaging |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Slow Shutter | Max. 16 times |
| Lens Type | 3.6 mm and 6 mm fixed focal lens |
| Focal Length & FOV | 3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7° |
| Lens Mount | M16 |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20 m |
| Smart Supplement Light | Yes |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness;Sharpness;Mirror;AGC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC;HLC |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| White Balance | Auto/Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS;1 HD analog output |
| Motion Detection | 4 programmable motion areas |
| Protection | IP67 |
