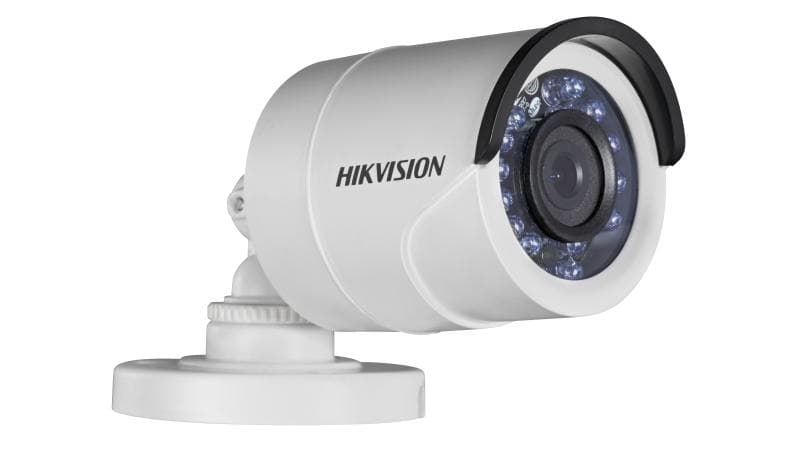

DS-2CE16C0T-IR

General

Power	12 V DC ± 15%, max. 4 W
Dimension	Φ70 mm × 149.5 mm (Φ2.76" × 5.89")
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Kamera

Image Sensor	1 MP CMOS
Max. Resolution	1296(H) ×732(V)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System	PAL/NTSC

Lens

Lens Type	2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV	70.9° (3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
Lens Mount	M12

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 20 m
Smart Supplement Light	Yes


Frame Rate	720p @ 25 fps/720p @ 30 fps
SNR	>62dB
Noise Reduction	2D DNR

Interface

Video Output

1 HD analog output

Approval

Protection

IP66
