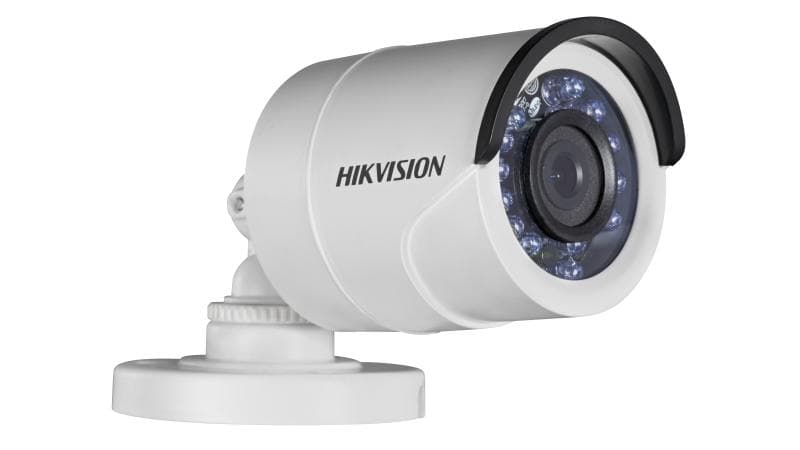

DS-2CE16C0T-IRF

General

Power	12 V DC±15%, max. 4 W
Dimension	Φ 70 mm × 154.5 mm ( 2.76" × 6.08")
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Kamera

Image Sensor	1 MP CMOS image sensor
Max. Resolution	1280 (H) × 720 (V)
Min. Illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System	PAL/NTSC

Lens

Lens Type	2.8 mm, 3.6 mm, 6 mm optional
Focal Length & FOV	Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount	M12

Illuminator

Supplement Light Type	IR
Supplement Light Range	Up to 20 m
Smart Supplement Light	Yes


Frame Rate	720p@25fps/720p@30fps
SNR	>62 dB

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

Approval

Protection

IP67
