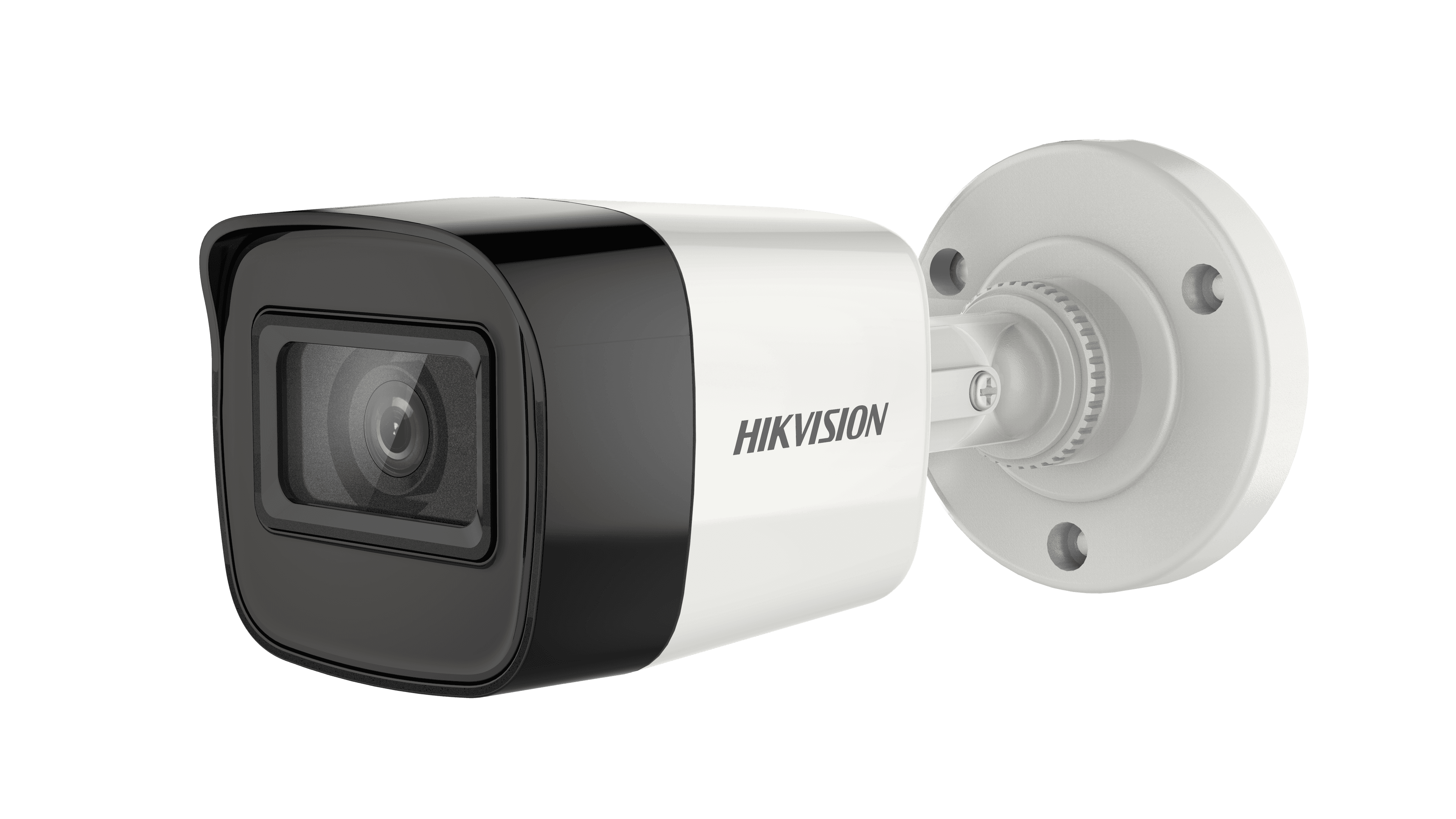

DS-2CE16H0T-ITF

General

Material	Metal
Dimension	58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Language	English
Power Supply	12 VDC ±25%
Consumption	Max. 4.3 W
IR Range	Up to 20 m

Kamera

Image Sensor	5 MP CMOS image sensor
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°

Lens

Lens Type	2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV	85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount	M12


Image Settings	Brightness, Sharpness, DNR , Mirror, Smart IR
Frame Rate	PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	DWDR
Image Enhancement	BLC
White Balance	ATW/MWB
AGC	Support

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Approval

Protection

IP67
