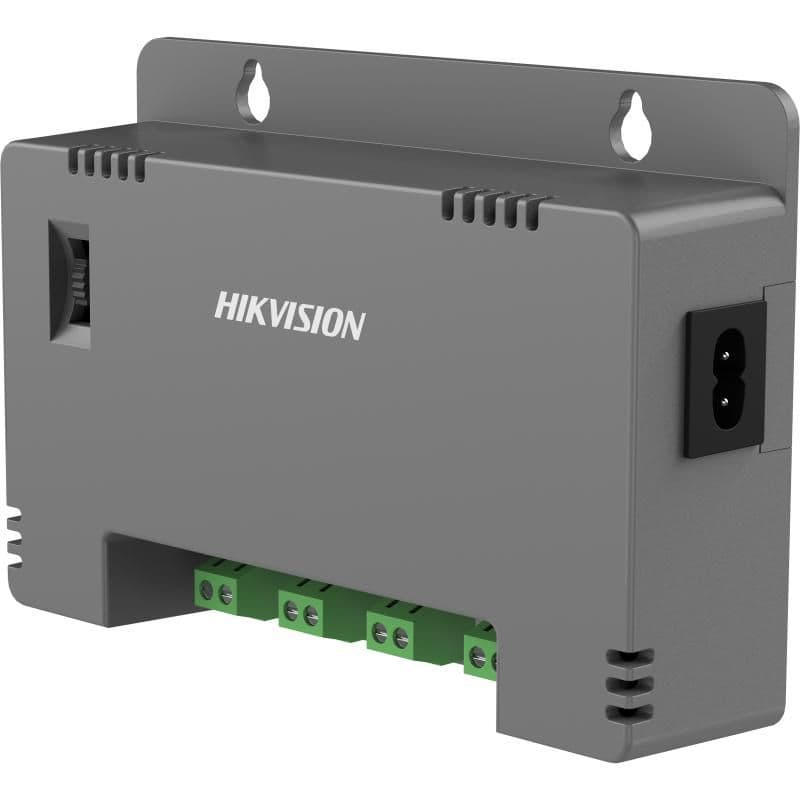

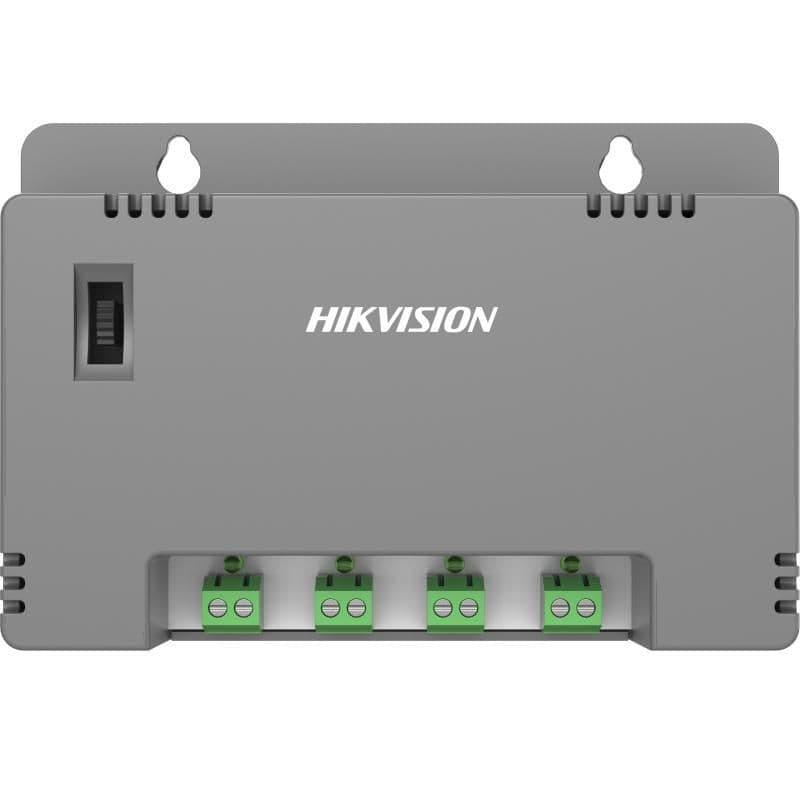

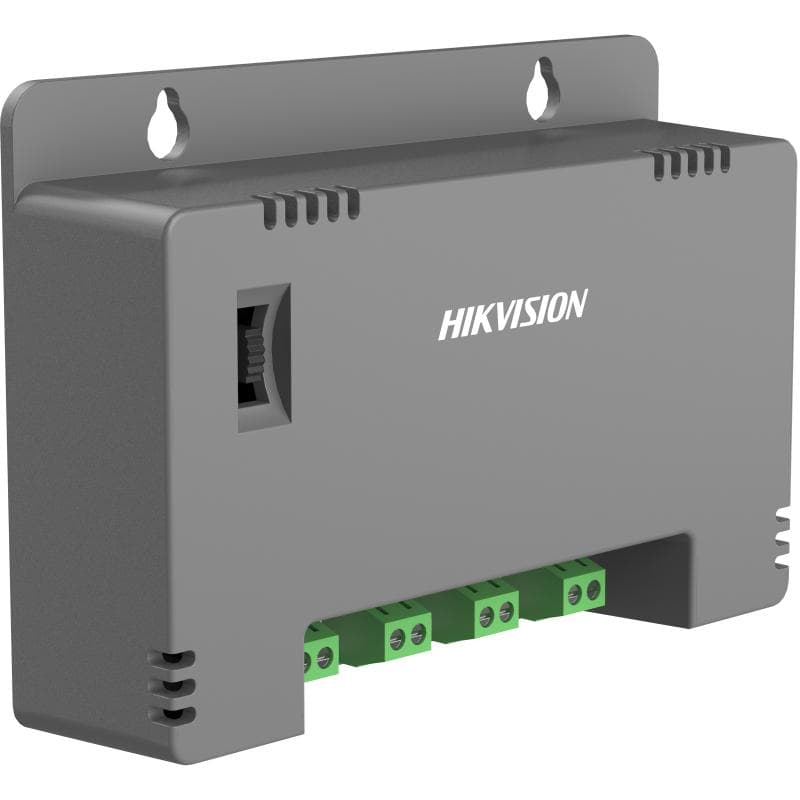

DS-2FA1225-D4(UK)

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Complies with certification standards of information technology products; good EMC performance
Compact size; applicable to cameras

Az qalıb

LED Indicator	Green
Dimension	130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")
Operating Conditions	0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Cable Length Compensation	Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
Appearance	Gray
Output	12 VDC/1 A per channel
Ripple & Noise 150 mVp-p	0.15 Vp-p (150 mV)
AC Input Connector	C8
DC Output Connector	DC Plug: grid terminal
Storage Conditions	-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Input	185 to 240 VAC, 50 Hz to 60 Hz
