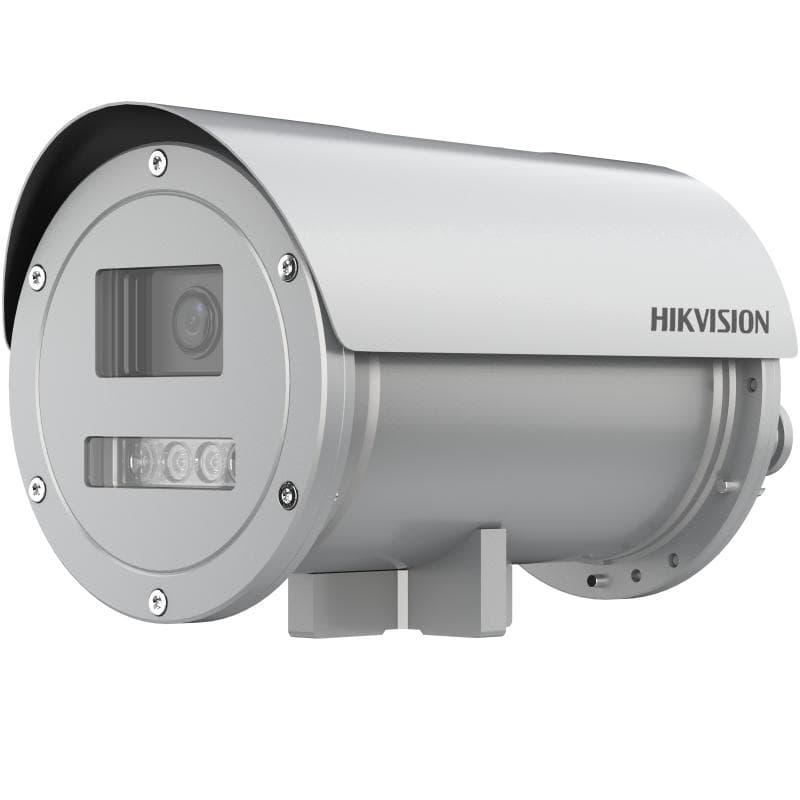

DS-2XE6845G0-IZHS(B)

FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)

CE: CE-EMC (EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019)

RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015

IC: IC-VoC (ICES-003 Issue 7: 2020)

UL: UL 62368-1, CAN/CSA C22.2 No. 60950-1-07: 2014

UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80 °C Ex db IIC T6 Gb X Ex tb IIIC T80 °C Db X

CB: IEC IEC 60079-0

CE: CE-LVD (EN 62368-1: 2014/A11: 2017)

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68

For explosive gas atmospheres, the maximum surface temperature is 85 °C;

For flammable dust atmospheres, the maximum surface temperature is 80 °C;

IIC: for explosive gas atmospheres other than mines susceptible to firedamp;

For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m

8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Detects up to 30 human targets simultaneously

Supports up to 4 shield regions

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle))

Scene change detection, audio exception detection, defocus detection

100 to 240 VAC, 0.4 A to 0.17A, max. 18 W, terminal block

PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W

2.8 to 12 mm: up to 60 m

8 to 32 mm: up to 100 m

1 RJ45 10 M/100 M self-adaptive Ethernet port

RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB

*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

1 input (line in), terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium

2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°

8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17°

2.8 to 12 mm: F1.4

8 to 32 mm: F1.7, constant F1.7 throughout the zoom range

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE10, IE11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+

Local service: Chrome 57.0+, Firefox 52.0+

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
