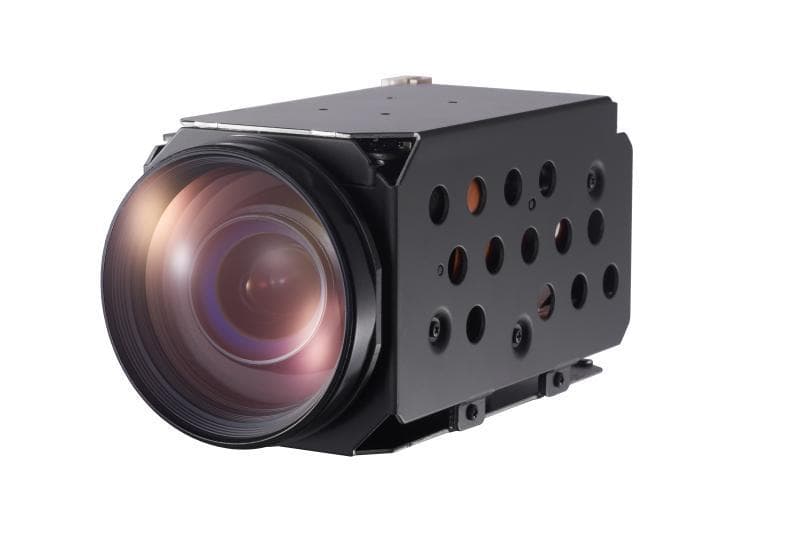

DS-2ZMN3007

Network

Network Storage	Supports microSD memory card
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)
Security Measures	Password Protection, Multiple User Access Control
Standard	ONVIF, PSIA, CGI, ISAPI
Outward Interface	36pin FFC (Including Network Interface, RS485, RS232, CVBS, SDHC, Alarm In/Out, Line In/Out, Power Supply)
Communication	RS232 Interface, HIKVISION Protocol, RS485 Interface, Pelco Protocol
Other	Double Streams, Heartbeat

Lens

Zoom Speed	Approx. 3s (Optical, Wide-Tele)
Working Distance	to 1500mm (Wide-Tele)
Aperture Range	F1.6 to F4.4
Angle of View	65.1° to 2.34° (Wide-Tele)
Focal Length	4.5mm to 135mm, 30× optical


Image Enhancement	Saturation, Brightness, Contrast, Sharpness adjustable, Image parameters can be configured via client software or web browser
Max. Resolution	50HZ: 25fps (1920×1080), 60HZ: 30fps (1920×1080),50HZ: 25fps (1280×960), 60HZ: 30fps (1280×960),50HZ: 25fps (1280×720), 60HZ: 30fps (1280×720)

Camera Module

DNR	3D DNR
Video Output	Network Encoding Output
Image Sensor	1/2.8" Progressive Scan CMOS
Model	DS-2ZMN3007(C), 30× 2MP 1/2.8″ COMS ICR Day/Night Network Zoom Camera Module
Min. Illumination	Color: 0.05Lux @ (F1.6, AGC ON),B/W: 0.01Lux @ (F1.6, AGC ON)
White Balance	Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
Gain	16 levels adjustable
S/N ratio	> 52dB (AGC OFF)
Shutter Time	1/1 sec to 1/30,000 sec
Day & Night	ICR filter， Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input
Digital Zoom	12×
Focus Mode	Auto/Manual/One Touch
WDR	ON/OFF
BLC	OFF, Left/Right, Up/Down or Center
Signal System	PAL/NSTC

Smart Features

Alarm Trigger

Motion Detection, Tampering Alarm, Storage Full, Storage Exception, Audio Exception Detection, Line Crossing Detection, Intrusion Detection

Function

Dead Pixel Compensation	Support
Lens Initialization	Internal
Exposure Mode	Auto/Aperture Priority/Shutter Priority/Manual
