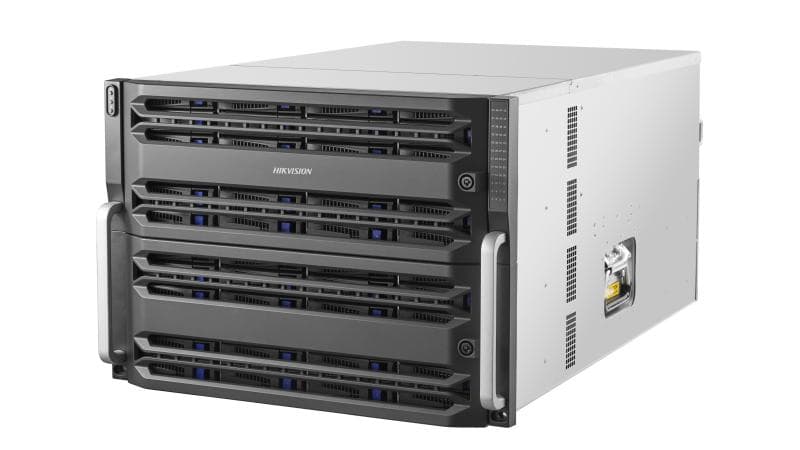

Hikvision
0,00 ₼
| Processor | 64-bit multi-core processors |
| Cache | 64 GB |
| Management mode | GUI based on web, serial port CLI, platform |
| Alarm mode | Audio, indicator, GUI |
| USB | 3 (2 × USB 3.0, 1 × USB 2.0) |
| Data network interface | 6, 1000M Ethernet interface (8 × GbE or 4 × 10GbE is extendable) |
| MiniSAS interface | 3, 12 Gbps SAS 3.0 interface |
| COM | 1 |
| Management network interface | 1, 1000M Ethernet interface |
| HDD Model | Hikvision,DS40HKAI-VX1,4T; Hikvision,DS60HKAI-VX1,6T; Hikvision,DS80HKAI-VX1,8T; Hikvision,DS100HKAI-VX1,10T; Hikvision,DS160HKAI-VX1,16T; Hikvision,DS200HKAI-VX1,20T; |
| Protocol | RTSP;ONVIF;PSIA |
| Standard cluster (2 Mbps) | 240-ch |
| Video performance | 240 |
| Picture performance | 160 |
| CVA | Device access, recording schedule, and stream forwarding services |
| CVS | Data storage, video/picture access, storage space, and data R/W services |
| Interface/capacity | SATA 4TB, 6TB,8TB,10TB,12TB,14TB,16TB,18TB,20TB |
| HDD slot | 48 |
| RAID | I RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4] |
| Cache protection | Supports customizing BBU in case of unexpected power failure to protect the cache data from being lost |
| Disk management | Disk detection pre-alarm and repair |
