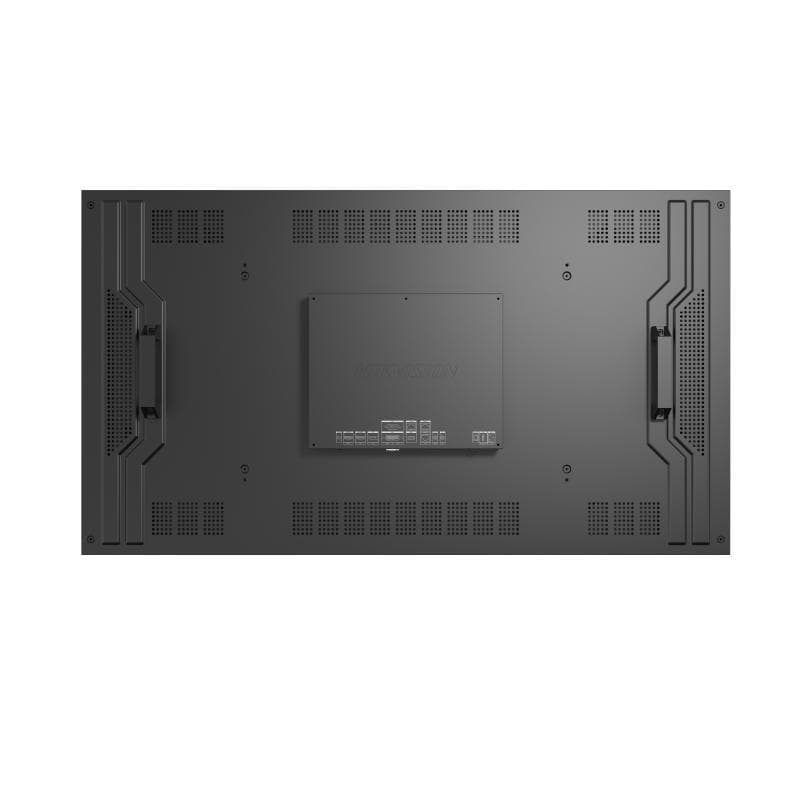

DS-D2055EL-0A

General

Casing Material	Metal
VESA	600 mm × 400 mm
Product Dimension (W × H × D)	1212.7 mm × 683.5 mm × 72.41 mm (47.74'' × 26.91'' × 2.85'')
Package Dimensions (W × H × D)	1308 mm × 834 mm × 221 mm (51.5 '' × 32.83 '' × 8.7 '')
Net Weight	24.0 ± 0.5 kg (52.9 ± 1.1 lb) for single display
Gross Weight	29.2 ± 0.5 kg (64.4 ± 1.1 lb) for carton with a single display
Packing List	Carton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1, LCD Maintenance Notice × 1

Interface

Video & Audio Input	VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
Video & Audio Output	HDMI × 1
Control Interface	RS232 IN × 1, RS232 OUT × 1

Display

Screen Size	55 inch
Active Display Area	1209.6 (H) mm × 680.4 (V) mm
Backlight	Direct-lit LED backlight
Pixel Pitch	0.63 mm
Physical Seam	1.7 mm
Physical Seam Tolerance	±1.5 mm
Physical Resolution	1920 × 1080
Brightness	500 cd/m²
Color Temperature	10,000 ± 1,000K
Viewing Angle	178°(H)/178°(V)
Color Depth	8 bit, 16.7 M
Contrast Ratio	1200:1
Response Time	8 ms
Color Gamut	72% NTSC
Surface Treatment	Haze25% ,2H

Power

Power Supply	100 to 240 VAC, 50/60 Hz
Power Consumption	≤ 245 W
Standby Consumption	≤ 0.5 W

Working Environment

Working Temperature	0°C~40°C
Working Humidity	20% RH to80% RH (without condensation)
Storage Temperature	-20°C~60°C
Storage Humidity	10% RH to90% RH (without condensation)

Key Material

LCD Technology

IPS
