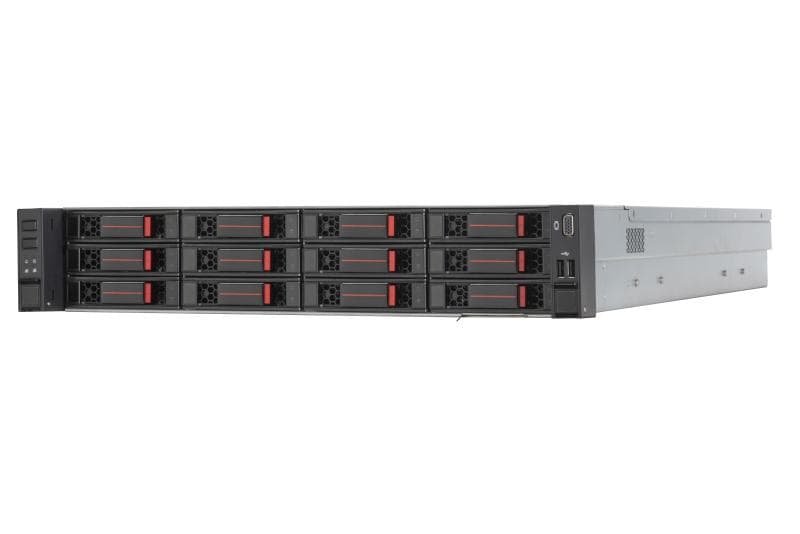

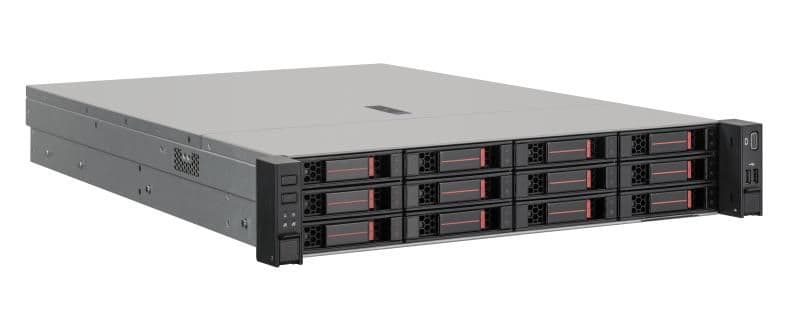

DS-IX2256-C1U/XP

0,00 ₼

Supports AcuSeek and AcuSearch functions, Achieving rapid target retrieval through the natural language description of the target object’s characteristics
Integrates analysis, storage and application as one, and applicable to various scenarios
Concurrent analysis of Max.256 channels of 1080P video stream for a single device
Up to 6,000,000 targets per day for AcuSeek
Up to 384 pieces per second for face modeling and compare, or up 192 pieces per second for human , or up to 150 pieces per second for vehicles
Provides Max. 60 million pieces of pictures and data capture storage for a single device
Performs various functions, including list alarm, personnel archive, personnel trace analysis, search by human body picture, and vehicle arming, etc. via web application interface
Supports cluster deployment to deal with balanced load, dynamic adding and failover
Supports adding Max. 5 devices under cluster mode

Az qalıb

WhatsApp ilə al

AcuSeek

AcuSeek Modeling Performance

2MP: 6,000,000 targets / day（80 targets/s）

5MP: 4,000,000 targets / day（50 targets/s）

8MP: 3,200,000 targets / day（40 targets/s）

Note: For scenarios involving multiple resolutions, performance can be scaled proportionally based on the above metrics.

AcuSeek Fine-Tuning Performance

20,000

Data Storage

Picture and Structured Data	60 million
Hot Data-Search by Picture Performance	18 million for AcuSeek and AcuSearch
Search by Face Picture-Response Time	18 million，2s
Search by Human Body Picture-Response Time	18 million，2s
Search by Vehicle Picture-Response Time	18 million，2s

Face Analysis

Data Type	Picture, Video
Face Attribute	Gender, Age Group, Wearing Glasses, Wearing Mask, Facial Expression
Analysis Type	Supports analysis, comparison and classification of faces in pictures, real-time videos or recordings.
Face Picture Analysis and Comparison	6 Engines, 64 pictures/s/engine
Video Frame Rate Requirement	12 to 30 frames per second
Face Video Analysis and Comparison	256 channels (2 MP) 128 channels (＞2 MP to 5 MP) 64 channels (＞5 MP to 8 MP)
Concurrent Performance-1 V 1 Comparison	64 pairs per second
Face Picture Requirement	Face analysis target: Resolution: 48 × 48 to 8000 × 8000 (64 MP) Size: ≤ 10 MB Pupil distance: 20 to 300 pixels recommended Face angle deviation: Face analysis: ≤ 35° (vertical); ≤55° (horizontal) Face picture of list library: ≤ 25° (vertical); ≤30° (horizontal)
Max. List Libraries	3 million
Max. Arming Lists	128
Facial Video Format	Resolution: 720 P to 8 MP Real-time video stream: H.264, H.265 Local recording: H.264, H.265
Face Picture Format	JPEG(JPG), TIF, BMP, PNG, GIF(static diagram) size ≤10MB
Picture Resolution	Face analysis target: 48 × 48 to 8000 × 8000 (64 MP), Size: ≤ 10 MB Pupil distance: 20 to 300 pixels recommended Face angle deviation: Face analysis: ≤ 35° (vertical); ≤55° (horizontal) Face picture of list library: ≤ 25° (vertical); ≤30° (horizontal)
Imported Video Analysis	Single video size ≤ 10 GB, and total video size ≤ 1000 GB Max. 40 times accelerated analysis speed Format: TS, DaHua es, SVAC, MBF, PS, MP4, AVI, ASF, HIK es, Tian Di es

Hardware Specifications

CPU	Hygon 7360 x 2
HDD Specifications	240 GB SSD x 2(Raid 1) + 480 GB SSD × 1 + 4 TB SATA × 1 + 8 TB SATA × 4(RAID5)

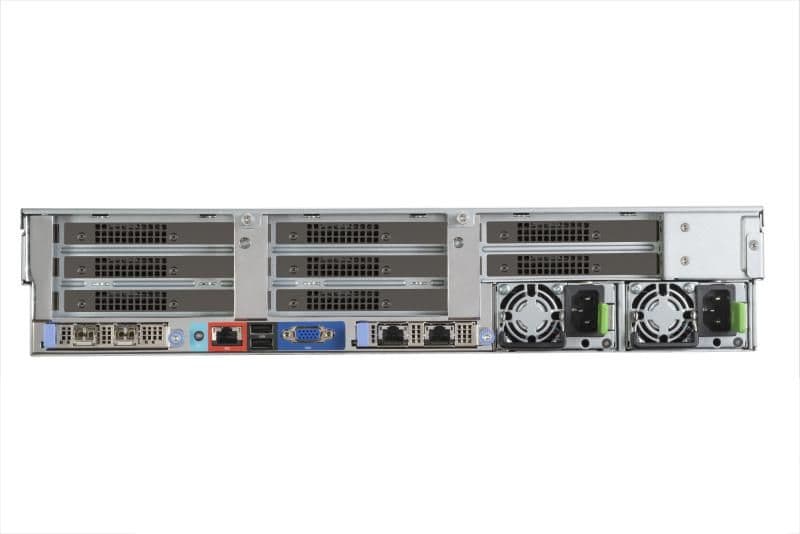

External Interfaces	USB 2.0 × 2 + USB 3.0 × 2 + VGA × 1
GPU	HIKVISION H12 Card × 2 NVIDIA L2 x 5
Memory	128G DDR4(16GB x 8)
Device Dimensions	835 mm × 446.6 mm × 87.5 mm (32.9 inch × 17.6 inch × 3.44 inch)
Fan	4
Package Dimensions	965 mm × 670 mm × 320 mm (38.0 inch × 29.4 inch × 12.6 inch)
Max. Power Consumption	1200 W
Network Interfaces	2 × 1Gb RJ45 + 2 × 10Gb SFP+
Rated Power Consumption	890 W
PSU	Hot-plugged efficient 1+1 redundant power module
Security	TPM chip

Intelligent Analysis Capability

Analysis Type

AcuSeek，Face Analysis, Video Structuralization, Face clustering

HMS-Capture

256 channels (2 MP)

128 channels (＞2 MP to 5 MP)

64 channels (＞5 MP to 8 MP)

Engine

6, each engine can run an intelligent algorithm: Face Analysis, Video Structuralization,

To use AcuSeek funciton, one engine must be enabled for Video Structuralization

Physical and Environmental Parameters

Storage and Transportation Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Gross Weight (With Package)	33.76 kg (74.42 lb.)
Storage and Transportation Humidity	5% to 90% (without condensation)
Working Temperature	5 °C to 35 °C (41 °F to 95 °F)
Working Humidity	10% to 90% (without condensation)
Net Weight (Without Package)	30.0kg (66 lb.)

Text-Defined Alert

Performance	60-ch
Text-Defined Groups	1000

Video Structuralization

Analysis Type	Supports analysis and modelling for human bodies or vehicles in pictures, real-time videos or recordings
Video Format	Resolution: 720 P to 8 MP Real-time video stream: H.264, H.265
Video Frame Rate Requirement	12 to 30 frames per second (25 frames per second recommended)
Human Body Attribute	Age Group, Gender, Wearing Glasses, Carrying Backpack, Wearing Hat, Wearing Mask, Hairstyle, Tops Type, Tops Color, Bottoms Type, Riding Status, Carrying Objects
Vehicle Attribute	Vehicle color, vehicle type, vehicle main brand, license plate number
Analysis of Human Body and Vehicle Videos	256 channels (2 MP) 128 channels (＞2 MP to 5 MP) 64 channels (＞5 MP to 8 MP)
Imported Video Analysis	Single video size ≤ 10 GB, and total video size ≤ 1000 GB Max. 40 times accelerated analysis speed Format: TS, DaHua es, SVAC, MBF, PS, MP4, AVI, ASF, HIK es, Tian Di es
Analysis of Human Body and Vehicle Pictures	6 Engines, each Engine support: Human: 2MP: 32 pictures/s 5MP: 20 pictures/s 8MP: 12 pictures/s Vehicle： 2MP: 25 pictures/s 5MP: 16 pictures/s 8MP: 12 pictures/s
Human Body Picture Requirement	Resolution: 256 × 256 to 8000 × 8000 (64 MP) Human body width: 70 to 300 pixels recommended Completeness: the blocking area should be less than 30 percent of the target Angle deviation: the depression angle should be no greater than 44°
