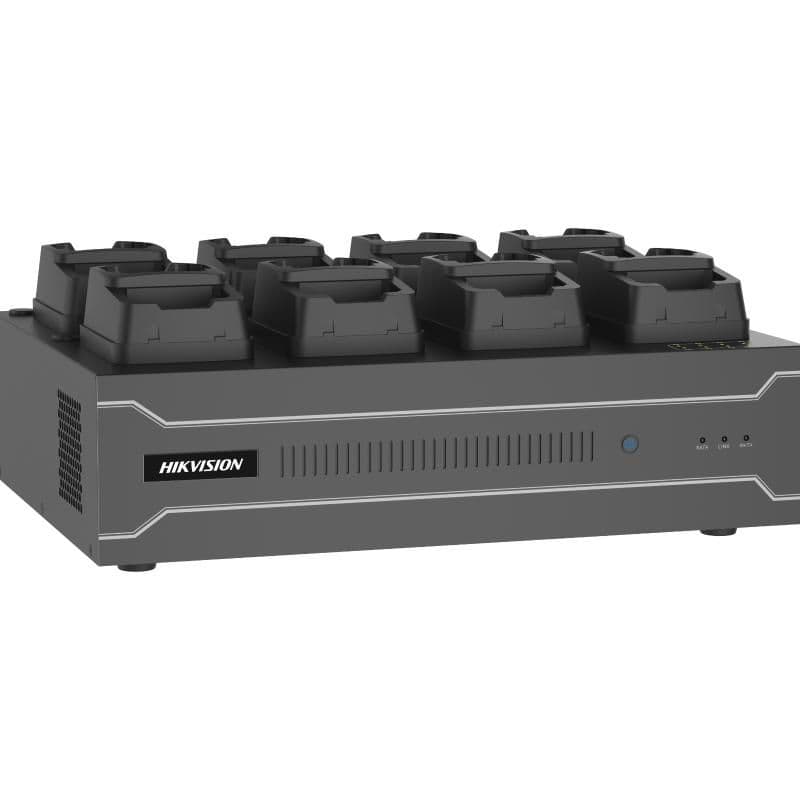

DS-MDS001(B)

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

1000 M dual network interface
Collects data from multiple body cameras.
Charges, uploads data, and cleans the storage space automatically.
Prevents data loss via ANR (Automatic Network Replenishment).
Cyclic covering: Files will be covered automatically according to the storage timeline when there is no enough space.
Reads time, date, product No., etc. of the body camera automatically.
Plays videos, audios, and images.
Log management.

Az qalıb

Protocol

HTTPS, FTP, NTP, SADP, ISAPI

Client	HikCentral Pro,HikCentral Master
Speaker	1 build-in speaker
Web Browser	Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Operating System	Linux
Power	100 to 240 VAC, max. 250 W
Operating Condition	-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
Dimensions	400 mm × 300 mm × 124 mm (15.75" × 11.81" × 4.88")
Installation Method	Desk-mounted

Indicator	Power indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception
Button	Power
General Interface	1 × USB 3.0,2 × USB 2.0,HDMI
Body Camera Access Number	Up to 8 body camera(s)
Base Paramaters	5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s

EMC	CE-EMC: EN 55032: 2015,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014,EN 61000-3-2: 2014
Safety	CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11

RAM	1 GB
HDD	Up to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB
