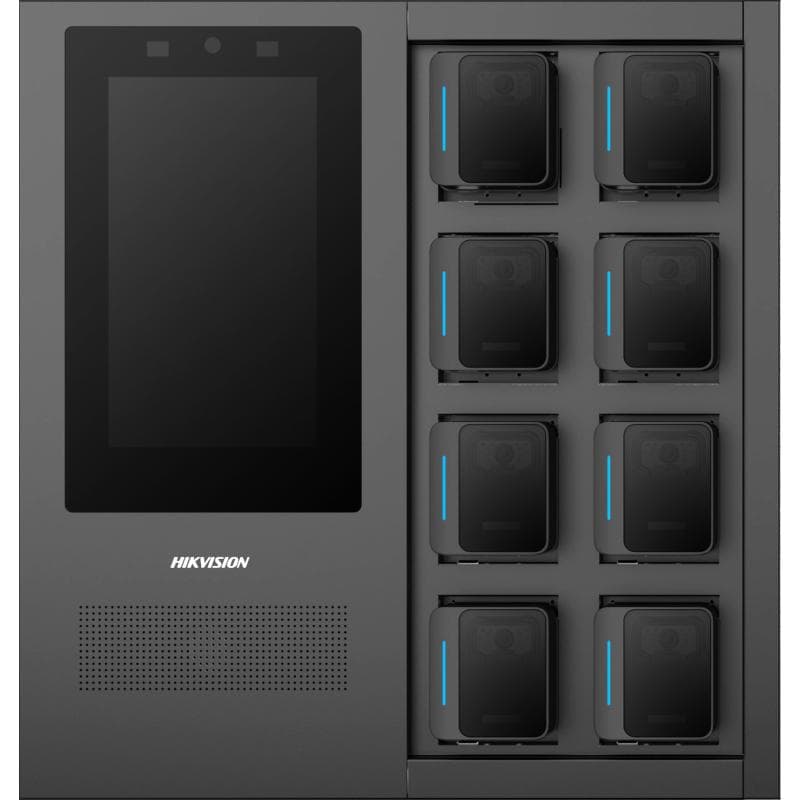

Hikvision

DS-MDS003

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

Dual system design which is highly stable. Supports wall mount, mobile mount, and desktop mount.
13.3-inch ultra-large touchscreen with 1920 × 1080 resolution and convenient operation.
Unlocks body camera bin by recognizing face to guarantee safe device storage.
Equipped with eight body camera bins in standard. Four dock stations can be connected. Each dock station is equipped with eight body camera bins. Up to 32 body cameras can be connected simultaneously. Supports auto charging.
Two standard USB interfaces provided. One is used to connect to a mouse or keyboard for software operation, or connect to a USB flash disk to upgrade the dock station. The other one is reserved.
Supports six hard disks. Standard 2 TB storage capacity. Up to 8 TB for each disk. RAID0, RAID1, and RAID5 can be customized.
Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
Locks important data of body camera to avoid being deleted.
Supports data protection in sudden power cutoff.
Log management to record all the operation logs.
Overwritten storage to overwrite the collected data according to the collection sequence when the storage is full.
ANR for data uploading to prevent data loss.
Supports file search in multiple modes, and video, audio, and picture playback.
Local upgrade.
Multi-user management. Multi-users can be associated with one dock station.
Files can be uploaded to CVR and cloud storage.

Az qalıb

Protocol

HTTPS, FTP, NTP, SADP, ISAPI

Client	HikCentral Pro,HikCentral Master
Dimensions	635 mm × 604.6 mm × 108.7 mm (25" × 23.8" × 4.3")
Installation Method	Desk-mounted,Wall-mounted,Movable bracket
Operating Condition	-10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
Operating System	Linux, Android 5.1.1
Power	100 to 240 VAC, max. 500 W
Storage Condition	-25 °C to 50 °C (-13 °F to 122 °F). Humidity 95% or less (non-condensing)
Web Browser	Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Base Paramaters	5 VDC, 1.5 A for each channel, rate ≥ 5 MB/s
Body Camera Access Number	Up to 32 body camera(s)
Button	Power
General Interface	1 × RJ45,1 × RS-232,1 × USB 2.0,1 × USB 3.0
Indicator	2 indicator(s) for charging/working/recording/exception

HDD	Up to 6 disk(s) (Max. 8 TB for each disk) and default 1*2 TB
RAM	2 GB
