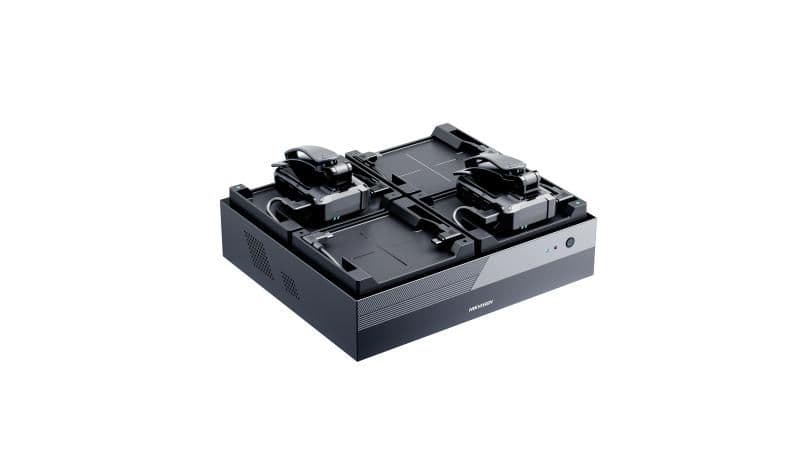

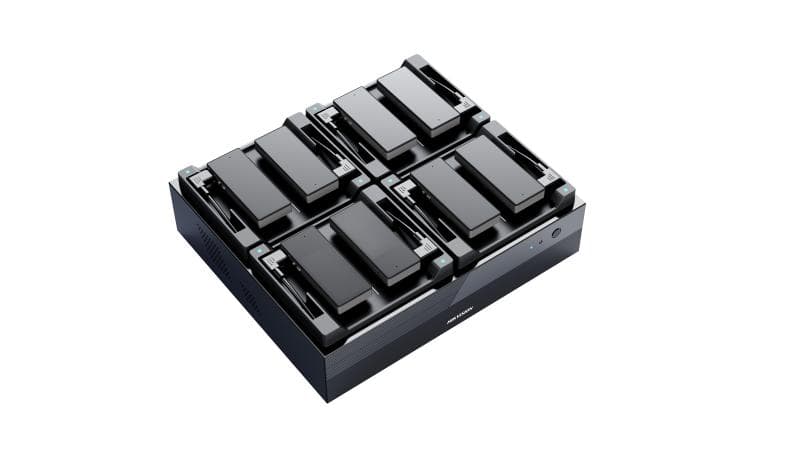

DS-MDS004

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

Small size and easy to place. Fan-free and silent design.
Supports accessing to 8 nameplate cameras simultaneously and auto charging of the nameplate camera.
Adopts the web client to display data collection and parameters configuration.
Supports auto uploading of the nameplate camera data, and clearing the storage space of the nameplate camera automatically.
Data overwriting: The collected data will be overwritten according to the collection order when the storage is full.
ANR (Automatically Network Replenishment) for data uploading to prevent data loss.
Supports searching files by multiple methods. Supports playing videos, audios, and images.

Az qalıb

Protocol	HTTPS, RTSP, NTP, FTP
API	ISAPI, ISUP

Operating Condition	-10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
Operating System	Linux
Web Browser	Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Client	HikCentral Pro, HikCentral Master
Speaker	1 Built-in speaker, Max. power consumption: 5.5 W, Max. sound pressure level: 79dB (11 cm)
Installation Method	Desk-Mounted
Power	12 VDC, 10.0 A, max. 120 W
Dimension	265 mm × 230 mm × 60 mm (10.43" × 9.06" × 2.36")

Body Camera	Up to 8 body cameras or 8 nameplate cameras
Indicator	1 power indicator, 1 hard disk indicator, 1 network indicator, 8 status indicators (for charging and data transmission status)
Button	Power
Ethernet	2 RJ45 10M/100M/1000M self-adaptive ethernet port(s)
USB	USB 2.0
Charging Interface	Type-C
Base	5 VDC, 1.5 A for each channel, backup speed ≥ 8 MB/s
General	1 RS-232, 1 power supply
HDMI	x1

EMC

CE-EMC: EN 55032: 2015+A1: 2020, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014

Safety

CB: IEC 62368-1: 2014

CE-LVD: EN 62368-1: 2014+A11: 2017

Environment

CE-RoHS: 2011/65/EU

HDD	Up to 2 disks (Max. 8 TB for each disk) and default 2 TB
RAM	1 GB
