Hikvision

DS-MP1301(AE)

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

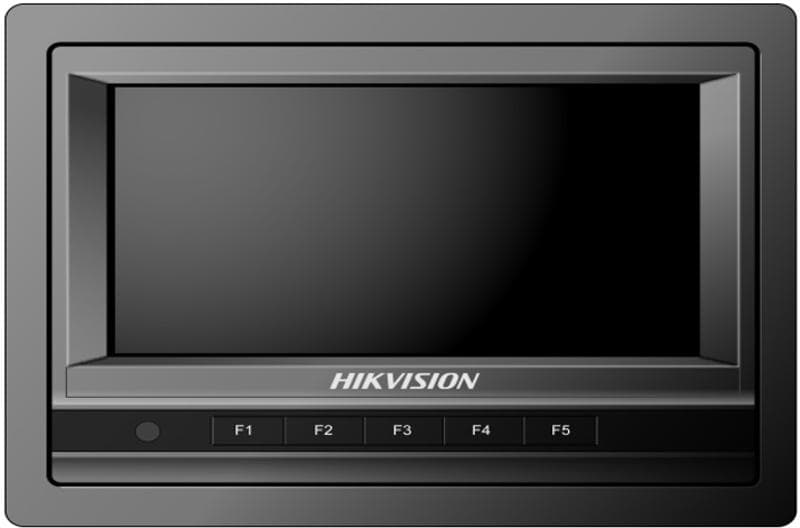

Supports 7-inch TFT LCD screen for live view and operation
Real-time live view of the rear-view camera when the vehicle is backing off and other connected camera
Support 3-ch video input including one channel connecting to the mobile DVR, one channel connecting to the rear-view camera and one reserved channel connecting to the other camera
Support 2-ch alarm input

Az qalıb

Nominal voltage	DC12V
Working temperature	-20° C to +70° C (-4° F to +158° F)
Working humidity	10% to 95%
Operation mode	Key
Trigger mode	Key/Alarm Line
Screen size	7" TFT-LCD
Resolution	800 × 480 RGB
Brightness Auto-adjust	Yes
Signal format	CVBS PAL/NTSC
Backlight Mode	LED
Modulation	Embedded mounting;Bracket mounting
Application	It is suitable for bus, school bus, taxi and other vehicle monitoring scenarios
Dimension	181.5mm x 140mm x 58.5mm

Input interface definition

1-ch. Four-pin aviation male plug, connecting to the mobile DVR.

1-ch. Four-pin aviation male plug, connecting to the rear-view camera.

1-ch (reserved). Four-pin aviation male plug, connecting to the other camera.
