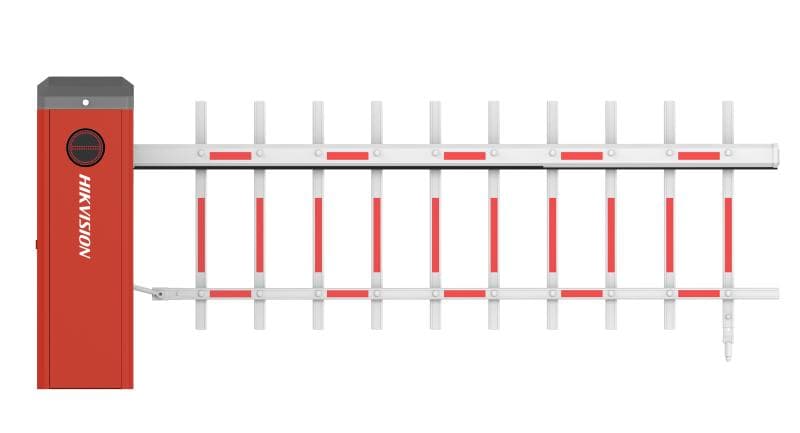

Hikvision

DS-TMG523/B

Name: REPAIRAZ MMC
Address: Qurban Abbasov 29, Bakı, AZ
Telephone: +994773394100

0,00 ₼

DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.
The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.
High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.
Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.
Multiple anti-hitting modes via induction, IR, pressure wave, etc.
Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.
Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
Intergated with arrow indicator to show barrier gate status

Az qalıb

Rising to Limit	1 group
Falling to Limit	1 group
Open	1 group
Close	1 group
Stop	1 group
IR/Inductive Loop/Radar	1 group
RS-485	1 group
Traffic Signal Light	1 group, external power supply required, max. 220 VAC supported
LED Indicators	1 group
Network	1 group (reserved)

Duty Cycle

100%

Matched Boom Pole Type	Fence Pole: 4m
Rising/Falling Speed	Barrier Boom: 4m fence pole Rising Speed: 4 S Falling Speed: 5 S
Boom Pole Direction	left;right
Boom Pole Falling Delay	10 s by default (configurable), min. 10 s (every 10 s followed a gap)
Motor Type	DC brushless motor
Number of Cycles	5000000
Working Voltage	220 VAC
Remote Controller Frequency	433 MHz
Current	Max. 1.5 A
Consumption	300 W
Temperature and Humidity	Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Rising Boom Pole for Poweroff	Optional, not supported by default

Barrier Housing Material	SGCC
Barrier Housing Thickness	2.0 mm
Barrier Housing Door Thickness	1.5 mm
Barrier Housing Color	Orange red
Boom Pole Installation Height	880 mm
Body Indicators	Arrow Indictor

Boom Pole Type	Fence Pole
Boom Pole Material	AL6061
Boom Pole Color	White background with red bar

Barrier Housing Dimensions (L × W × H)	1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch)
Body Weight	59.3 ± 5 kg (130.7 ± 11.0 lb.)
Body Dimensions (with Package, Without Boom Pole) (L × W × H)	1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)
