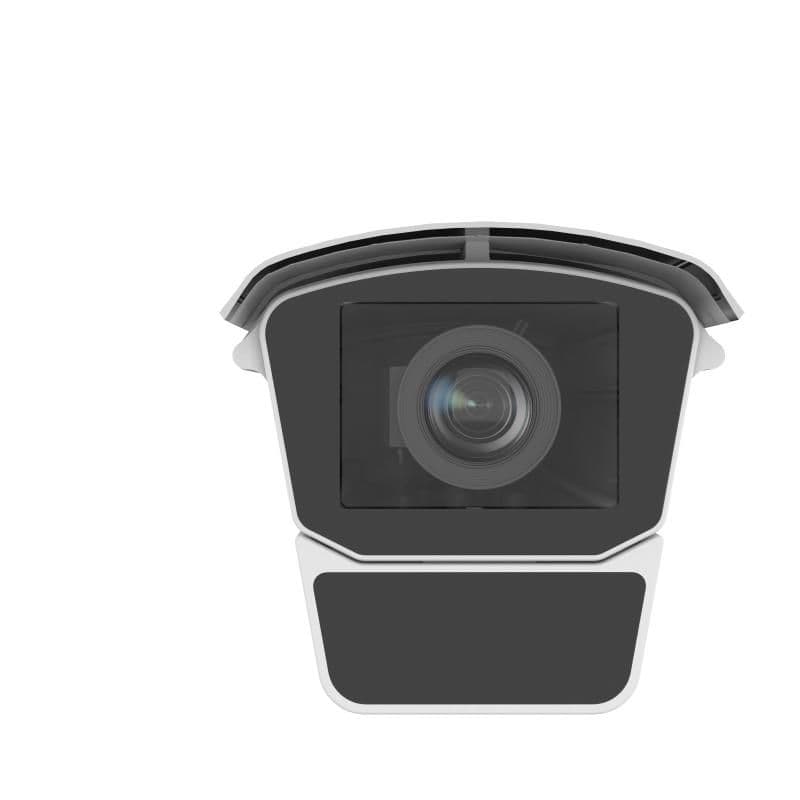

iDS-2CD70166G2/E-IHSYR

Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021.

RCM: AS/NZS CISPR 32: 2015,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Wide:

3.8 to 16 mm: Overview: 133.5 m, Outline: 66.8 m, Discern: 33.4 m, Perceive: 21.4 m, Characterize: 10.7 m, Validate: 5.3 m, Scrutinize: 1.8 m

11 to 40 mm: Overview: 387.1 m, Outline: 193.5 m, Discern: 96.8 m, Perceive: 61.9 m, Characterize: 31.0 m, Validate: 15.5 m, Scrutinize: 5.2 m

Tele:

3.8 to 16 mm: Overview: 482.9 m, Outline: 241.5 m, Discern: 120.7 m, Perceive: 77.3 m, Characterize: 38.6 m, Validate: 19.3 m, Scrutinize: 6.4 m

11 to 40 mm: Overview: 1193.5 m, Outline: 596.8 m, Discern: 298.4 m, Perceive: 191.0 m, Characterize: 95.5 m, Validate: 47.7 m, Scrutinize: 15.9 m

The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Supports dynamic mosaic mask,

Supports ShotN technology,

Supports simultaneous detection and capture of human body, face, and vehicle,

Gets 7 face features,

Gets 13 human body features,

Gets 2 vehicle features,

Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

Detects up to 60 faces simultaneously, captures up to 60 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°,

Uploads face with background and closed-up face pictures,

Supports best shot and quick shot for capture mode,

Supports dynamic mosaic mask,

Gets 7 face features

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

Supports face library encryption

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering

Supports Multi-Dimension People Counting,

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle,

Supports generating daily, weekly, monthly or annually reports,

Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

Supports face feature deduplication,

Supports people flow data replenishment

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

Detects up to 30 human targets simultaneously

Supports up to 4 shield regions

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

Supports searching real-time number of people

People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: absence detection, on/off duty detection

Supports parameter settings: person on duty, absence duration

Detects hard hat and reflective clothing, triggering alarm when not worn.

Detects people not wearing hard hat. Supported hat colors: red, orange, yellow, blue, white, and others.

24 VDC ± 20%, 1.09 A, max. 26.1 W

24 VAC ± 20%, 1.74 A, max. 27 W

PoE: IEEE 802.3bt, Type3, Class 5, 42.5 V to 57 V, 0.75 A to 0.56 A, max. 31.5W

Memory: 150 MB,

Smart RAM: 2200 MB,

eMMC: 1288 MB

3.8 to 16 mm: 80 m

11 to 40 mm: 120 m

3.8 to 16 mm, horizontal FOV 99.6°~27°, vertical FOV 74.4°~20.3°, diagonal FOV 124.4°~33.7°

11 to 40 mm, horizontal FOV 35.2°~11°, vertical FOV 25.9°~8.3°, diagonal FOV 45.2°~13.8°

3.8 to 16 mm: F1.6 to F3.4

11 to 40 mm: F1.6

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Monitoring mode:

50 Hz: up to 50 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080)

60 Hz: up to 60 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080)

50 Hz: 25 fps (4000 × 3000,4608 × 2592)

60 Hz: 30 fps (4000 × 3000,4608 × 2592)

*High frame rate is supported under monitoring mode only.

smart mode:

50 Hz: 25 fps (4608 × 3456，4000 × 3000，3840 × 2160, 3072 × 1728,，2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (4608 × 3456，4000 × 3000，3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 24 fps (1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080，1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30fps (1920 × 1080，1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 24 fps (1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 24 fps (1280 × 720, 704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
