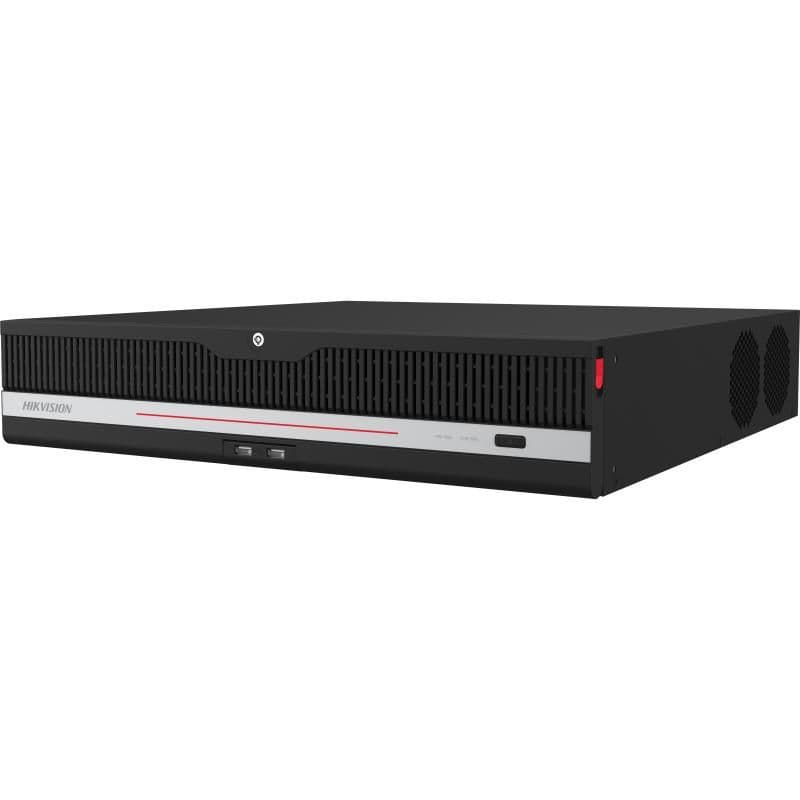

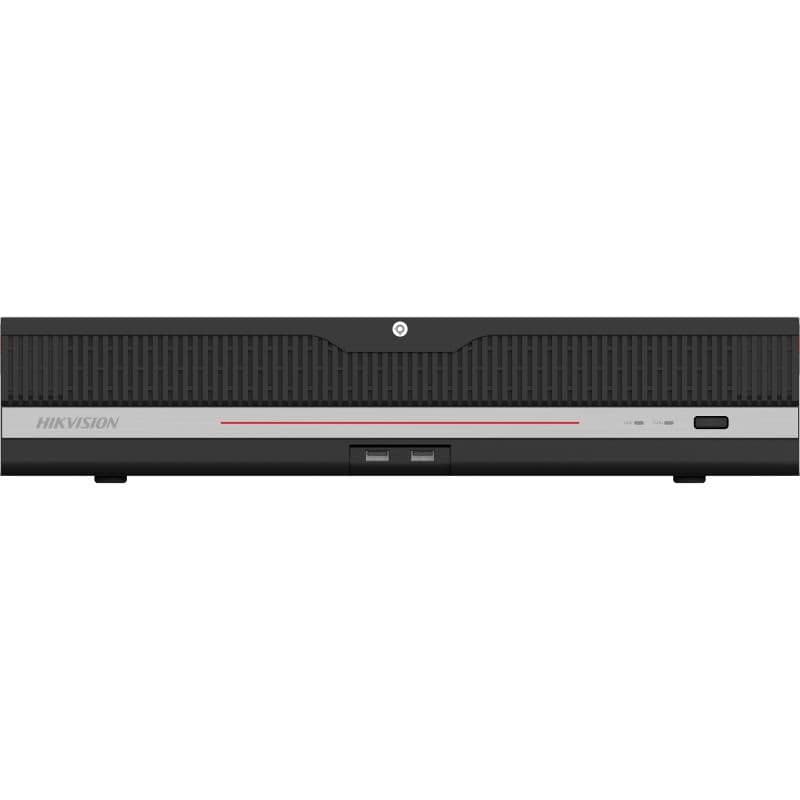

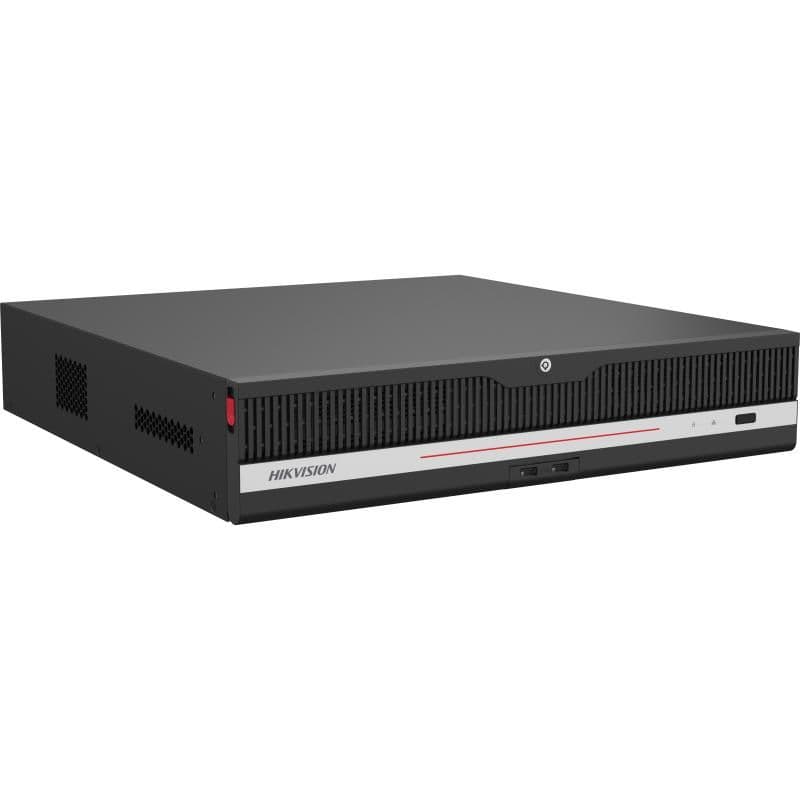

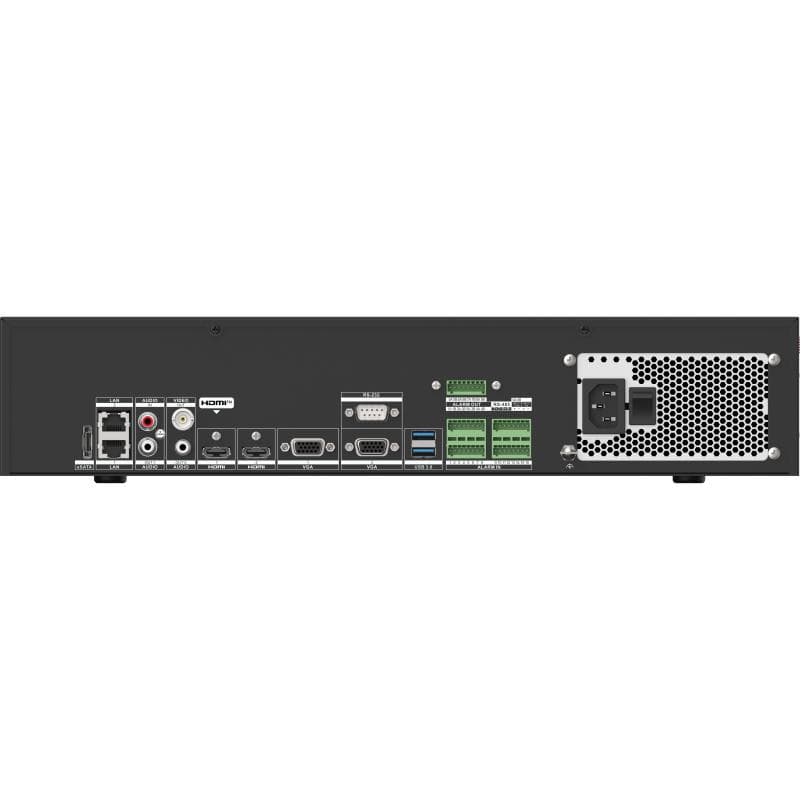

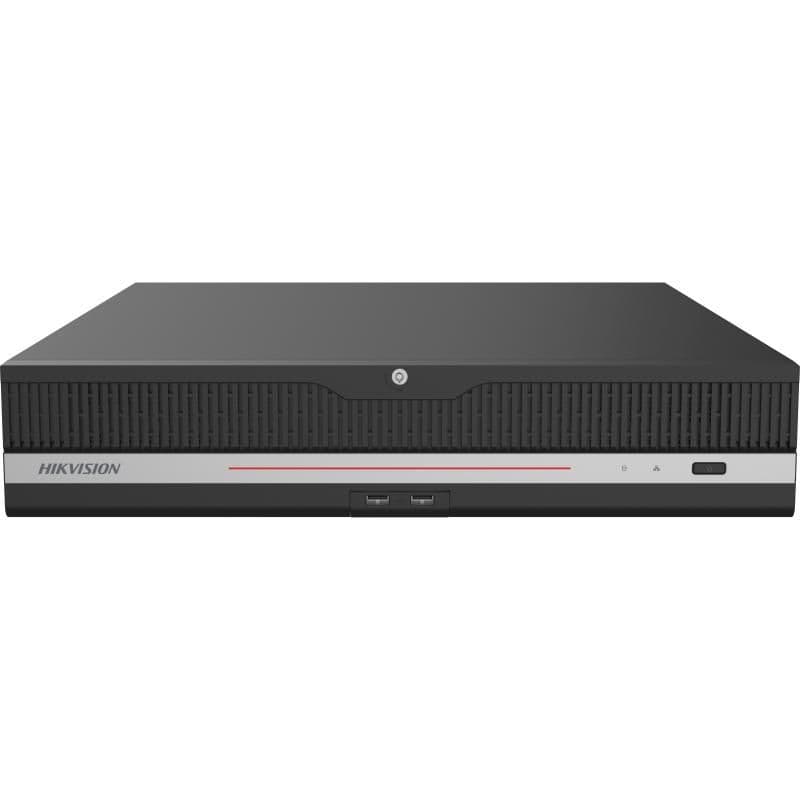

iDS-9632NXI-M8/AI(B)

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Pre-installed AI Algorithm Package

Human (3 Algorithm models )

1. Facial recognition:

2. People counting: regional people counting, people counting statistics

3. PPE: safety helmets and reflective vests detection

Vehicle (2 Algorithm models )

1. Vehicle attributes: vehicle brand,vehicle color, vehicle type

2. Non-motorized vehicle detection: motorcycle, bicycles

Dangerous Event (2 Algorithm models )

1. Fire and smoke detection

2. Occupation of fire escape

Behavior (3 Algorithm models )

1. Street level behavior : falling down detection, people gathering detection, fast

moving detection, physical conflict detection

2. Indoor: playing phone, sleeping on duty, absence, number of people allowed, overstaying detection

3. Perimeter: intrusion detection, line crossing detection, region entrance detection,

region exiting detection

4. Smoke detection, call detection

AIOP (Up to 16 models)

Model type: detection model, classification model, mixed model (detection model and

classification model)

1 engines in total, One engine can support four algorithm models;

each algorithm model supports one real-time video stream analysis or a maximum of 8

auto-switch video analyses (switch time between 10 to 3600 seconds)

HDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
