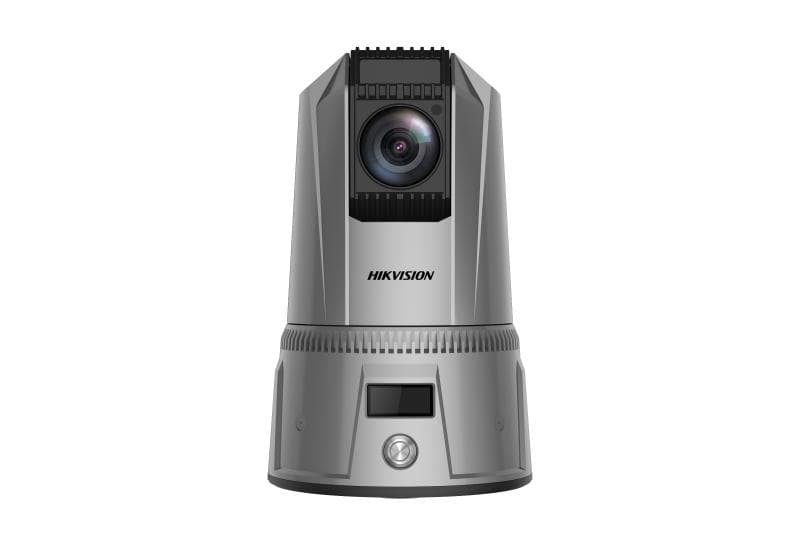

Hikvision
0,00 ₼
| Protocol | HTTPS, RTSP, NTP, FTP |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
| Operating Condition | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Operating System | Linux |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Speaker | 1 built-in speaker |
| Client | Hik-Connect, HikCentral Pro, HikCentral Master |
| Power | 12 VDC, 10W when 4G, Wi-Fi, Bluetooth and PTZ rotating are off |
| Dimensions | 159.7 mm × 165.3 mm × 261.1 mm (6.3" × 6.5" × 10.3") |
| Installation Method | Wall-mounted,Tripod-mounted |
| Packing List | 1× AC power cable, 1 × adapter, 1× Lithium-ion battery, 1 ×safety rope, 1×screwdriver, 1× 10-core main aviation cable |
| Image Sensor | 1/2.8 progressive scan CMOS" |
| Zoom | 30 × optical, 12 × digital |
| Max. Recording Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.05 Lux@(F1.6, AGC ON), Black: 0.01 Lux@(F1.6, AGC ON) |
| Day & Night | Switch IR cut filter automatically |
| Focal Length | 4.5 to 135 mm vari-focal lens |
| Aperture | F1.6 to F4.4 |
| FOV | Horizontal FOV: 60.5°, Vertical FOV: 36° |
| Video Compression | H.264,H.265,MJPEG |
| Video Format | PS |
| Main Stream | 50 Hz: 25 fps(1920×1080, 1280×720, 704×576, 704×288, 352×288), 60 Hz: 30 fps(1920×1080, 1280×720, 704×576, 704×288, 352×288) |
| Sub-Stream | 50 Hz: 25 fps(1280×720, 704×576, 704×288, 352×288), 60 Hz: 30 fps(1280×720, 704×576, 704×288, 352×288) |
| Indicator | 1 indicator(s) for charging/working/recording/exception |
| Button | Power |
| SIM Card | 1 Micro-SIM card slot |
| Ethernet | 1 RJ45 Ethernet port |
| Aviation Plug | 10-Core Aviation Plug, supporting RS-232, RJ45 and power input, 9-Core Aviation Plug, supporting RS-485, LINE IN/LINE OUT, 5V output, Alarm I/O |
| Audio | 2 built-in mic(s),1 speaker(s) |
| General Interface | 10-Core Aviation Plug, supporting RS-232, RJ45 and power input 9-Core Aviation Plug, supporting RS-485, LINE IN/LINE OUT, 5V output, Alarm I/O |
| Smart Event | Vehicle license plate recognition, face capture |
| License Plate Recognition | Supported |
| RF | CE-RED: EN 301 489-1 V2.2.3: 2019; EN 301 489-3 V2.2.2: 2019; EN 301 489-17 V3.2.4: 2020; EN 301 489-19 V2.2.1: 2022; EN 301 489-52 V1.2.1: 2021; EN 55032: 2015/A11: 2020; EN 55035: 2017/A11: 2020; EN 50130-4: 2011/A1: 2014; EN IEC 61000-3-2: 2019/A1: 2021; EN 61000-3-3: 2013/A2: 2021; EN 300 328 V2.2.2: 2019; EN 301 893 V2.1.1.1: 2017; EN 301 440 V2.1.1: 2017; EN 301 908-1 V15.1.1: 2021; EN 301 908-2 V13.1.1: 2020; EN 301 908-13 V13.2.1: 2022; EN 303 413 V1.2.1: 2021; EN 62479: 2010; EN 50663: 2017; EN 50385: 2017; EN IEC 62311: 2020; EN 62311: 2008; EN 62368-1: 2014/A11: 2017 |
| EMC | CE-EMC: EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN 50130-4:2011 +A1:2014 |
| Safety | CB: IEC 62368-1:2018 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP66: IEC 60529-2013 |
| IR Range | Up to 100 m |
| IR Wavelength | 940 nm |
| Battery Type | Lithium-ion battery, dismountable |
| Capacity | 13400 mAh |
| Charging Time | ≤ 4 h |
| Battery Life | Up to 9h in 1080P resolution¹ |
| Preset | 256 arming locations |
| Pan | 360° endless |
| Tilt | -20° to 90° (Auto-flip) |
| Screen Type | LCD |
| Touchscreen | Not supported |
| Positioning Mode | GPS |
| Wi-Fi Frequency Band | 2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz |
| Wi-Fi Protocol | 802.11 b/g/n/ac |
| Cellular Network | FDD-LTE: B1/B3/B7/B8/B20, WCDA/HSDPA/HSUPA/HSPA+: B1/B8, GSM/GPRS/EDGE: 900 MHz/1800 MHz |
| Bluetooth | BT4.0 |
