Hikvision

iDS-TCH44P-B

0,00 ₼

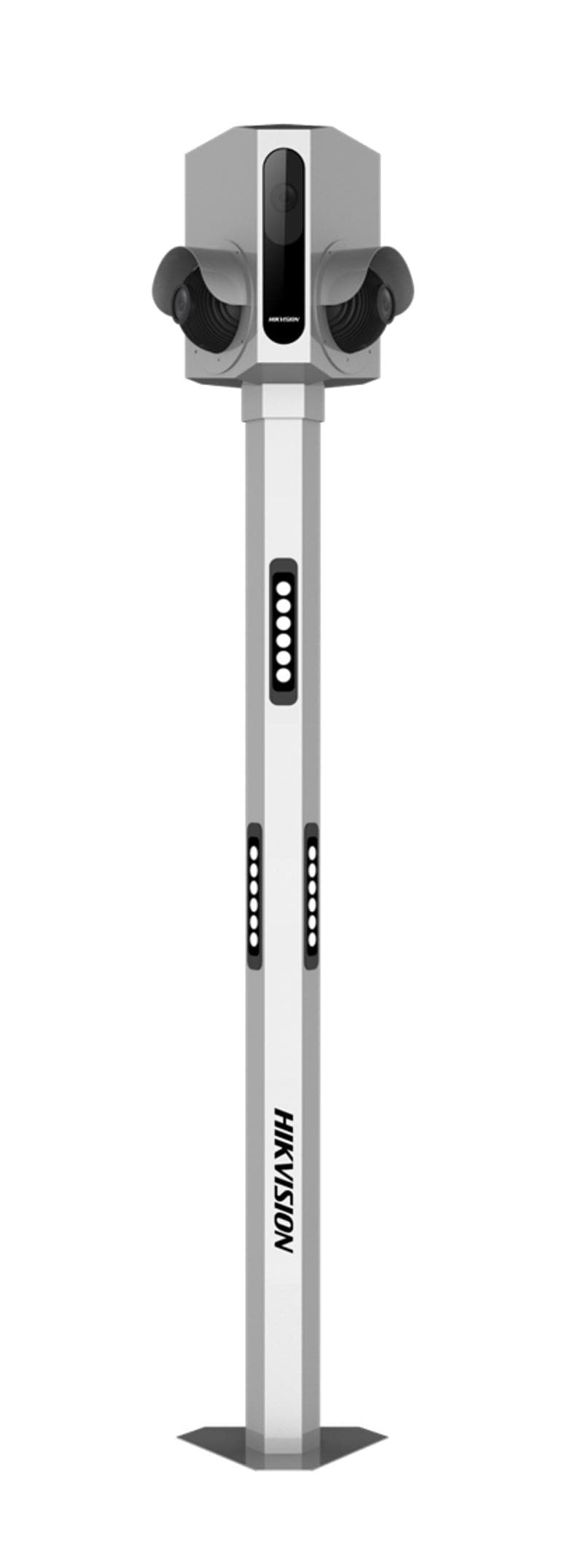

Built-in triple-lens camera with 4 MP CMOS low illumination sensor. The left and right ones are motor-driven vari-focal lenses. The middle one is fixed-focal lens.
Supports to recognize the number of vehicle axles and tyres based on the video detection.
Supports to capture and output the complete side view picture of the vehicle with extra long body. Supports to capture pictures of the vehicle head and tail.
Supports vehicle capture and corresponding functions: motor vehicles capture, LPR, and vehicle features recognition (main brand, sub-brand, and color).
Adjustable built-in supplement light.
Low illumination. Color: 0.01 Lux @ (F1.5, AGC ON).
H.265 and H.264 encoding. Max. full HD 2688 × 1520 @ 25 fps real-time image output with ultra-low time delay and ultra-low bit rate.
Dual streams. H.265/H.264 encoding with high compression ratio and flexibility. MJPEG encoding. Captured pictures adopt JPEG encoding, and the quality of pictures can be set.
ROI video compression technology provides high compression ratio and flexible processing.
D-WDR.
Supports to set the overlay information on the videos and capture pictures independently.
Supports multiple pictures upload mode (cloud storage, FTP, Hikvision SDK arming, etc.).
Supports hardware watchdog.
Supports to import and export the configuration file.
IP65 dustproof, waterproof, and anti-surge protection.

Az qalıb

WhatsApp ilə al

Network

Protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
Simultaneous Live View	Up to 6 channels
API	ISAPI, SDK
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS
Network Storage	MicroSD/TF card (128 GB), local storage and CVR, NVR, ANR
Client	iVMS-4200 (Only for video live view), HikCentral Professional V2.1 or above, HikCentral Master, HikCentral Master Lite
Web Browser	IE9 to IE11

General

Operating System	Linux
Power	100 to 240 VAC， 1.3A max. 60W
Material	Aluminum alloy
Dimension	1818 mm × 326 mm × 281 mm (71.5" × 12.8" × 11.0")
Power Consumption	60W max
Weight	Camera: approx. 19 ± 0.5 kg (41.8 ± 1.1 lb.)
Operating Condition	-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
General Function	One-key reset,Three streams,Password protection
WDR	Supported

Kamera

Image Sensor	Channel 1: 1/1.8" CMOS, Channel 2: 1/1.8 CMOS, Channel 3: 1/1.8 CMOS"
Max. Resolution	Channel 1: 2688 × 1520, channel 2: 2688 × 1520, channel 3: 2688 × 1520
Min. Illumination	Color: 0.01 Lux @ (F1.5, AGC ON)
Shutter Time	50 us to 20000 us

Lens

Focal Length & FOV

Channel 1:

4 to 11 mm, motor-driven vari-focal lens

Horizontal FOV: 114.7° to 41.9°;

Vertical FOV: 59.4° to 23.6°;

Diagonal FOV: 141.5° to 48.1°

Channel 2:

3.2 mm, C/S-mount fixed-focal lens

Horizontal field: 136°,

Vertical field: 73°

Diagonal FOV: 156°

Channel 3:

4 to 11 mm, motor-driven vari-focal lens

Horizontal FOV: 114.7° to 41.9°;

Vertical FOV: 59.4° to 23.6°;

Diagonal FOV: 141.5° to 48.1°

Focus

Channel 1: Semi-auto, manual

Channel 2: manual

Channel 3: Semi-auto, manual

Video

Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 252 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Sub-Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Video Compression	H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline profile/Main profile/High profile
H.265 Type	Baseline profile/Main profile/High profile


Image Settings	Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
Image Enhancement	BLC, HLC, 3D DNR
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format.

Interface

Ethernet Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface
RS-485	1 RS-485 interface (half duplex, HIKVISION)
Embedded LED Supplement Light	Supported

Event

Basic Event

HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Approval

Protection

IP65

Road Traffic and Vehicle Detection

Trigger Mode	Video trigger
Smart Function	License plate recognition, vehicle axles and tyres number recognition, and vehicle features recognition
LPR Countries/Regions	Mid-East: United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Palestine, Africa: Nigeria, Kenya, Cote d'Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh, America: United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Belgium, Luxembourg, Albania, Lithuania, Latvia, Estonia, Bosnia and Herzegovina, Serbia, Montenegro, Macedonia, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Georgia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
No License Plate Detection	Supported

Storage

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB

External Interface

Alarm Input

2 × IO input interface
