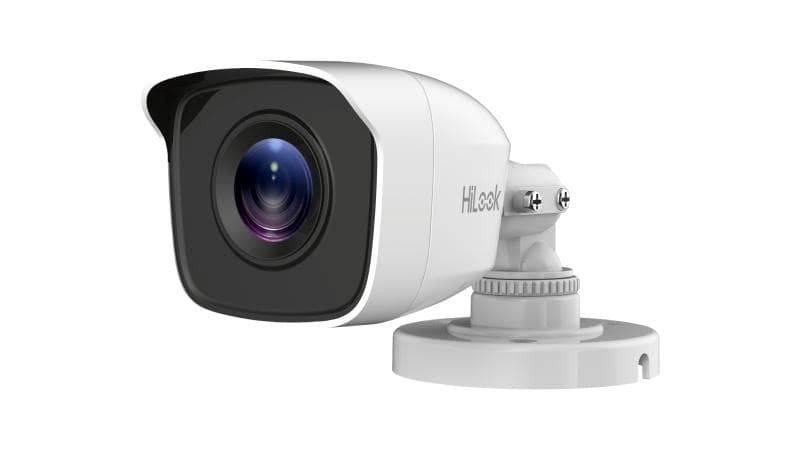

Hikvision
0,00 ₼
| Power | 12 VDC ±15%, Max. 2.1 W |
| Material | Plastic |
| Dimension | 165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28") |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Image Sensor | 2 MP CMOS image sensor |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.02 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm and 3.6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0° |
| Lens Mount | M12 |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 20 m |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | AGC;Brightness;Smart IR;Mirror;Sharpness |
| Frame Rate | PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR;BLC |
| Noise Reduction | 2D DNR |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Protection | IP66 |
