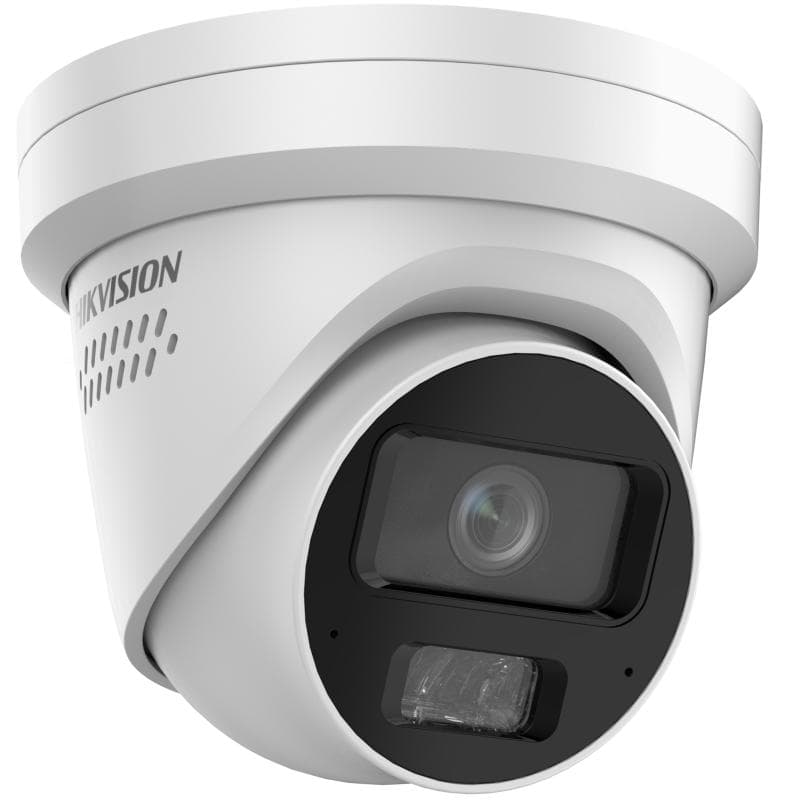

iDS-2CD7387G0-XS

CE-EMC: EN 55032: 2015+A1:2020, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

IR cut filter,

Blue glass module (less ghost phenomenon)

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

4 mm: D: 104.6 m, O: 41.5 m, R: 20.9 m, I: 10.5 m

Detects up to 60 faces simultaneously,

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

Uploads face with background and closed-up face pictures

Supports crossline people counting,

Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),

The real-time people flow data is displayed on the screen. ,

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,

Uploads face with background and closed-up face picture.,

Supports real-time uploading and uploading by statistic cycle

Supports up to 8 detection regions, and independent arming schedule and linkage method,

Supports 2 detection modes: regional people queuing-up, waiting time detection,

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue,

Supports raw data export for further analysis,

Supports real-time data uploading and scheduled data uploading,

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold,

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

Line crossing, intrusion, region entrance, region exiting,

Support alarm triggering by specified target types (human and vehicle)

Supports up to 8 detection regions, and independent arming schedule and linkage method,

Supports 2 detection modes: absence detection, on/off duty detection,

Supports parameter settings: person on duty, absence duration

12 VDC ± 20%, 0.66A, max. 7.9 W,

PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.16 A to 0.26 A, max. 9.69 W

Ø138.6 mm × 124.4 mm (Ø5.46 × 4.86\")"

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Memory: 40 MB,

Smart RAM: 350 MB,

eMMC: 1 GB

2.8 mm: horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

4 mm: horizontal FOV 93.0°, vertical FOV 48.4°, diagonal FOV 110.4°

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
