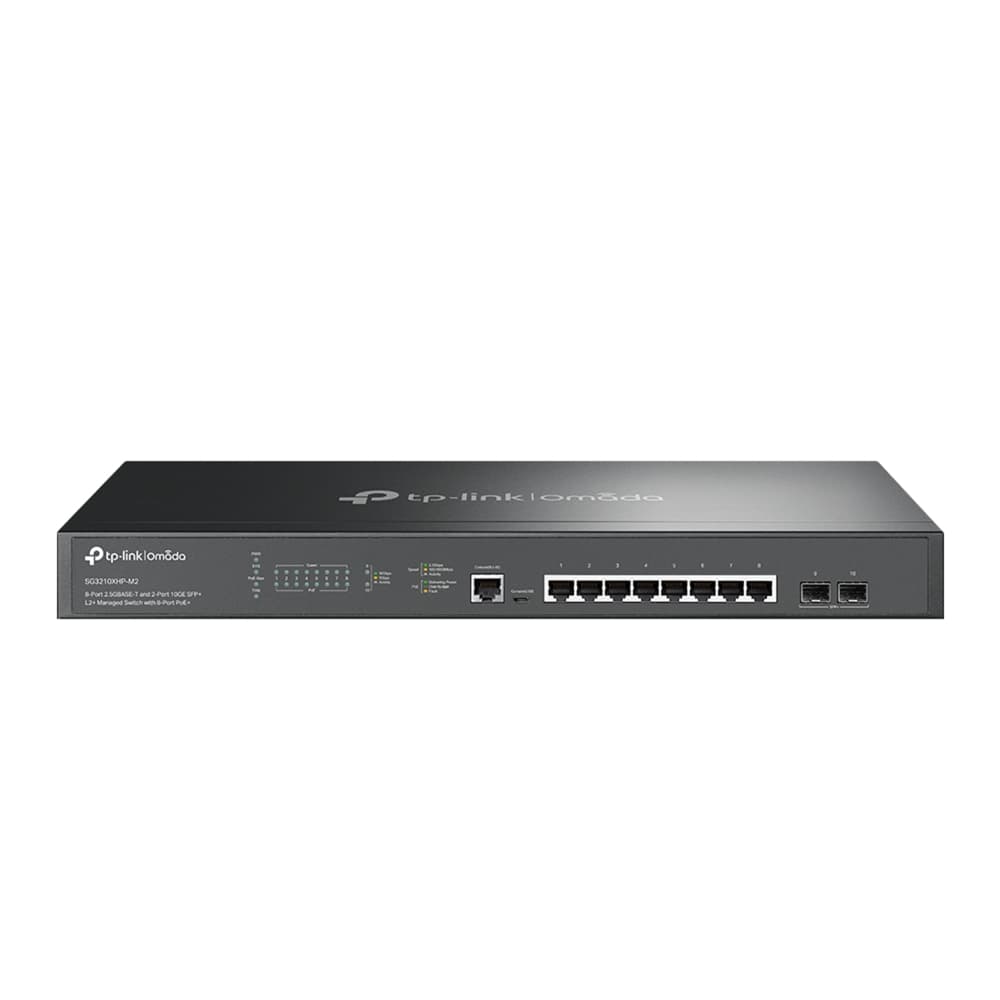

SG3210XHP M2 - Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

HARDWARE FEATURES - Interface

• 8× 100/1000/2500 Mbps RJ45 Ports• 2× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port

HARDWARE FEATURES - Power Supply

100-240 V AC~50/60 Hz

HARDWARE FEATURES - Max. Power Consumption

285.9 W (110V/60Hz) (with 240 W PD connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

HARDWARE FEATURES - Mounting

Rack Mountable

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• SG3210XHP-M2 Switch• Power Cord• Quick Installation Guide• Rackmount Kit• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0–50 ℃ (32–122 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

PERFORMANCE - Packet Buffer Memory

12 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Switching Capacity

80 Gbps

PERFORMANCE - Packet Forwarding Rate

59.52 Mpps

PERFORMANCE - MAC Address Table

16 K

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through the console port, telnet• SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log

HARDWARE FEATURES - Fan Quantity

2

HARDWARE FEATURES - Max. Heat Dissipation

975.54 BTU/hr (110V/60Hz) (with 240 W PD connected)

SOFTWARE FEATURES - Quality of Service

• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR• Bandwidth Control - Port/Flow based Rating Limiting• Smoother Performance• Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark

SOFTWARE FEATURES - L3 Features

• 64 IPv4/IPv6 Interfaces• Static Routing - 48 static routes• Static ARP - 128 Static Entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay• DHCP L2 Relay

SOFTWARE FEATURES - L2 and L2+ Features

• Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group• Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect• Loopback Detection - Port based - VLAN based• Flow Control - 802.3x Flow Control - HOL Blocking Prevention• Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule

SOFTWARE FEATURES - VLAN

• VLAN Group- Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 256 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ)- Port-Based QinQ- Selective QinQ• Voice VLAN

SOFTWARE FEATURES - Security

• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries• DoS Defend• Static/Dynamic Port Security - Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode• 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3at/af compliant• PoE+ Ports: 8 Ports• PoE Power Budget: 240 W*

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication• IGMP Authentication• MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast• MVR• Multicast Filtering: 256 profiles and 16 entries per profile

SOFTWARE FEATURES - Access Control List

• Time-based ACL• MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type• IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy - Mirroring - Redirect - Rate Limit - QoS Remark• ACL apply to Port/VLAN

SOFTWARE FEATURES - IPv6

• IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP

SOFTWARE FEATURES - MIBs

• MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB
