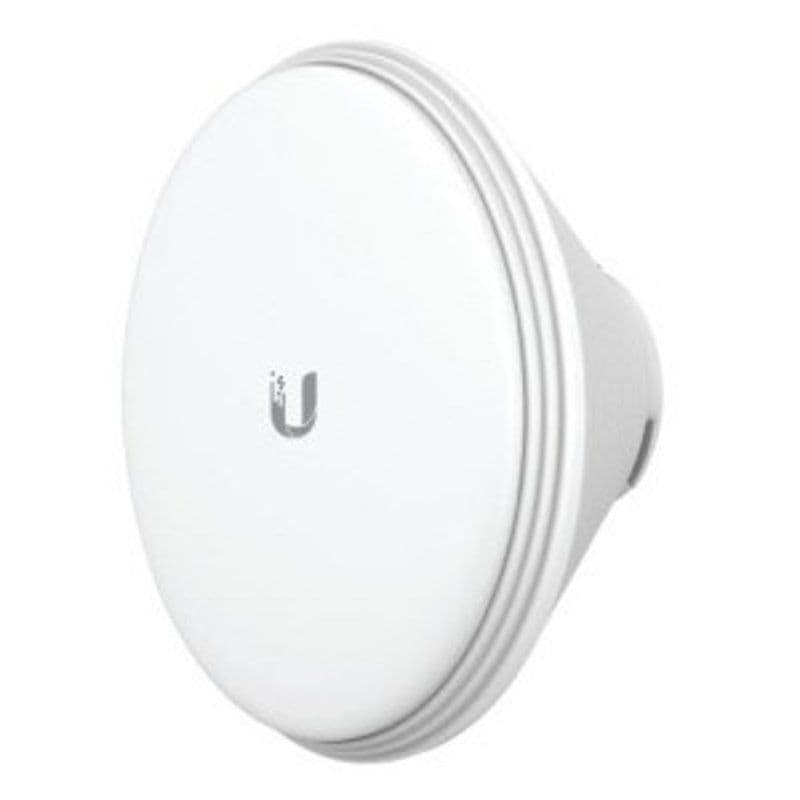

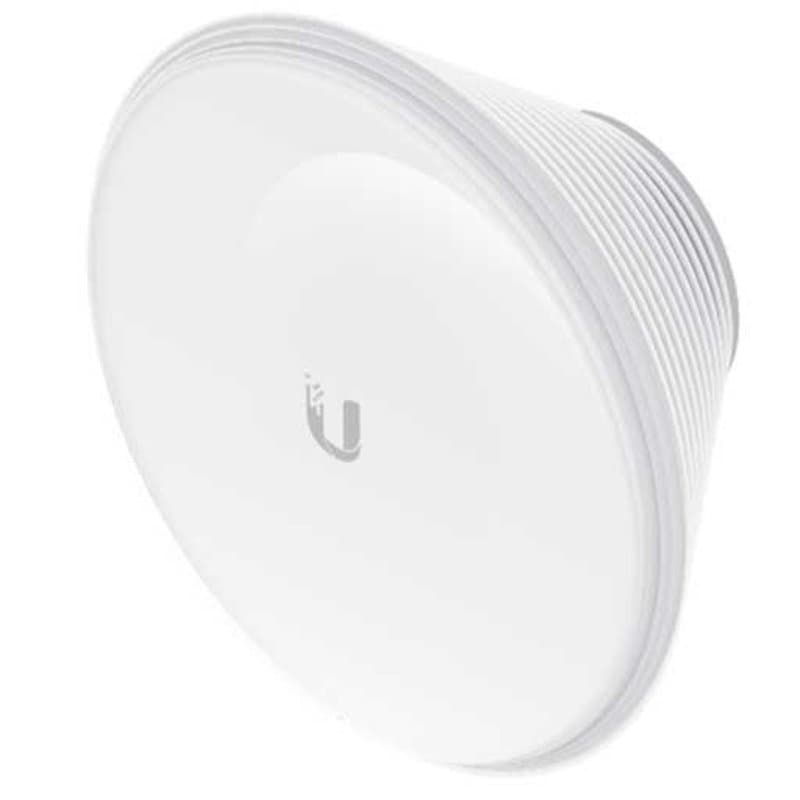

Ubiquiti Horn 5 45° (Horn-5-45)

Interchangeable Isolation™ Antennas for PrismStation™ With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the PrismStation AC and IsoStation radios, these antennas deliver superb co‐location performance without sacrificing gain. Modular Design The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation AC or IsoStation radio, the system gets maximum gain out of the smallest footprint. Symmetrical horn antenna 45° version offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology. Features: Compatible Radios IsoStation/PrismStation HPOL Beamwidth 45° VPOL Beamwidth 45° Elevation Beamwidth 45° Electrical Downtilt 0° Cross-Pol Isolation 17 dB Max. VSWR 1.7:1 Wind Loading (with PrismStation) 56 N @ 200 km/h (12.59 lbf @ 125 mph) Wind Survivability 200 km/h(125 mph)
