Ubiquiti NanoBeam M2 13dBi (NBE-M2-13)

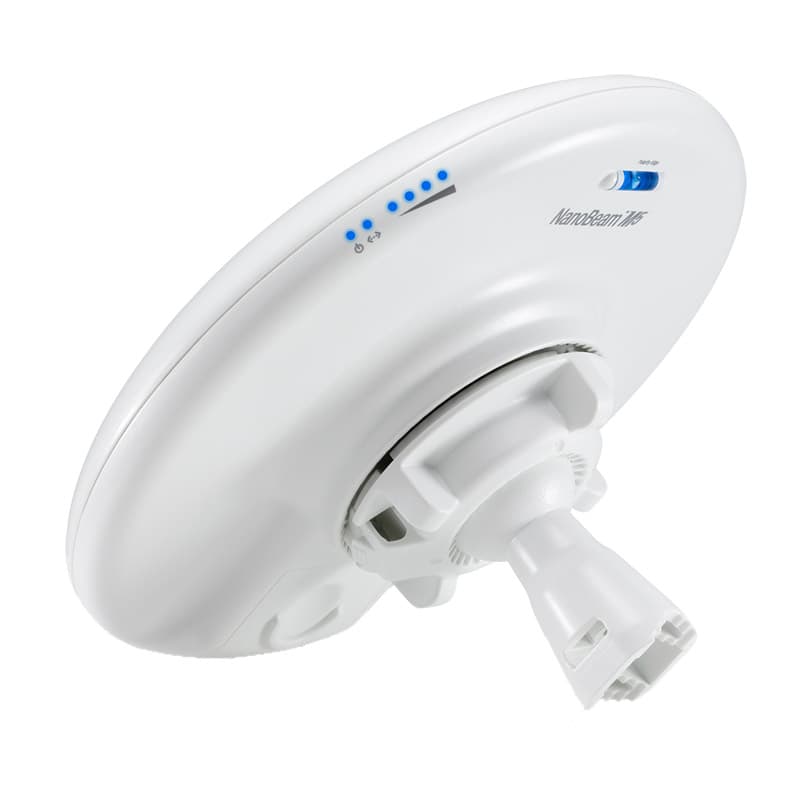

Improved Noise Immunity The Ubiquiti NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Innovative Mechanical Design • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt. • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole. • Easy removal The antenna feed can be detached with the push of a button. Corrosion Resistance • Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners. NBE-M2-13 replaces the folowing EOL products: Alfa Grid Antenna 2.4GHz 24dBi AGA-2424T. SPECIFICATION Memory 64 MB DDR2, 8 MB Flash Operating Frequency 2405 - 2475 MHz Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") Weight 0.530 kg (1.17 lb) Power Supply (PoE) 24V, 0.5A PoE Interfaces (1) 10/100 Ethernet Port Polarization Dual Linear Mounting Pole-Mount (Kit Included), Wall-Mount Operating Temperature -40 to 80° C (-40 to 176° F) Operating Humidity 3GHz
