Approval

Protection

IP67

Camera

Max. Resolution	3328 (H) × 1504 (V)
Shutter Time	1/20 s to 1/50,000 s
Image Sensor	3K CMOS
Slow Shutter	Max. 16 times
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

DORI

DORI

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

Event

Motion Detection

4 programmable motion areas

General

Power	12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
Language	English
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material	Front cover: Metal, Main body: Plastic
Communication	HIKVISION-C
Dimension	234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")

Illuminator

Supplement Light Range	IR: Up to 40 m,White Light: Up to 40 m
Smart Supplement Light	Yes


Frame Rate	3K @20 dual
Privacy Mask	4 programmable privacy masks
Wide Dynamic Range (WDR)	≥130 dB
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Day/Night Mode	Auto
White Balance	Auto/Manual
Image Enhancement	WDR;BLC;HLC;Global
Noise Reduction	3D DNR
Image Settings	Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Interface

Video Output	1 HD analog output
Built-in Microphone	Yes

Lens

Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
Lens Mount	M12

1 / 2

Hikvision

DS-2CE12KF3TP-DLS

0,00 ₼

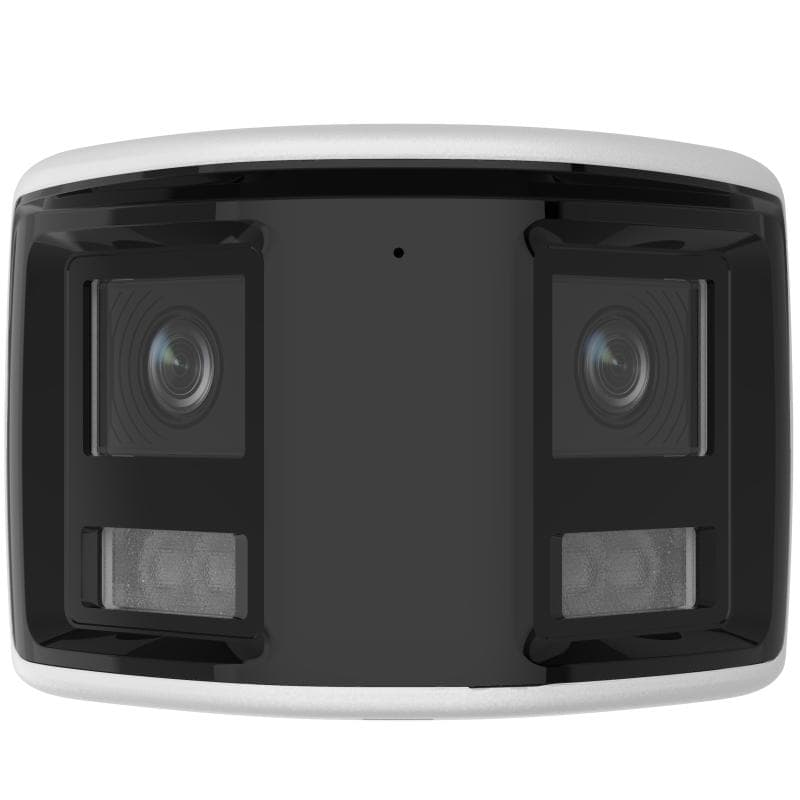

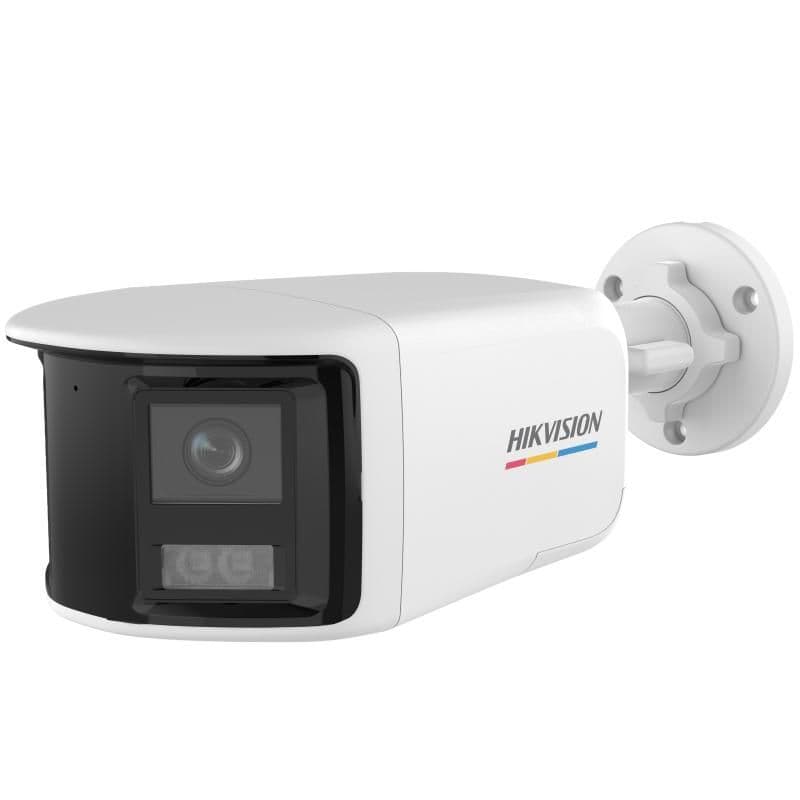

Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
High quality imaging with 3K, 3328 × 1504 resolution
24/7 color imaging with F1.0 aperture
Smart-Hybrid light, optimize your security with flexible lighting options
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Up to 40 m white light and 40 m IR distance for bright night imaging
Built-in mic, high quality audio with audio over coaxial cable
Water and dust resistant (IP67)

Low stock

Approval

Protection

IP67

Camera

Max. Resolution	3328 (H) × 1504 (V)
Shutter Time	1/20 s to 1/50,000 s
Image Sensor	3K CMOS
Slow Shutter	Max. 16 times
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

DORI

DORI

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

Event

Motion Detection

4 programmable motion areas

General

Power	12 VDC ± 25%, max. 7.2 W,*You are recommended to use one power adapter to supply the power for one camera.,If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.
Language	English
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material	Front cover: Metal, Main body: Plastic
Communication	HIKVISION-C
Dimension	234.46 mm × 103.58 mm × 76.01 mm (9.23" × 4.08" × 2.99")

Illuminator

Supplement Light Range	IR: Up to 40 m,White Light: Up to 40 m
Smart Supplement Light	Yes


Frame Rate	3K @20 dual
Privacy Mask	4 programmable privacy masks
Wide Dynamic Range (WDR)	≥130 dB
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Day/Night Mode	Auto
White Balance	Auto/Manual
Image Enhancement	WDR;BLC;HLC;Global
Noise Reduction	3D DNR
Image Settings	Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Interface

Video Output	1 HD analog output
Built-in Microphone	Yes

Lens

Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
Lens Mount	M12
