DS-K2220X

0,00 ₼

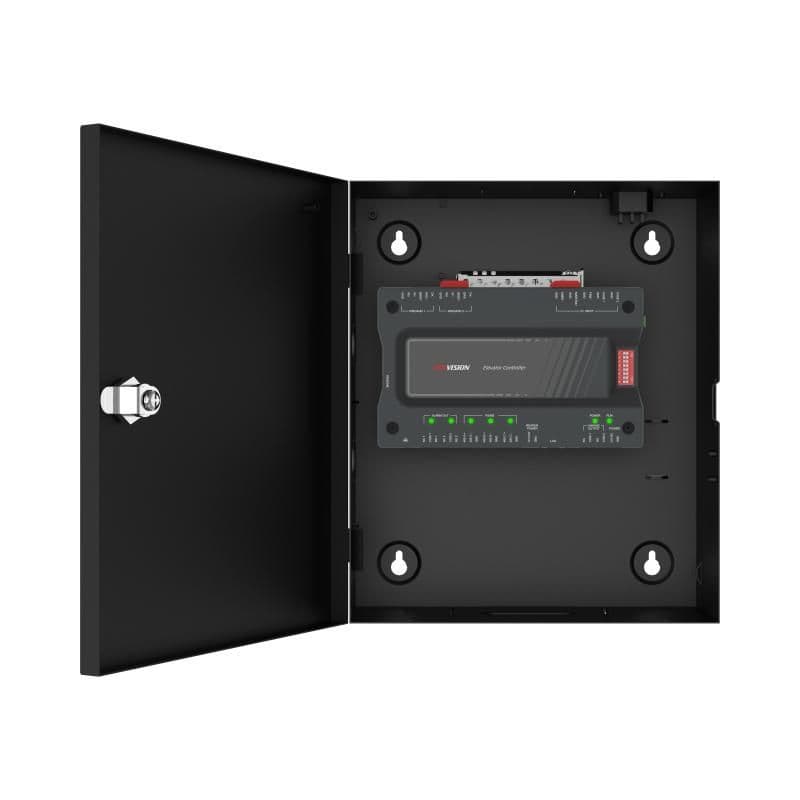

Comes with mainboard and chassis, the chassis includes a power supply, and does not support battery access
Storage with 50,000 users, 100,000 Cards, 300,000 events and 30,000 fingerprints. Up to 128 floors’ permissions
Uplink communication: TCP/IP and RS-485
Accessible card reader: 2 Wiegand readers or 2 RS-485 readers
Input interface: emergency button×1, fire alarm button×1, maintenance button×1,case input×2

Low stock

Indicator	1. Power On: Solid Green 2. Network Armed: Flashing Green, Network Not Armed: Solid Red 3. Serial Port Not Communicating: Light Off, Serial Port Communicating: Solid Green 4. Relay NC: Light Off, Relay NO: Solid Green 5. Network Disconnected: Light Off, Network Cable Connected: Solid Green, Flashing Green
Power supply	100 VAC to 240 VAC
Working temperature	-10 °C to 55 °C (14 °F to 131 ° F)
Working humidity	0% to 90% (No Condensation)
Dimensions	235 mm × 280 mm × 87.8 mm（9.25" ×11.02" × 3.46"）
Installation	DIN Rail installation

Alarm input	1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
Alarm output	2 Relay Outputs
RS-485	3
Wiegand	2

Communication protocol

TCP/IP

Operating system	Linux
Processor	32 bit
