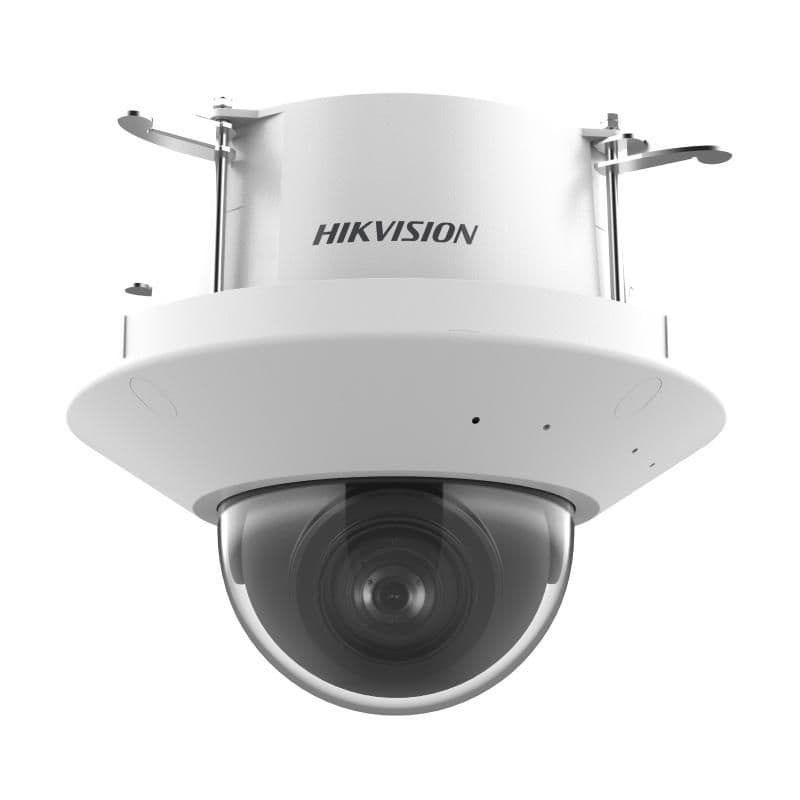

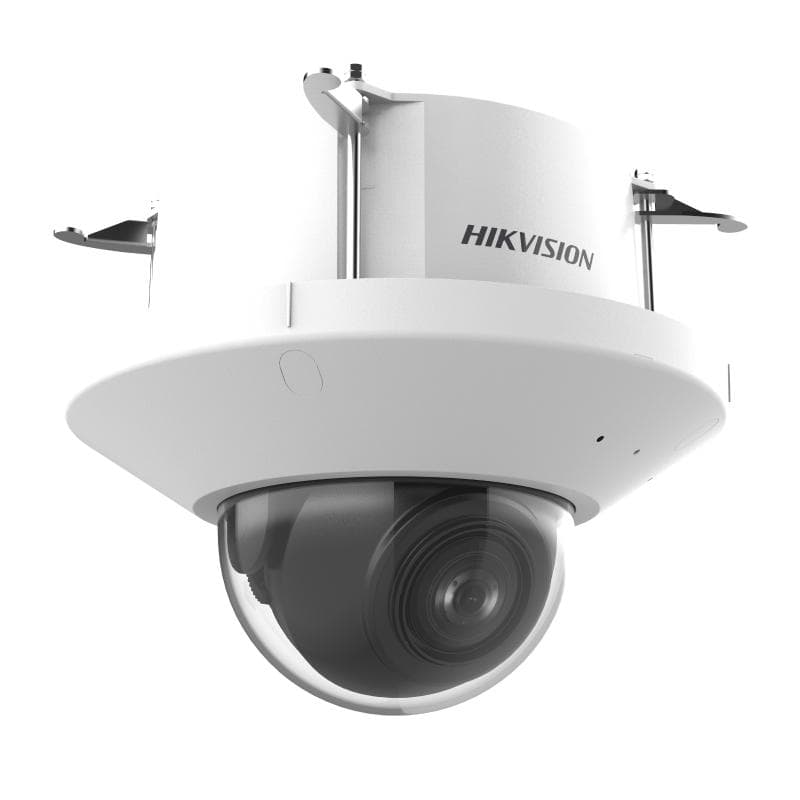

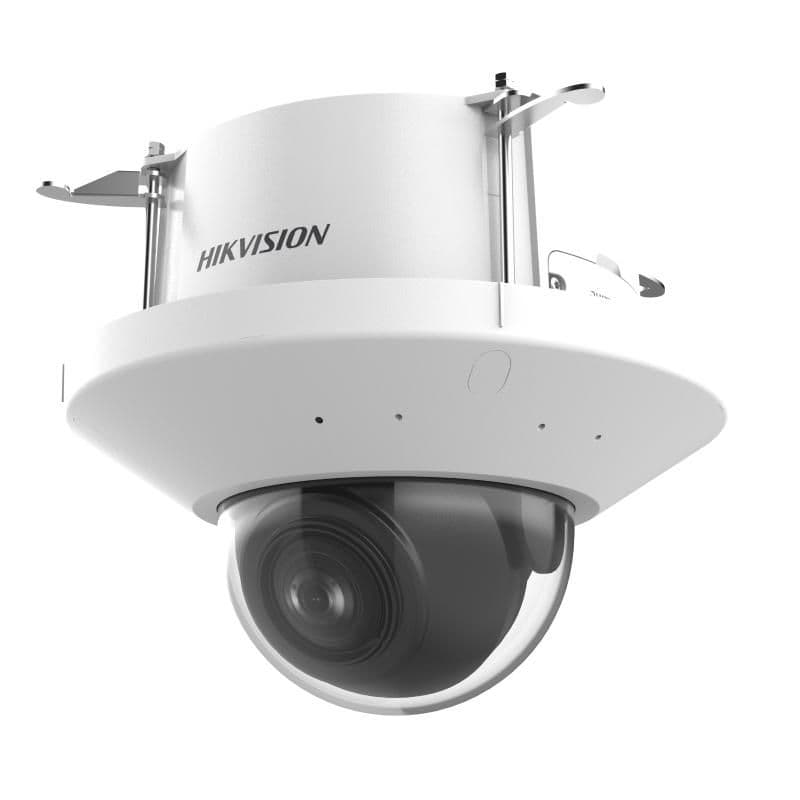

iDS-2CD7547G2-ZHS/RC

Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024,EN 61000-3-3:2013+A1:2019+A2:2021,EN 50130-4:2011+A1:2014

RCM: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024,EN 61000-3-3:2013+A1:2019+A2:2021,EN 50130-4:2011+A1:2014

IC: ICES-003 Issue7:October 2020

CB: IEC 62368-1: 2014,

CE-LVD: EN 62368-1: 2014 + A11: 2017,

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

IR cut filter,

Blue glass module (less ghost phenomenon)

2.8 to 12 mm,

Wide: D (Detect): 63.4 m, O (Observe): 25.2 m, R (Recognize): 12.7 m, I (Identify): 6.3 m

Tele: D (Detect): 140.7 m, O (Observe): 55.8 m, R (Recognize): 28.1 m, I (Identify): 14.1 m

8 to 32 mm,

Wide: D (Detect) : 158.6 m, O (Observe) : 62.9 m, R (Recognize) : 31.7 m, I (Identify) : 15.9 m

Tele: D (Detect) : 372.4 m, O (Observe) : 147.8 m, R (Recognize) : 74.5 m, I (Identify) : 37.2 m

10 to 50 mm,

Wide: D (Detect) : 150.3 m, O (Observe) : 59.7 m, R (Recognize) : 30.1 m, I (Identify) : 15 m

Tele: D (Detect) : 635.9 m, O (Observe) : 252.3 m, R (Recognize) : 127.2 m, I (Identify) : 63.6 m

The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Supports dynamic mosaic mask,

Supports ShotN technology,

Supports simultaneous detection and capture of human body, face, and vehicle,

Gets 7 face features,

Gets 13 human body features,

Gets 2 vehicle features,

Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,

Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,

Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°,

Uploads face with background and closed-up face pictures,

Supports best shot and quick shot for capture mode,

Supports dynamic mosaic mask,

Gets 7 face features

Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,

Supports face library encryption

Supports Multi-Dimension People Counting,

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle,

Supports generating daily, weekly, monthly or annually reports,

Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,

Supports face feature deduplication,

Supports people flow data replenishment

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

Detects up to 30 human targets simultaneously

Supports up to 4 shield regions

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

Supports searching real-time number of people

People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: absence detection, on/off duty detection

Supports parameter settings: person on duty, absence duration

Detects hard hat and reflective clothing, triggering alarm when not worn.

Detects people not wearing hard hat. Supported hat colors: red, orange, yellow, blue, white, and others.

12 VDC ± 20%, 1.05A, max. 12.6 W, three-core terminal block;

24 VAC ± 20%, 0.88A, max. 13.1 W, three-core terminal block;

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.26 A to 0.33 A, max. 13.9W

Memory: 150 MB,

Smart RAM: 2200 MB,

eMMC: 1288 MB

1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°

8 to 32 mm, horizontal FOV 37.8° to16.0°, vertical FOV 21.7° to 9.2°, diagonal FOV 43.2° to 18.2°

10 to 50 mm, horizontal FOV 41.5° to 9.3°, vertical FOV 23.2° to 5.3°, diagonal FOV 49.9° to 10.7°

2.8 to 12 mm, F1.0 to F1.2

8 to 32 mm, F1.0 to F1.2

10 to 50 mm, F1.4 to F1.6

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Monitoring mode:

50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080)

60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080)

*High frame rate is supported under monitoring mode only.

smart mode:

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
