Hikvision
0,00 ₼

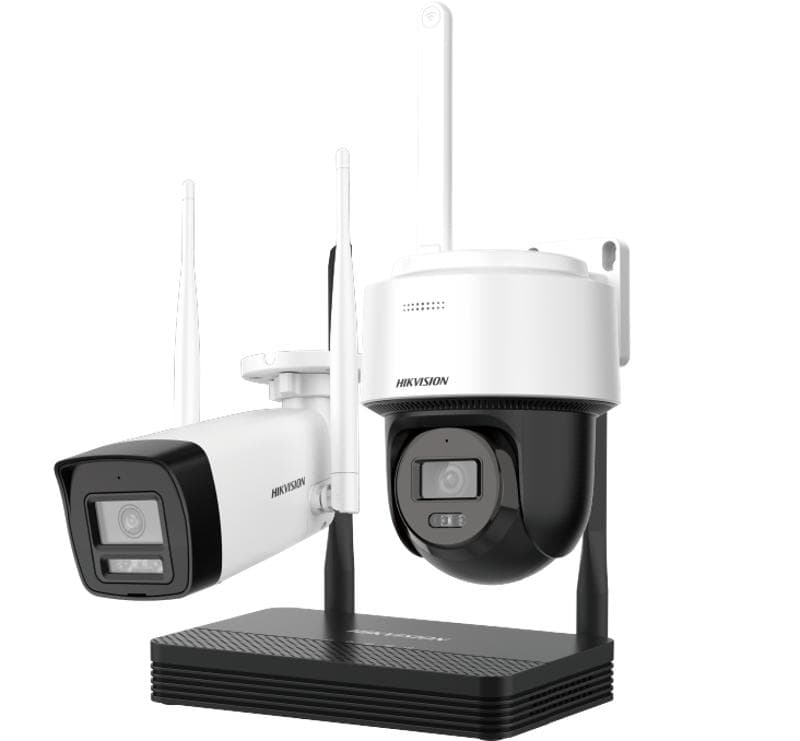

| Camera Case Type | Bullet;Dome |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Bullet：Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR Dome：Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0.01 Lux @ (F2.0, AGC ON),0 Lux with IR |
| Day &Night | IR cut filter |
| WDR | DWDR |
| Angle Adjustment | Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Dome: Pan: 0° to 345°,tilt: 0° to 80° |
| Protection Level | IP66 |
| Wi-Fi Support | Yes |
| Power Supply | Bullet: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package. Dome: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug |
| Consumption | Bullet: ≤ 6 W Dome: ≤ 9 W |
| Working Temperature | Bullet: -30 °C to 60 °C (-22 °F to 140 °F) Dome: -10 °C to 40 °C (-14 °F to 104 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Dimension (W × D × H) | Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5\" × 2.7\") Dome: Ø124 mm × 119 mm (Ø4.89 × 4.68\")" |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | Horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° |
| IR Range | Bullet：Up to 30 m Dome：White light distance: up to 25 m,IR distance: up to 25 m |
| Video Compression | H.265;H.264;MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Max. Resolution | 2MP |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432) |
| Sub-stream | 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432) |
| Image Setting | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Auto/Scheduled/Day/Night |
| Alarm Trigger | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset Button | Yes |
| IP Video Input | 4-ch |
| Incoming/Outgoing Bandwidth | 20 Mbps/20 Mbps |
| Video Resolution | 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 1-ch |
| Network Interface | 1, RJ45 10/100M Ethernet interface |
| Frequency Band | 2.4 GHz |
| Antenna Structure | High gain antenna |
| Transmission Speed | 150 Mbps |
| SD Card | 32G/64G/128G/256G/512G |
| Power Supply | 12 VDC |
| Consumption (without HDD and PoE off) | ≤ 6 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 163 x 125 x 26 mm (6.4" × 4.9" × 1.0") |
| Weight (without hard disk) | ≤ 500g |
| Accessories | Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor Ethernet cable: RJ45, Cat5e UTP, 1 m |
| Certification | CB, CE |
| Weight (with package) | ≤ 2.5 kg (5.5 lb) |
