MikroTik
246,50 ₼230,87 ₼-6%
Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors

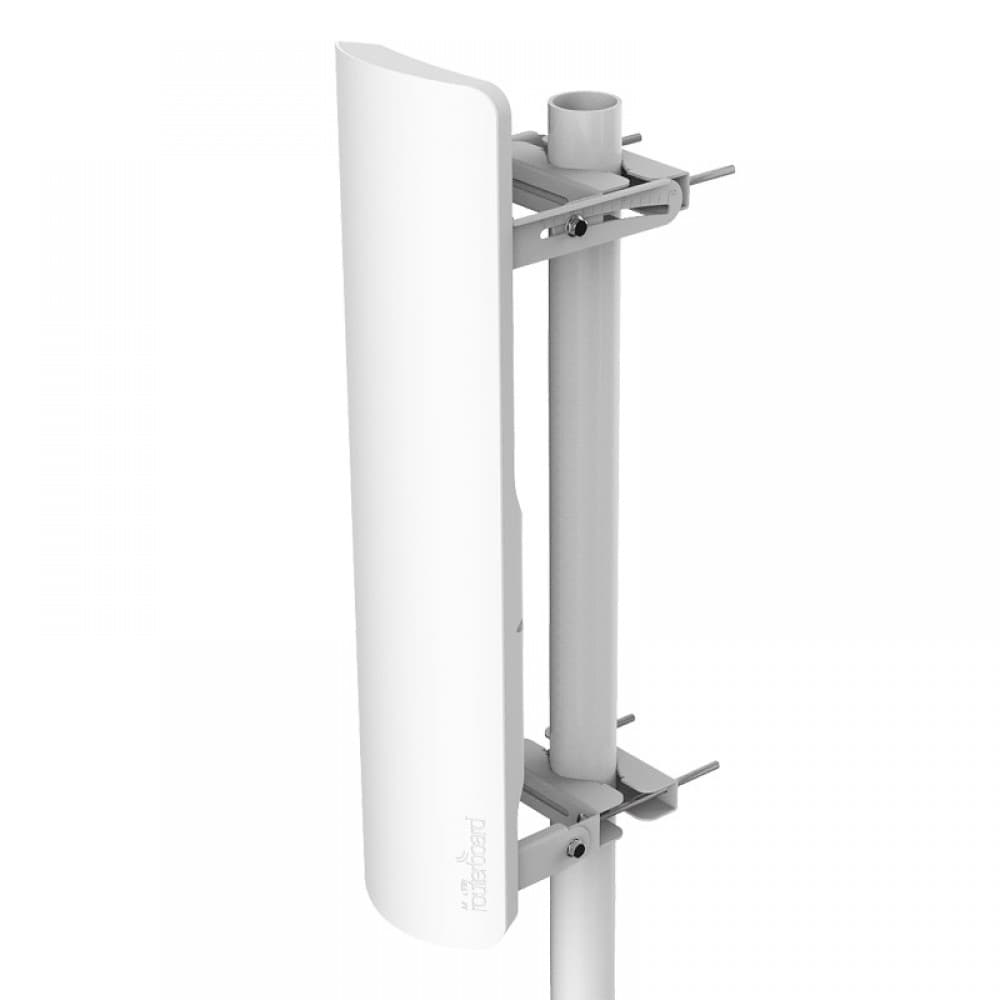

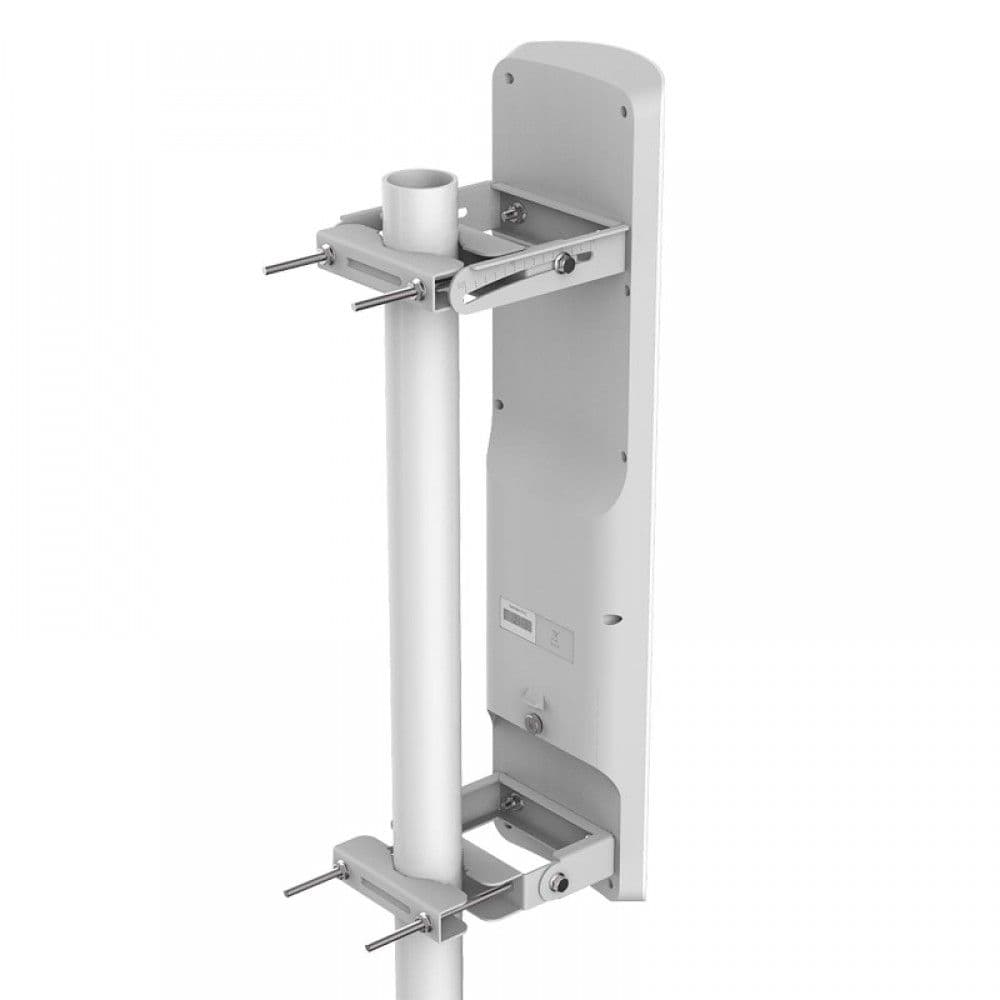

The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.
mANT is a 19dBi dual polarization sector antenna with 120 degree sweep angle and two RP-SMA connectors. Supplied with bolted mountings.

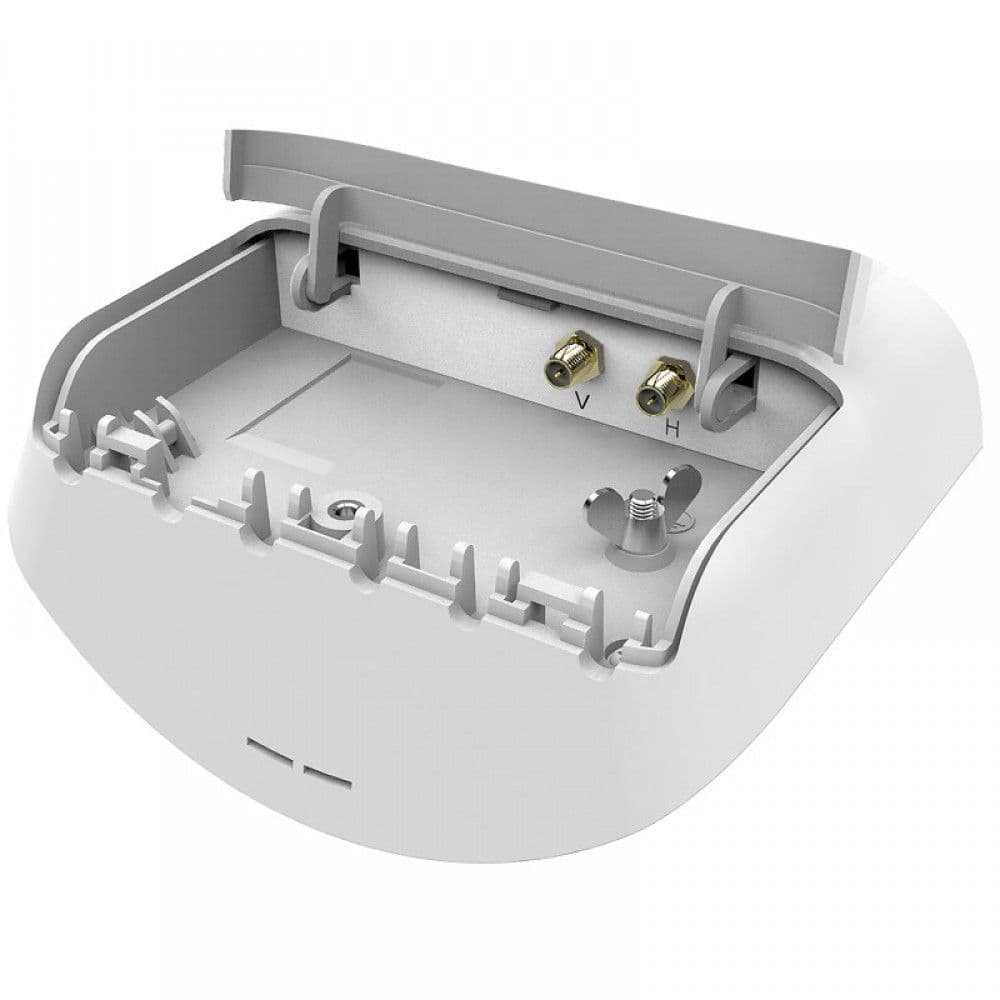

The new mANT 19s sector antenna is suitable for use with BaseBox, NetBox, NetMetal or other outdoor wireless devices. The mANT 19s is a dual polarized antenna with two RP-SMA connectors. The width of the main lobe of the radiation pattern is 120 °. The device is supplied with a U-bolt mount.
The antenna is protected from mutual interference by a special Bronzolate coating on the inner rear of the device.
| Details | |
|---|---|
| Product code | MTAS-5G-19D120 |
| Beamwidth | 120 deg (azimuth) 5 deg (elevation) |
| Connector | two RP-SMA |
| Cross Polarization | >30 dB |
| Diameter x Depth | 152 x 598 x 78 mm |
| Frequency Range | 5.17 - 5.825 GHz |
| Front-to-Back Ratio | >30 dB |
| MTBF | Approximately 100'000 hours at 25C |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 1270 g |
