QRT 5 ac

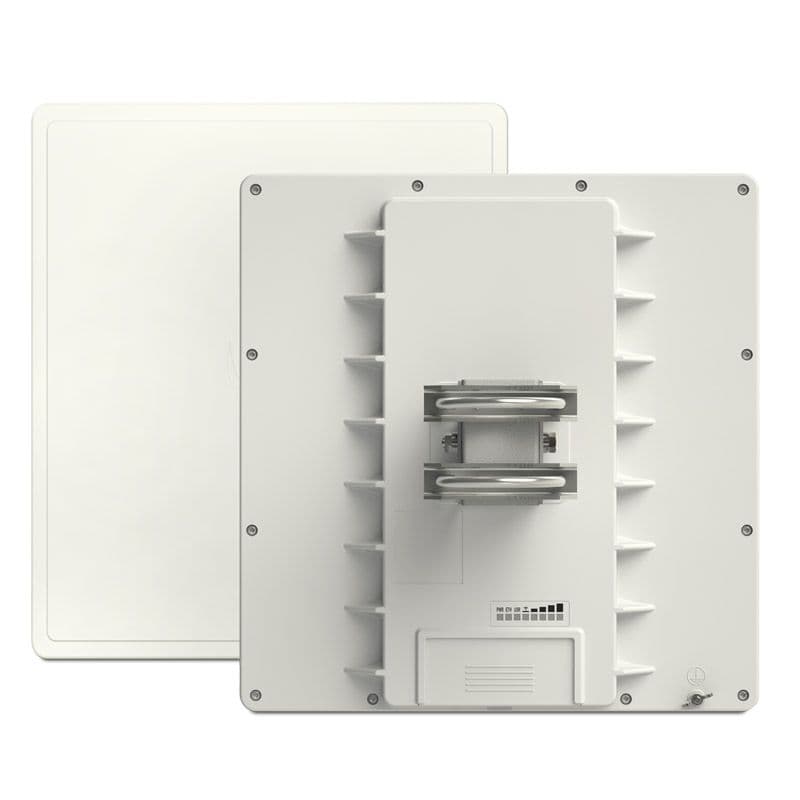

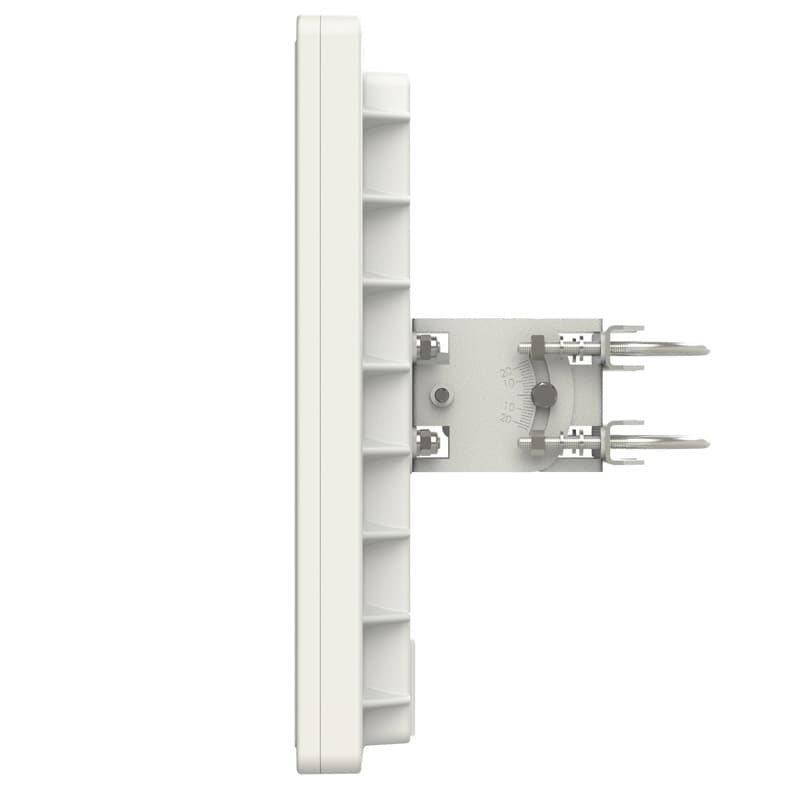

Dual chain 5GHz 802.11a/n/ac QCA9882, 128 MB RAM, 720 MHz CPU, 24 dBi antenna gain The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n. Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless. Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds. RB911G-5HPacD-QRT replaces the folowing EOL products: MikroTik QRT 2 RBQRTG-2SHPnD. Specifications Details Product code RB911G-5HPacD-QRT Architecture MIPSBE CPU QCA9557 CPU core count 1 CPU nominal frequency 720 MHz Dimensions 309x320x50mm RouterOS license 4 Operating System RouterOS Size of RAM 128 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 10.5 W FAN count Passive PoE in Passive PoE PoE in input Voltage 8-30 V Wireless specifications Details Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 24 Wireless 5 GHz chip model QCA9882 Wireless 5 GHz generation Wi-Fi 5 Ethernet Details 10/100/1000 Ethernet ports 1 Other Details PCB temperature monitor Yes Voltage Monitor Yes Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP54 Wireless specifications 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 31 -96 54MBit/s 27 -81 MCS0 30 -96 MCS7 27 -77 MCS9 22 -72 Included parts 24V 0.8A power adapter K-QRT screw kit Gigabit PoE injector U bolts U mast clamp QRT antenna mount
