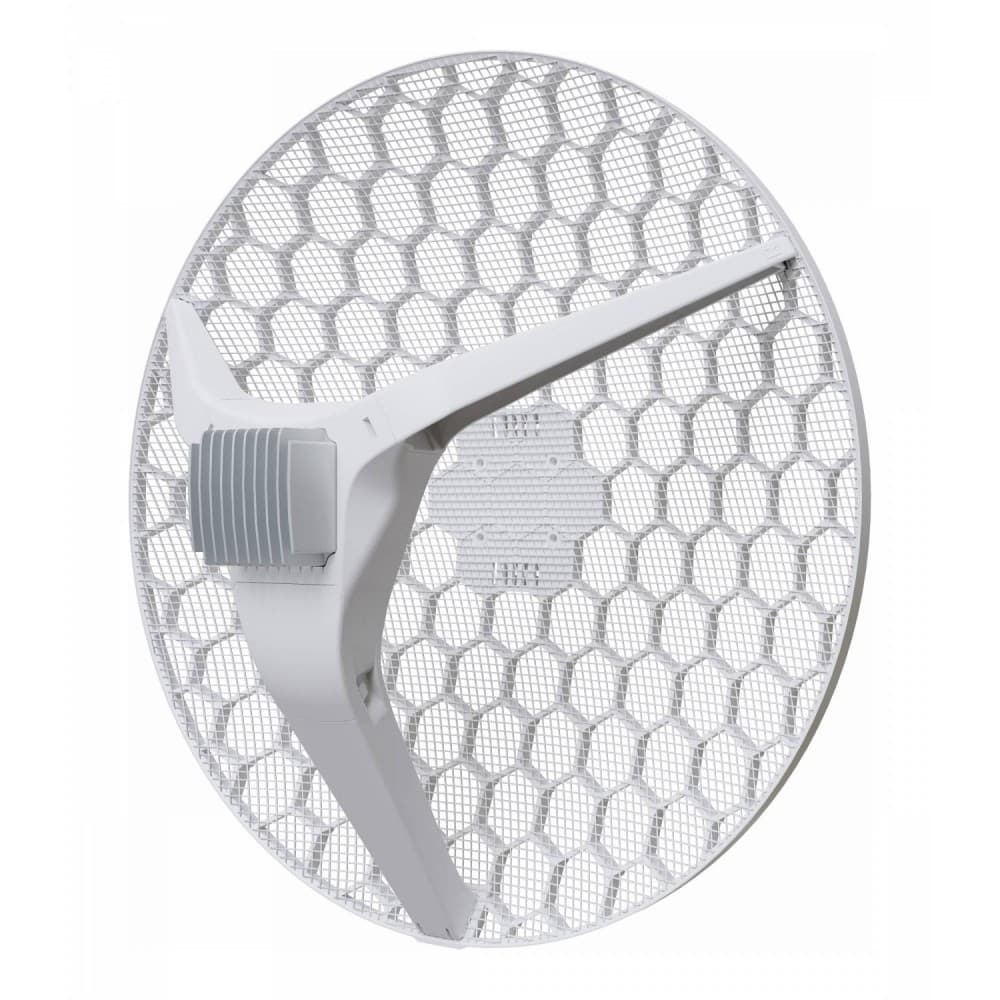

MikroTik LHG XL 52 ac - Extremely powerful dual-band backbone / CPE for long-distance connection without downtime!
Need a reliable and strong long-distance connection that never goes down? The new LHG XL 52 ac will provide just that with its dual-band capability. You can easily setup the 5 GHz channel as the main one with speed up to 600 Mbps and use the 2.4 GHz channel as an automatic backup connection with speed up to 260 Mbps.

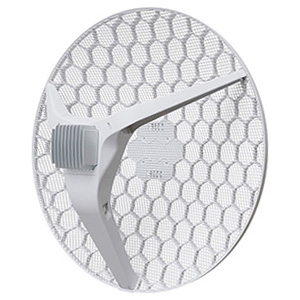

The powerful 27 dBi 5 GHz / 18 dBi 2.4 GHz antenna will provide connection with link distance up to 40 km. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. Antenna element is built into the wireless unit – no loss on cables. This device can handle the heaviest loads thanks to the impressive quad-core CPU and 256 MB of RAM. It has a Gigabit Ethernet port, an SFP port, and it is 802.3af/at compliant – you can power it with the smart switches!
Specifications
| Details |
|---|
| Product code | RBLHGG-5HPacD2HPnD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | Ø 550 x 291 mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| |
Powering
| Details |
|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 18 W |
| Max power consumption without attachments | 16 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
Wireless specifications
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 18 |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 29 | -100 |
| 11MBit/s | 29 | -93 |
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 31 | -96 |
| MCS7 | 26 | -75 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 26 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 25 | -75 |
| MCS9 | 23 | -70 |
Included parts
