LtAP 4G kit

A heavy-duty 2.4GHz access point with extra miniPCI slot, three SIM slots, GNSS support (GPS, GLONASS, BeiDou, Galileo) and LTE modem for International/USA bands 3, 7, 20, 31, 41n, 42 and 43

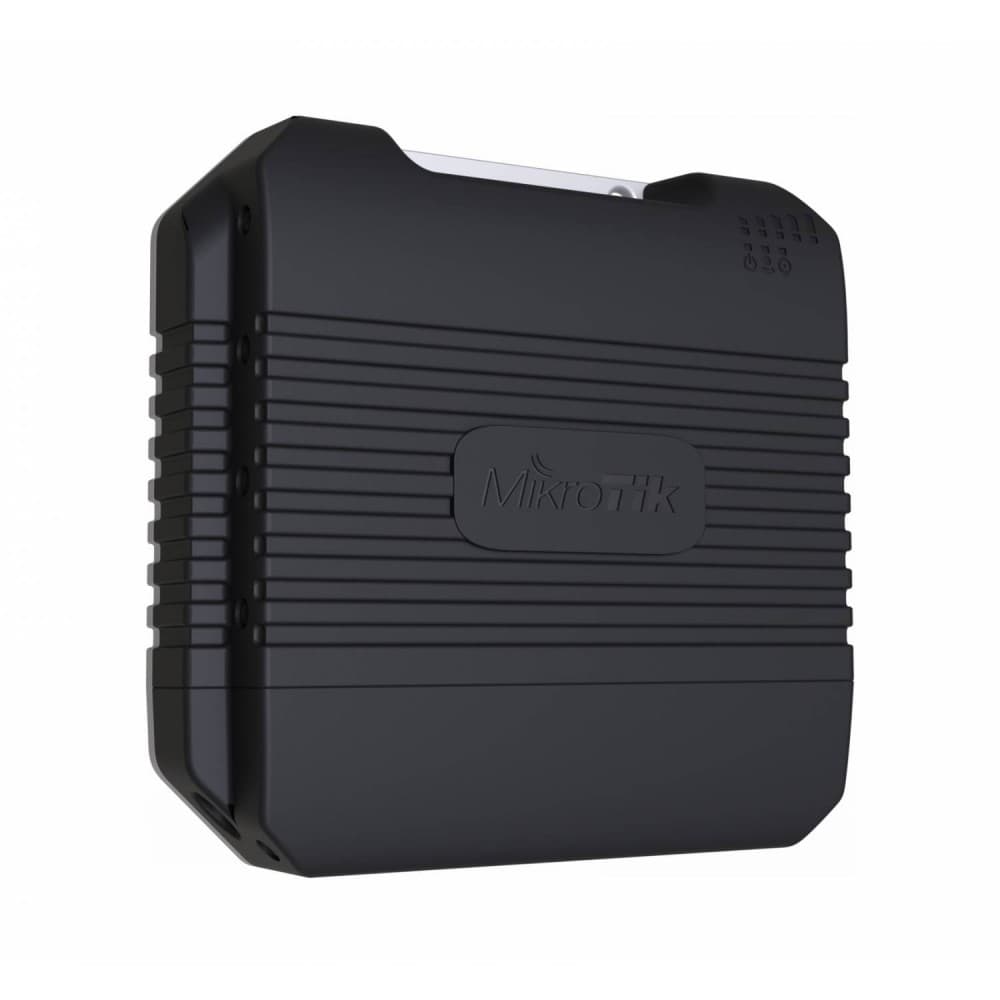

Introducing LtAP 4G kit – a heavy-duty 4G (LTE) access point with GPS support.

The new LtAP 4G kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.

Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

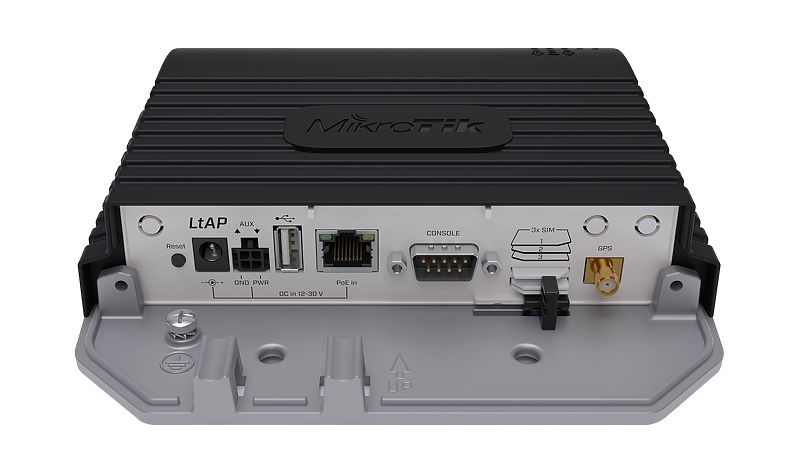

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

RBLtAP-2HnD&R11e-4G includes LTE modem that supports International/USA bands 3, 7, 20, 31, 41n, 42 and 43.

The new LtAP 4G kit is more than an access point – it is what you need it to be wherever you need it to be.

Three models are available:

• LtAP LTE kit (RBLtAP-2HnD&R11e-LTE) with R11e-LTE modem for International bands 1, 2, 3, 7, 8, 20, 38 and 40.

• LtAP 4G kit (RBLtAP-2HnD&R11e-4G) with R11e-4G modem for International / USA bands 3, 7, 20, 31, 41n, 42 and 43.

• LtAP (RBLtAP-2HnD) without LTE card.

Supported bands

LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)

LTE (FDD) bands 3 (1800MHz) / 7 (2600MHz) / 31 (450MHz) / 20 (800MHz)

LTE (TDD) bands 42 (3500MHz) / 41n (2500MHz) / 43 (3700MHz)

Specifications

Powering

Mobile

Wireless specifications

Ethernet

Peripherals

Other

Certification & Approvals

Wireless specifications

Included parts

•
  K-67 fastening set
•
  0.35m 4pin Automotive adapter cable
•
  24v 1.2A power supply (straight plug)
