MikroTik
248,20 ₼230,44 ₼-7%
7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports with PoE output

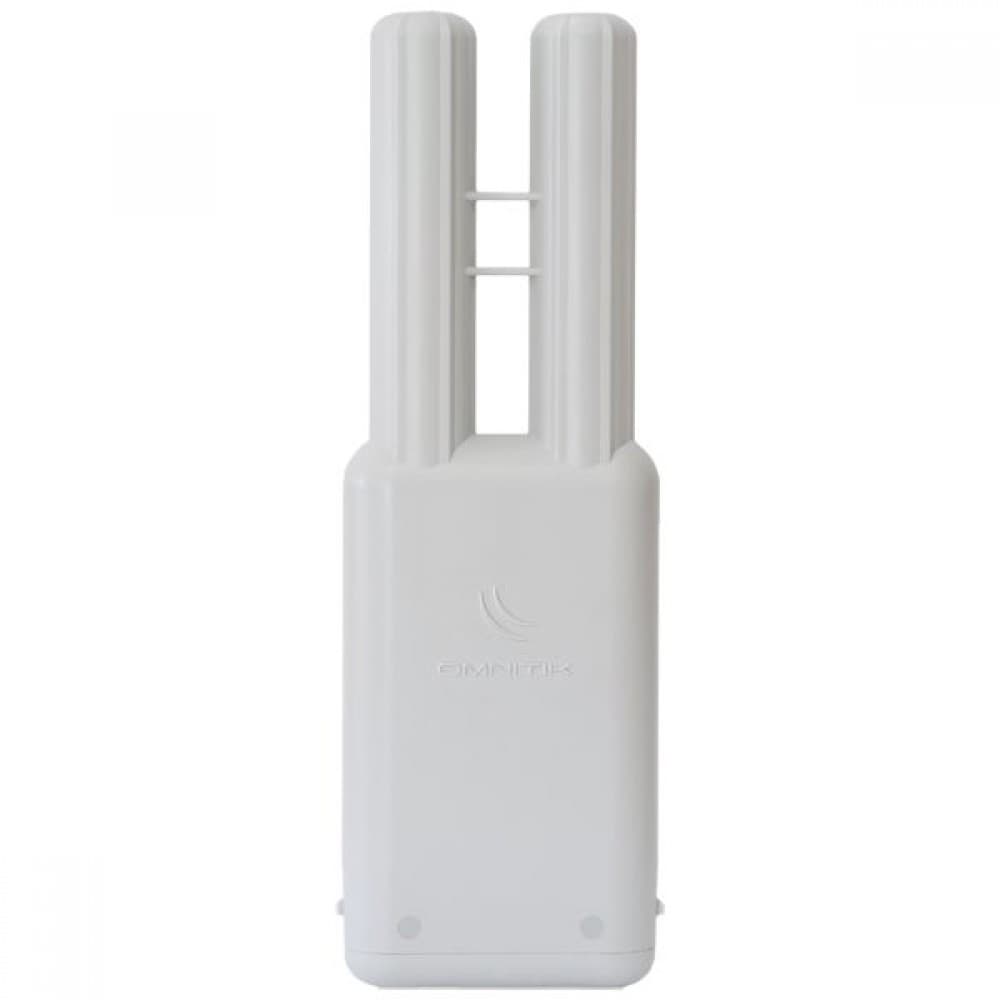

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has ve 10/100 Ethernet ports, PoE support and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

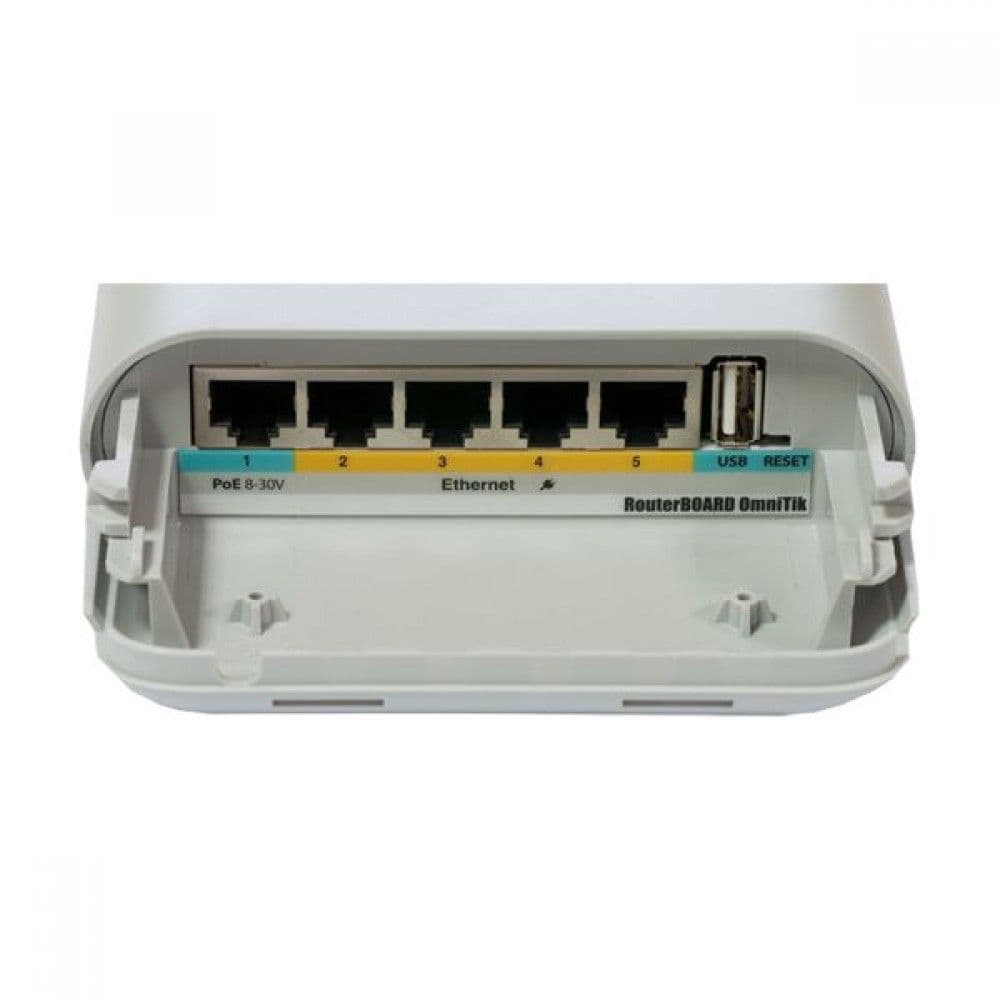

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.
The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.
Box contains OmniTik UPA-5HnD, mounting loops, PoE injector, 24v 2.5A power adapter
- RBOmniTikUPA-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RBOmniTikUPA-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
| Details | |
|---|---|
| Product code | RBOmniTikUPA-5HnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 368x125x55mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 59 W |
| Max power consumption without attachments | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 1 A |
| Max total out (A) | 2 A |
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 7.5 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
