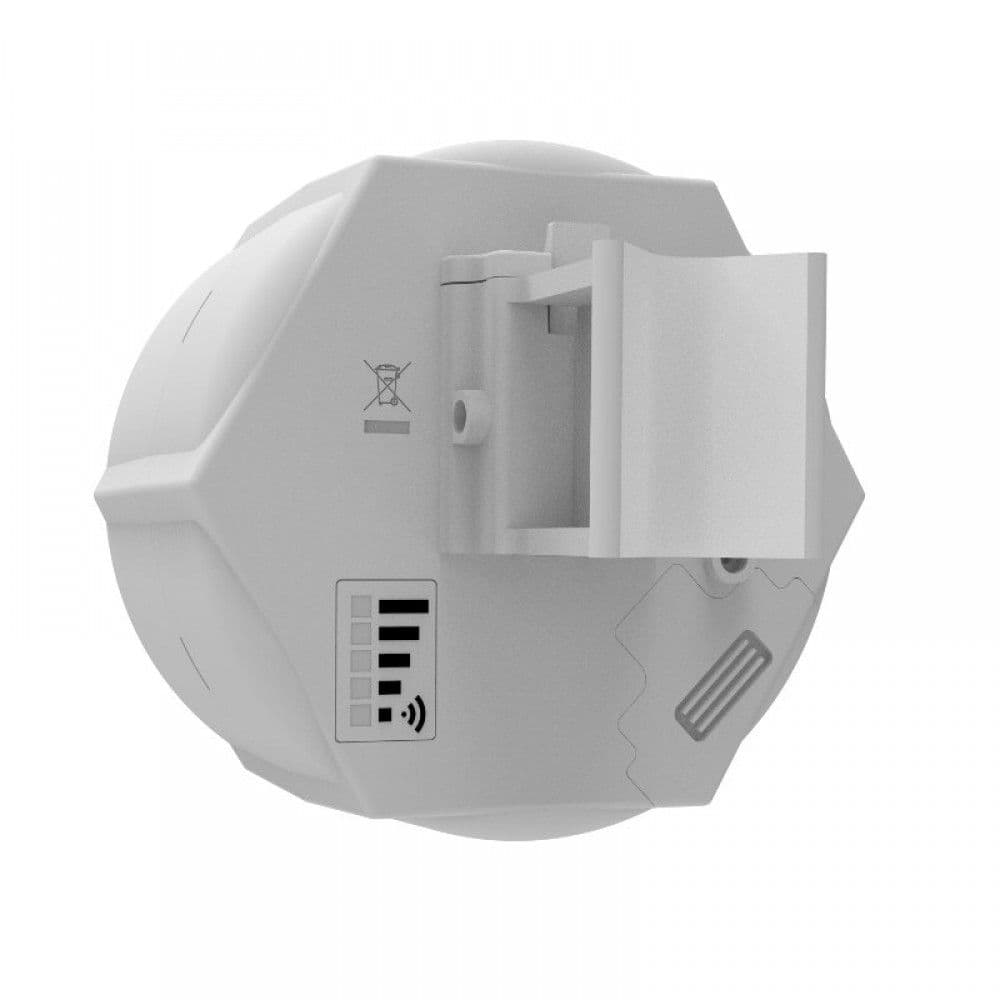

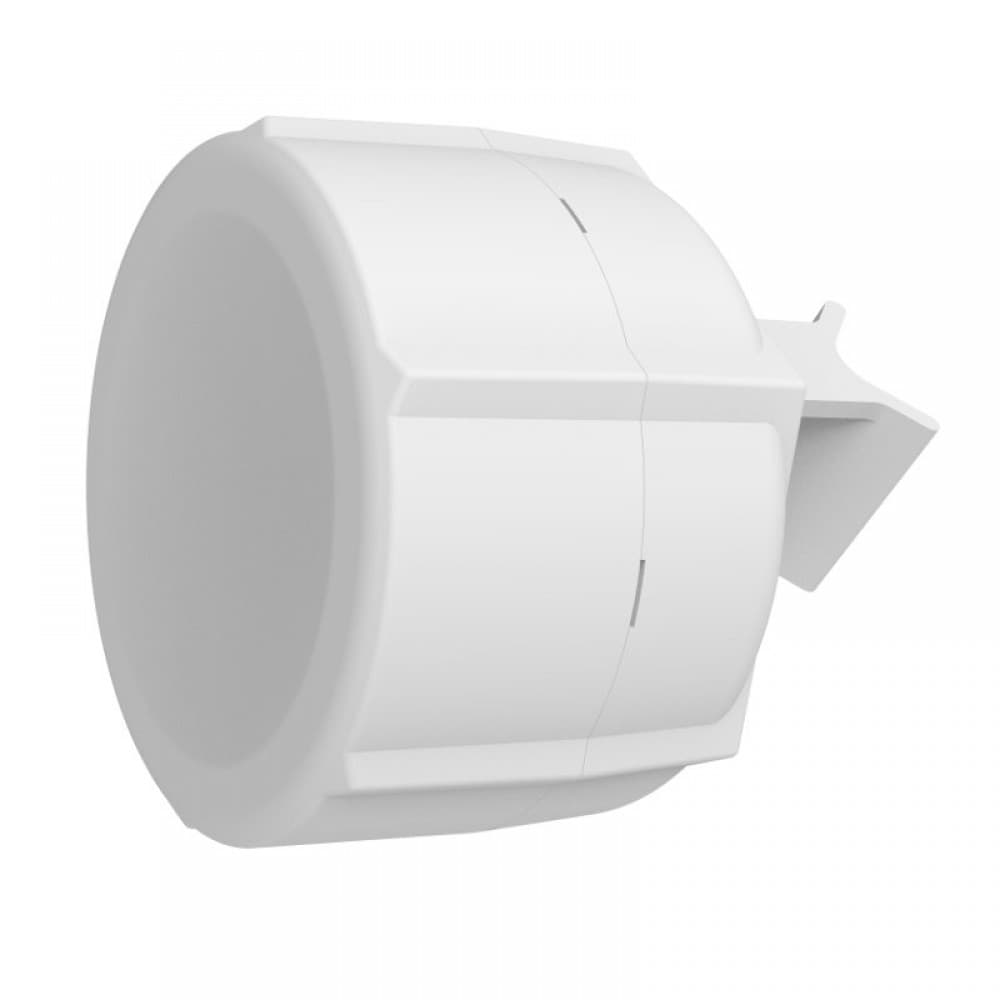

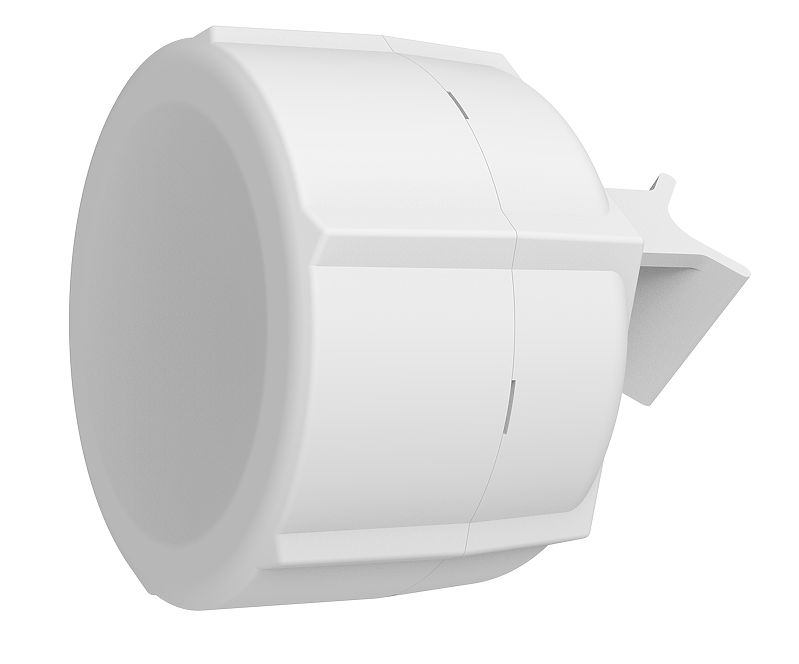

SXT LTE kit

Name: SXT LTE kit
Brand: MikroTik
SKU: RBSXTR&R11e-LTE
Price: 297.98 AZN
Availability: InStock

323,00 ₼297,98 ₼-8%

MikroTik SXT LTE kit - SXT 2G/3G/4G/LTE CPE, 10.5dBi 60 degree antenna, 2x Ethernet ports (one with PoE out), two SIM, 650MHz CPU, 64MB RAM, enclosure, PoE and PSU (RouterOS L3), International bands

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

RBSXTR&R11e-LTE includes LTE modem that support International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specifications

Details
Product code	RBSXTR&R11e-LTE
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	140 x 140 x 103 mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	22 W
Max power consumption without attachments	5 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2
PoE out	Passive PoE up to 57V
Max out per port output (input < 30 V)	600 mA
Max out per port output (input > 30 V)	400 mA
Max total out (A)	600 mA

Mobile

Details
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz)
