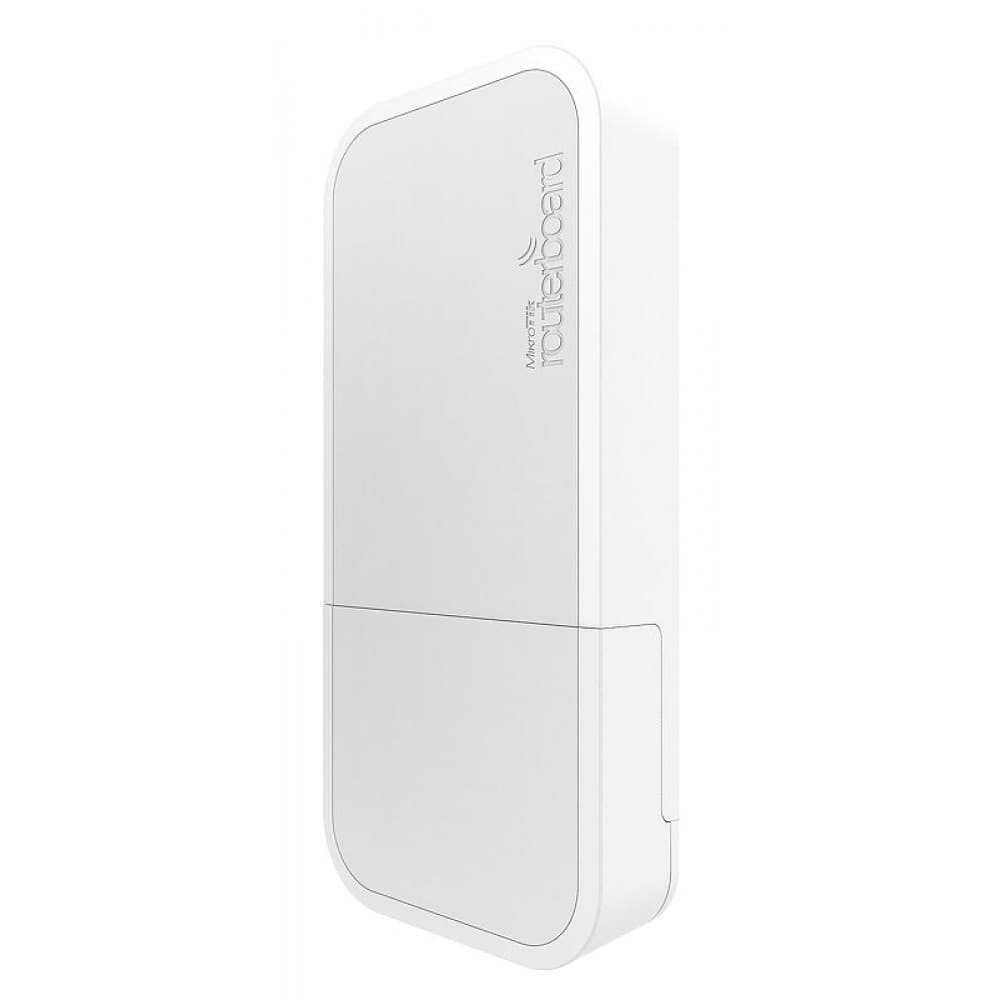

Small dual-band 2.4 / 5GHz white weatherproof wireless access point for mounting on a ceiling, wall or pole
The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one Gigabit Ethernet port, it supports 802.11ac technology and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.
The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case - so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
We sell international version with working frequencies 2412-2484MHz and 5150MHz-5875MHz range.
Specifications
| Details |
|---|
| Product code | RBwAPG-5HacT2HnD |
| Architecture | MIPSBE |
| CPU | QCA9556 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 185 x 85 x 30 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| |
Wireless capabilities
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9556 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC1600 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Powering
| Details |
|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-57 V |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 25 | -95 |
| 11MBit/s | 25 | -90 |
| 6MBit/s | 25 | -95 |
| 54MBit/s | 23 | -80 |
| MCS0 | 25 | -95 |
| MCS7 | 22 | -74 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 25 | -81 |
| MCS0 | 25 | -96 |
| MCS7 | 24 | -77 |
| MCS9 | 23 | -72 |

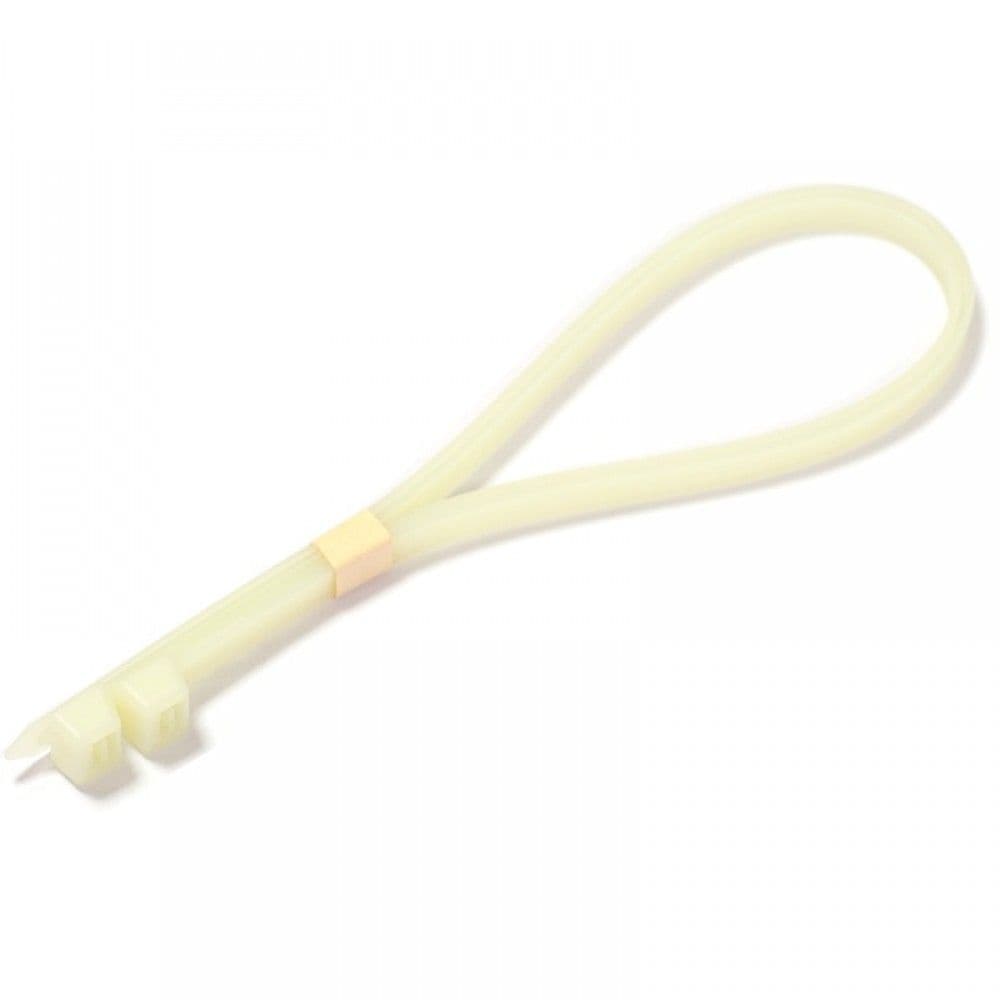

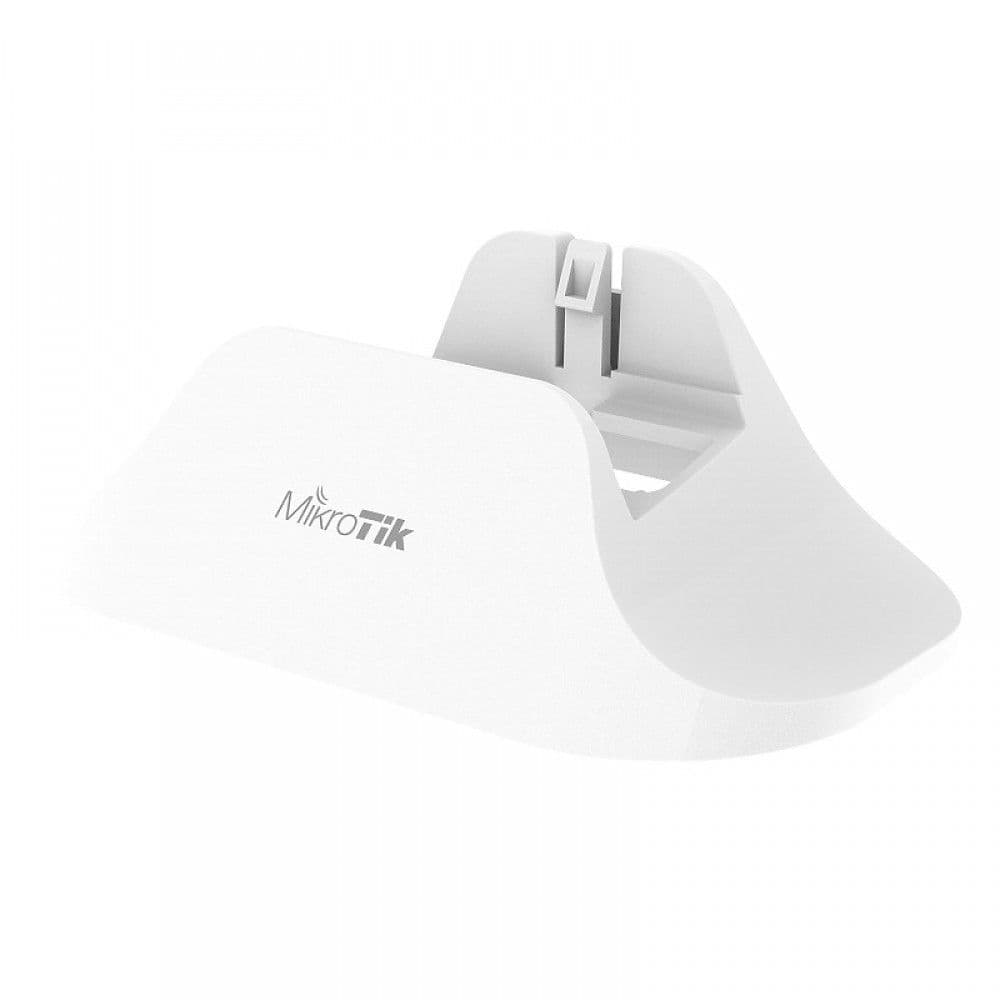

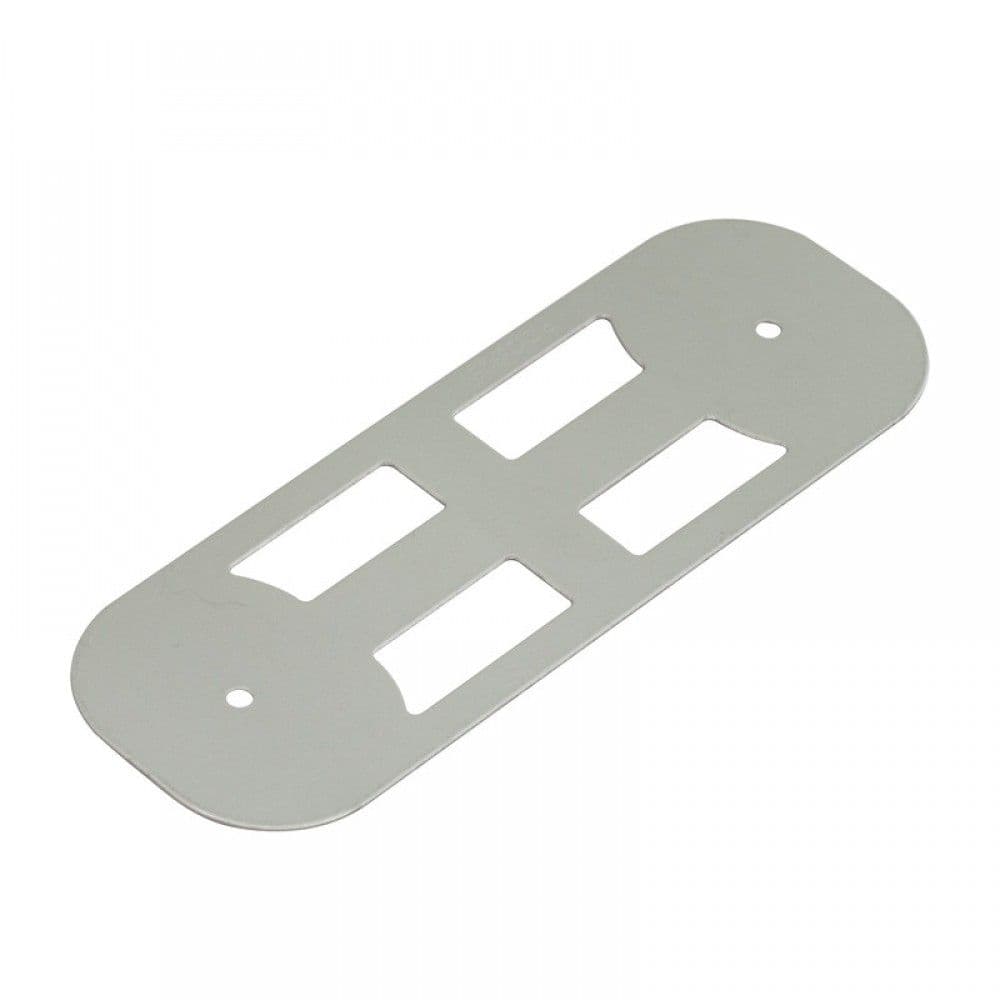

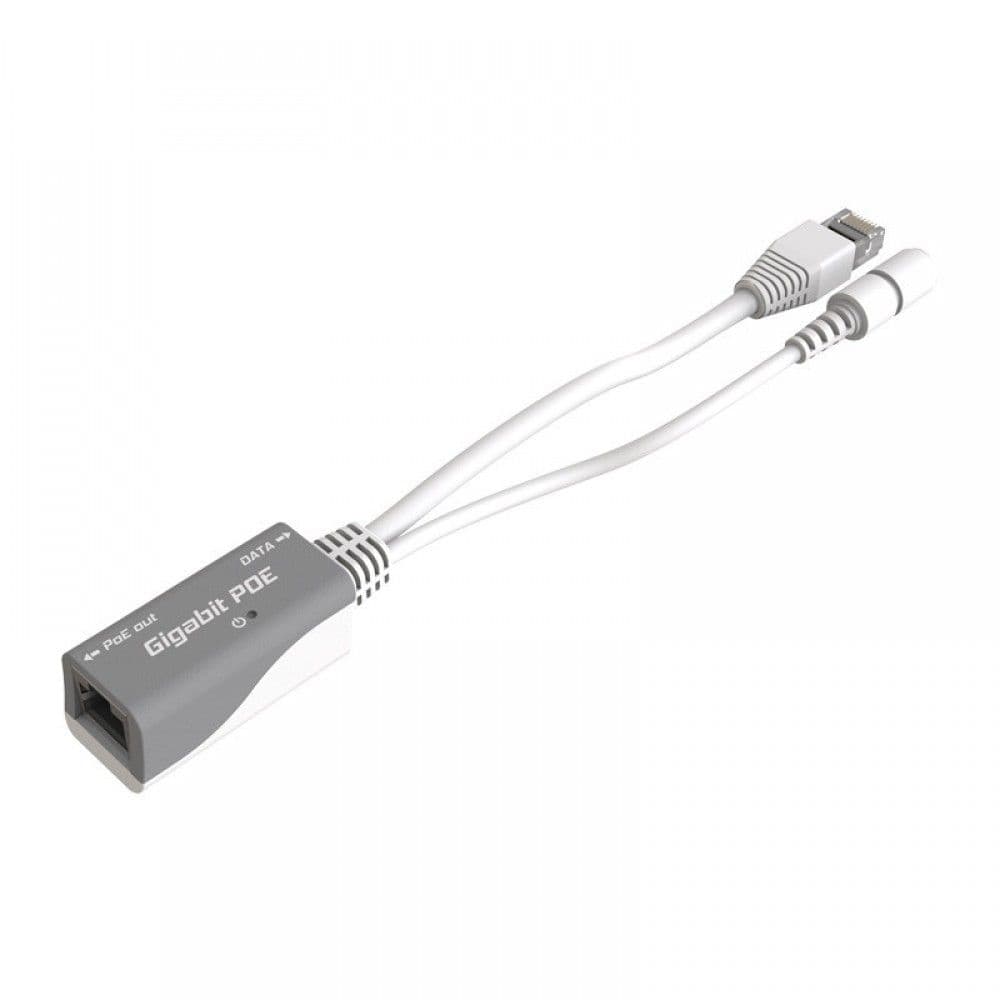

Included parts
