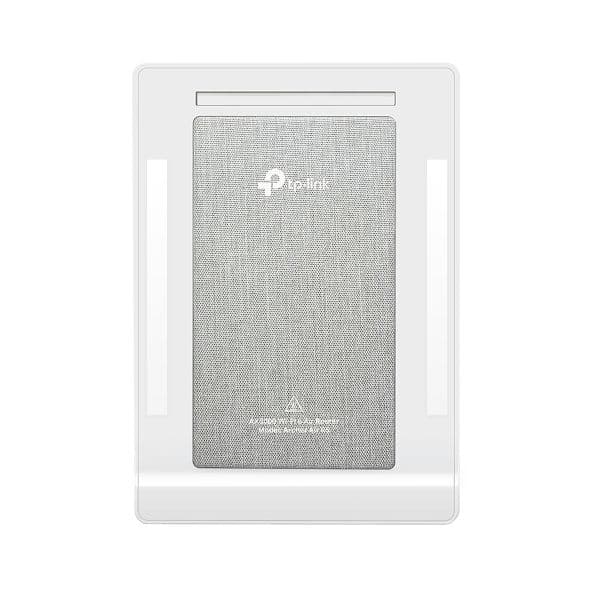

ARCHER AIR R5 - AX3000 Dual-Band Wi-Fi 6 Air Router

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX30005 GHz: 2402 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

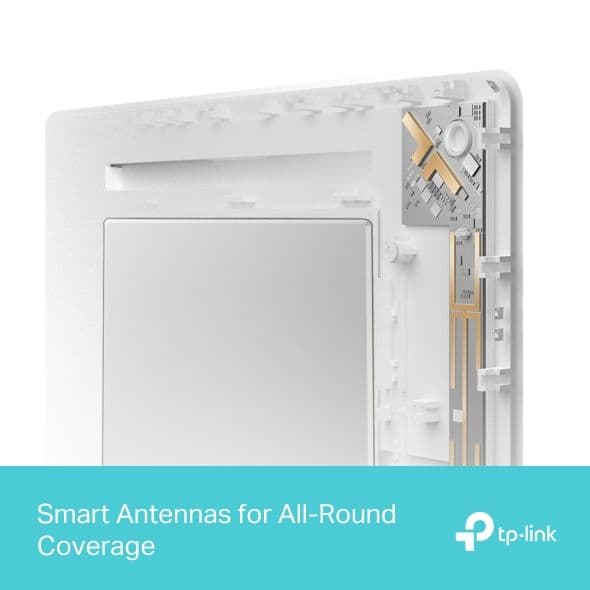

3 Bedroom Houses4× High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage

WiFi Capacity

HighDual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion4 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeShield SecurityReal-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server• PPTP VPN Server

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× Gigabit WAN Port1× Gigabit LAN Port

Buttons

WPS ButtonReset Button

Protocols

IPv4IPv6

Service Kits

HomeShieldLearn More>

Parental Controls

HomeShield Parental ControlsCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDNSDNS• Port: 53 Protocol: TCP & UDPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20001 Protocol: TCP• Port: 30001 Protocol: TCP• Port: 20002 Protocol: UDP

Dimensions (W×D×H)

8.3 × 5.5 × 0.4 in(210 × 140 × 10.8 mm)

Package Content

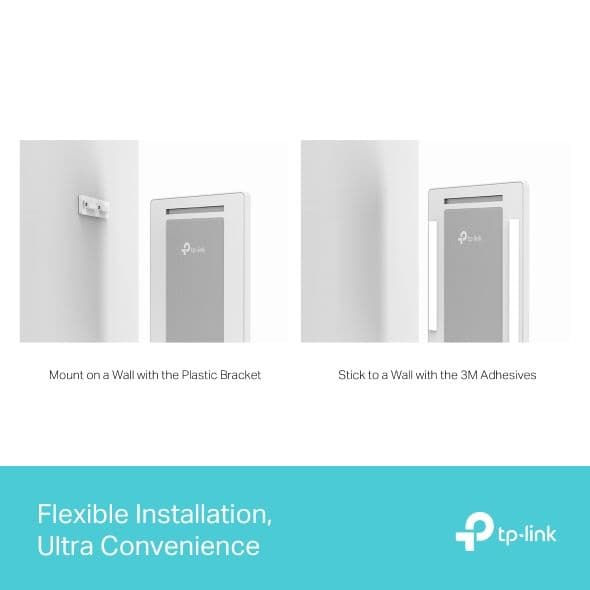

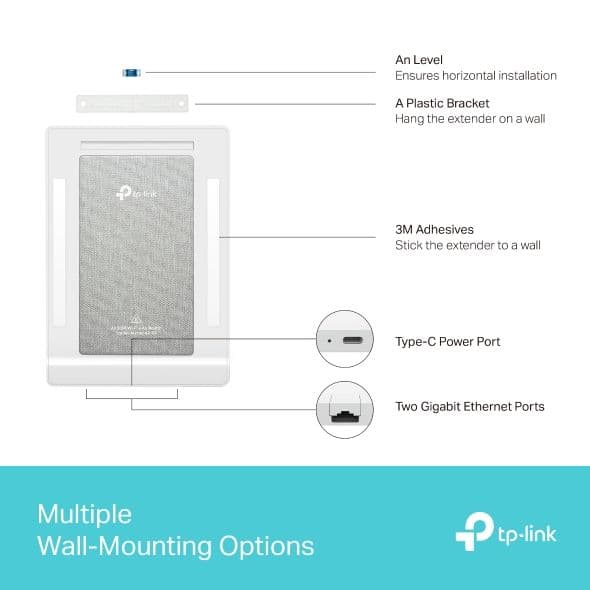

Wireless Router Archer Air R5Quick Installation GuidePower AdapterPlastic BracketGigabit Network CableInstallation Accessories

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensing

EasyMesh

Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.Learn More about EasyMesh>

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE: <20dBm(2.4GHz)<23dBm(5.15GHz~5.35GHz)<30dBm(5.47GHz~5.725GHz)FCC:<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity

5GHz:11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm2.4GHz:11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

Input Power

12V/2A
