TP-Link

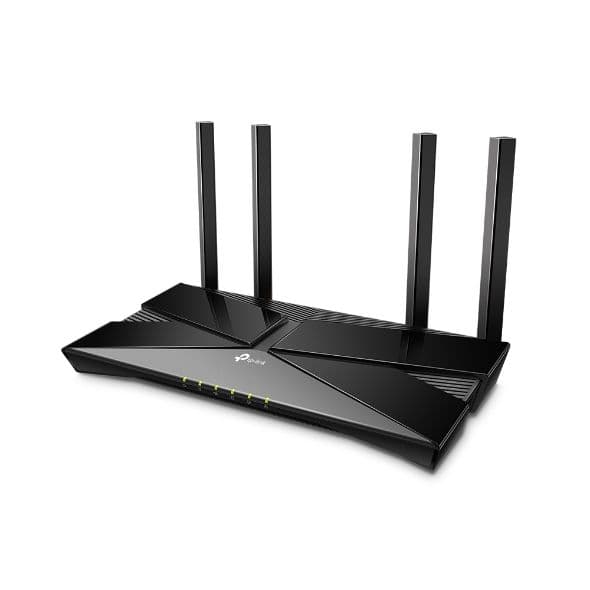

ARCHER AX10 - AX1500 Wi-Fi 6 Router

0,00 ₼

Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).†
Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.
Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.†
Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
Easy Setup—Finish your network upgrade in minutes with Tether app.
Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Low stock

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX15005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 300 Mbps (802.11n)

WiFi Range

3 Bedroom Houses4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage

WiFi Capacity

HighDual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion4 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× Gigabit WAN Port4× Gigabit LAN Ports

Buttons

WPS/Wi-Fi ButtonPower On/Off ButtonLED On/Off ButtonReset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

10.2 × 5.3 ×1.5 in(260.2 × 135.0 × 38.6 mm)

Package Content

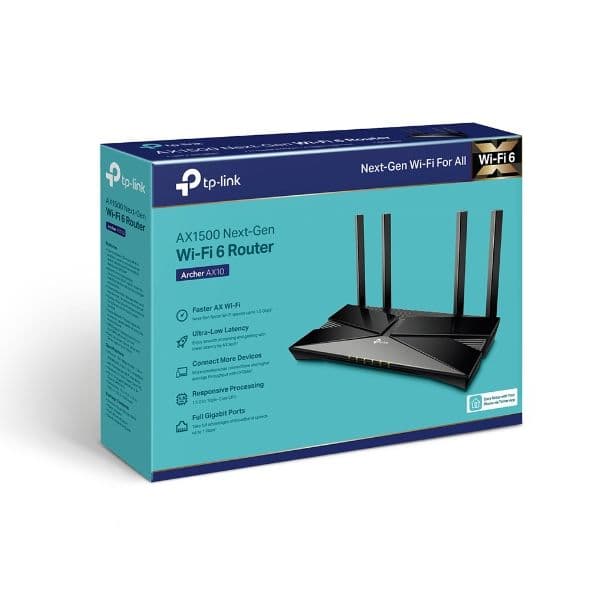

Wi-Fi Router Archer AX10Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 1.5 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

5 GHz:11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm2.4 GHz:11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm

Processor

1.5 GHz Triple-Core CPU

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
