TP-Link

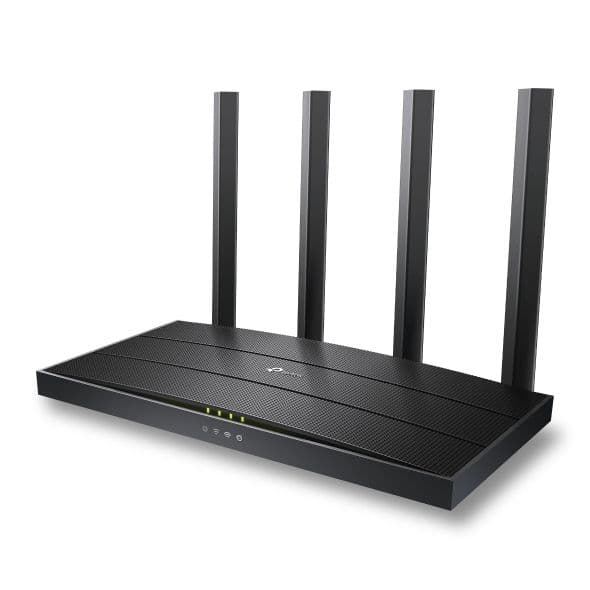

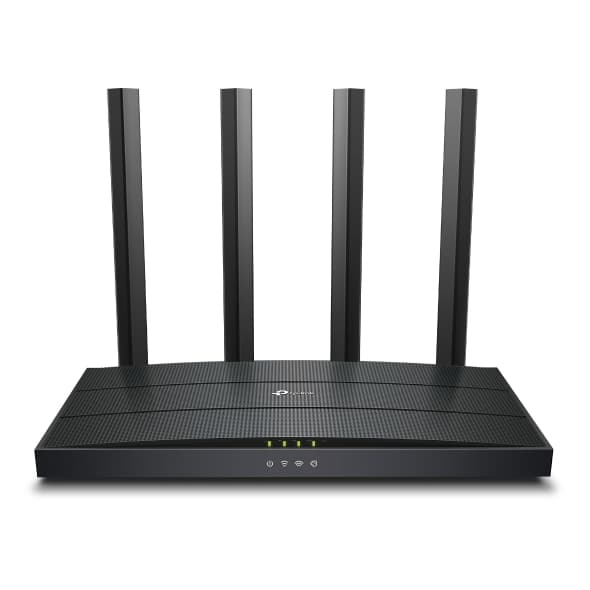

ARCHER AX12 - AX1500 Wi-Fi 6 Router

0,00 ₼

Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)15
Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.24
More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.3
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.

Low stock

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX15005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2-3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

HighDual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

WiFi Encryption

WPA2-PSK WPA2-PSK/WPA-PSKWPA3-PersonalWPA3-Personal/WPA2-PSKWPA2-EnterpriseWPA/WPA2-Enterprise encryptions

Ethernet Ports

1× Gigabit WAN Port3× Gigabit LAN Ports

Buttons

WPS/Reset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Quality of Service

QoS by Device

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDNSDNS• Port: 53 Protocol: TCP & UDPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20001 Protocol: TCP• Port: 30001 Protocol: TCP• Port: 20002 Protocol: UDP

Dimensions (W×D×H)

8.5 × 4.6 ×1.3 in(215 × 117 × 32 mm)

Package Content

Wireless Router Archer AX12Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 1 A

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MACOS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserCable or DSL ModemSubscription with an internet service provider (for internet access)

WiFi Transmission Power

CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

5 GHz:11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm2.4 GHz:11g 6Mbps: -96 54Mbps: -80HT20-MCS0: -97 MCS7: -78HT40-MCS0: -94 MCS7: -75
