TP-Link

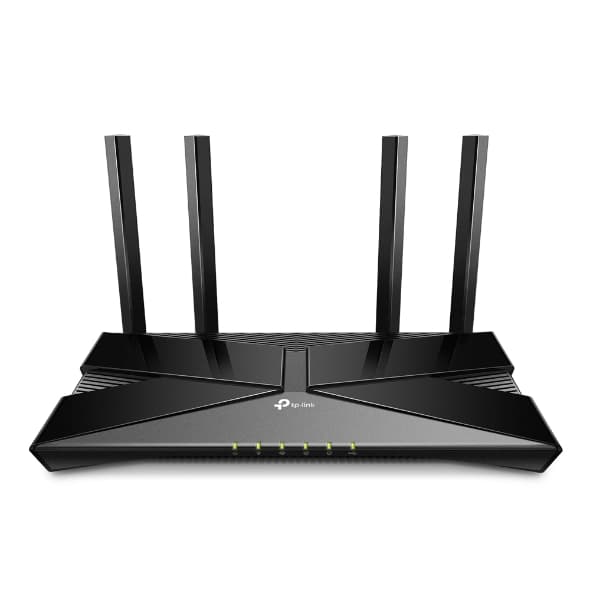

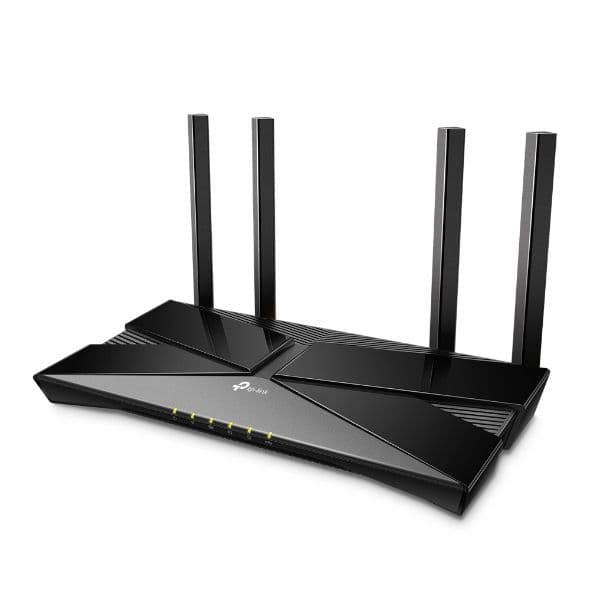

Archer AX20 - AX1800 Dual-Band Wi-Fi 6 Router

0,00 ₼

Dual-Band Wi-Fi 6 – Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-Gen 1.8 Gbps Speeds – Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.†
Connect More Devices – Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§
Quad-Core Processing – The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth.

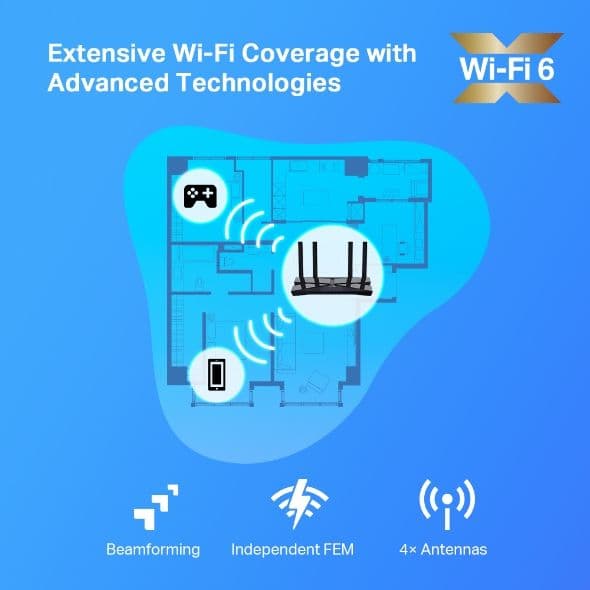

Extensive Coverage – Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
OneMesh Compatible – Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
Increased Battery Life – Target Wake Time technology reduces your devices' power consumption to extend their battery life.‡
USB Easy Sharing – A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible – Supports all previous 802.11 standards and all Wi-Fi devices.

Low stock

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX18005 GHz: 1201 Mbps (802.11ax)2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage

WiFi Capacity

HighDual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupation4 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

VPN Client

• Open VPN Client• PPTP VPN Client• L2TP VPN Client

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× Gigabit WAN Port4× Gigabit LAN Ports

USB Support

1× USB 2.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia ServerSamba Server

Buttons

WPS/Wi-Fi ButtonPower On/Off ButtonLED On/Off ButtonReset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

10.2 × 5.3 ×1.5 in(260.2 × 135.0 × 38.6 mm)

Package Content

Wi-Fi Router Archer AX20Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 1.5 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

5 GHz:11a 6Mbps:-97dBm11a 54Mbps:-79dBm11ac VHT20_MCS0:-96dBm11ac VHT20_MCS11:-66dBm11ac VHT40_MCS0:-94dBm11ac VHT40_MCS11:-63dBm11ac VHT80_MCS0:-91dBm11ac VHT80_MCS11:-60dBm11ax HE20_MCS0:-95dBm11ax HE20_MCS11:-63dBm11ax HE40_MCS0:-92dBm11ax HE40_MCS11:-60dBm11ax HE80_MCS0:-89dBm11ax HE80_MCS11:-58dBm2.4 GHz:11g 6Mbps:-97dBm11n HT20_MCS0:-97dBm11n HT20_MCS7:-78dBm11n HT40_MCS0:-95dBm11n HT40_MCS7:-75dBm11ac VHT20_MCS0:-96dBm11ac VHT20_MCS11:-67dBm11ac VHT40_MCS0:-94dBm11ac VHT40_MCS11:-64dBm11ax HE20_MCS0:-96dBm11ax HE20_MCS11:-64dBm11ax HE40_MCS0:-93dBm11ax HE40_MCS11:-61dBm

Processor

1.5 GHz Quad-Core CPU

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
