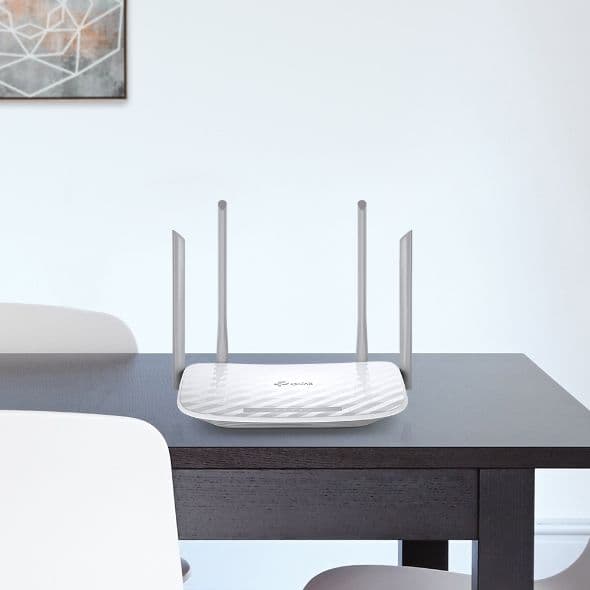

ARCHER C50 - AC1200 Wireless Dual Band Router

Standards and Protocols

Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n)

WiFi Range

3 Bedroom Houses4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

MediumDual-BandAllocate devices to different bands for optimal performance2×2 MU-MIMOSimultaneously communicates with multiple MU-MIMO clients

Working Modes

Router ModeAccess Point ModeRange Extender Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

WiFi Encryption

WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports

Buttons

WPS/Wi-Fi ButtonPower On/Off ButtonReset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

NO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

9.1 × 5.7 × 1.5 in(229.9 × 144.2 × 36.9 mm)

Package Content

Wi-Fi Router Archer C50Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

9 V ⎓ 0.85 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE EIRP:<20dBm(2.4GHz)<23dBm(5GHz)FCC:<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity

5GHz:11a 54M: -73dBm11ac VHT20 MCS8: -68dBm11ac VHT40 MCS9: -64dBm11ac VHT80 MCS9: -60dBm2.4GHz:11g 54M: -76dBm11n HT20 MCS7: -74dBm11n HT40 MCS7: -71dBm

Processor

Single-Core CPU
