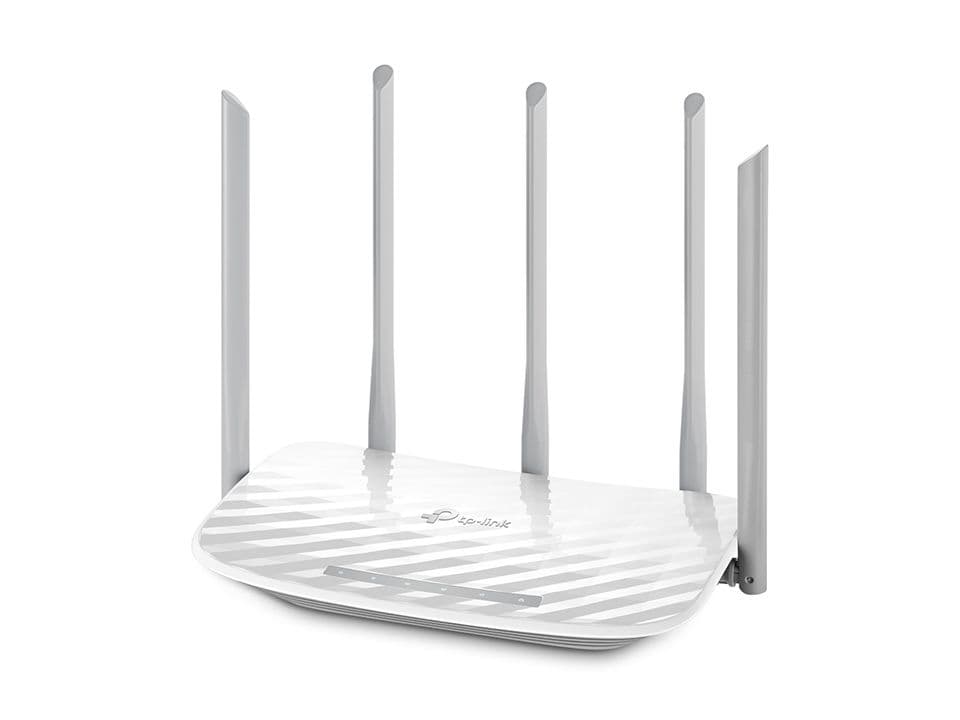

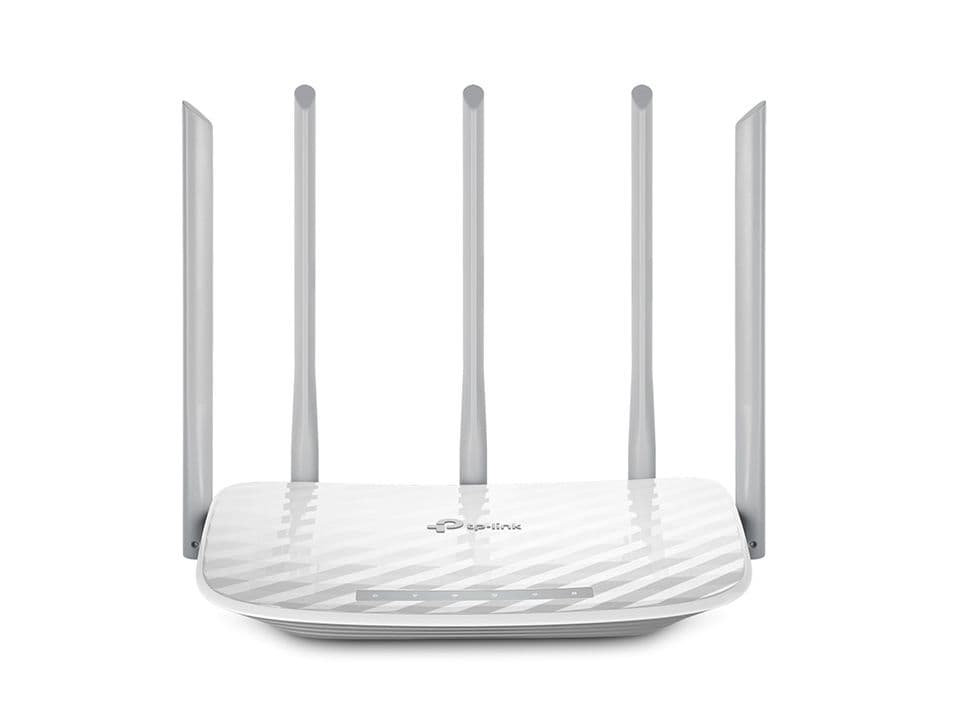

ARCHER C60 - AC1350 Wireless Dual Band Router

Standards and Protocols

Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC13505 GHz: 867 Mbps (802.11ac)2.4 GHz: 450 Mbps (802.11n)

WiFi Range

3 Bedroom Houses5× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

MediumDual-BandAllocate devices to different bands for optimal performanceMU-MIMOSimultaneously communicates with multiple MU-MIMO clients

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

WiFi Encryption

WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)

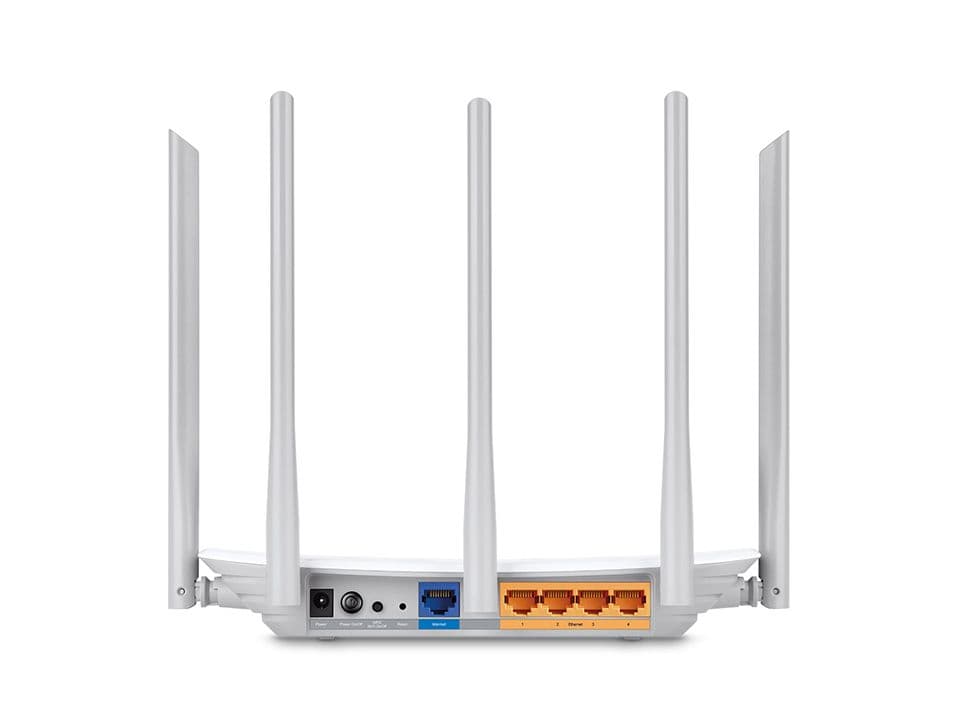

Ethernet Ports

1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports

Buttons

Wi-Fi On/Off ButtonPower On/Off ButtonWPS/Reset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

9.1 × 5.7 × 1.5 in(230 × 144 × 37 mm)

Package Content

Wi-Fi Router Archer C60Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 1 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE EIRP:<20dBm(2.4GHz)<23dBm(5GHz)FCC: <30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity

5GHz:11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;11ac HT80 mcs9:-62dBm;2.4GHz:11g 54Mbps:-78dBm;11n HT20 mcs7:-74dBm;11n HT40 mcs7:-71dbm；

Processor

Qualcomm CPU
