ARCHER C7 - AC1750 Wireless Dual Band Gigabit Router

Standards and Protocols

Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC17505 GHz: 1300 Mbps (802.11ac)2.4 GHz: 450 Mbps (802.11n)

WiFi Range

3 Bedroom Houses3× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

MediumDual-BandAllocate devices to different bands for optimal performance

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

WiFi Encryption

WPAWPA2WPA/WPA2-Enterprise (802.1x)

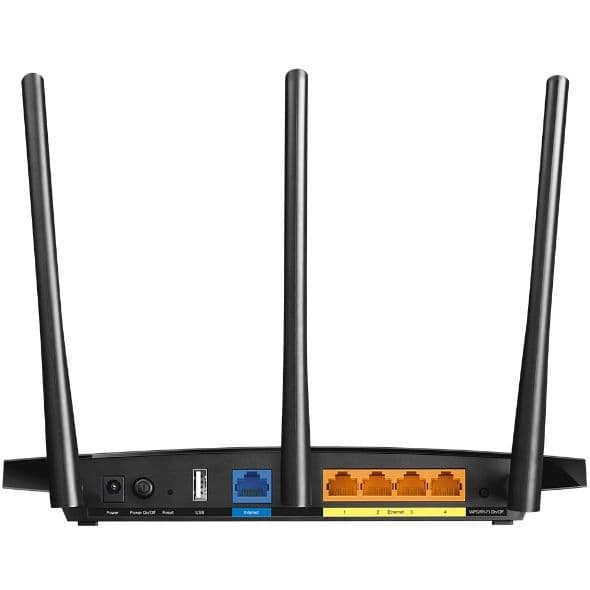

Ethernet Ports

1× Gigabit WAN Port4× Gigabit LAN Ports

USB Support

1× USB 2.0 PortSupported Partition Formats:NTFS, FAT32Supported Functions:FTP ServerMedia ServerSamba Server

Buttons

Wi-Fi On/Off ButtonPower On/Off ButtonWPS/Reset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Dimensions (W×D×H)

9.6 × 6.4 × 1.3 in(243 × 160.6 × 32.5 mm)

Package Content

Wi-Fi Router Archer C7Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 1.5 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE:<20dBm(2.4GHz)<23dBm(5GHz)FCC:<30dBm

WiFi Reception Sensitivity

5GHz:11a 6Mbps-96dBm11a 54Mbps: -79dBm11ac HT20: -71dBm11ac HT40: -66dBm11ac HT80: -63dBm2.4GHz:11g 54M: -77dBm11n HT20: -74dBm11n HT40: -72dBm

Processor

Qualcomm CPU

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
