TP-Link

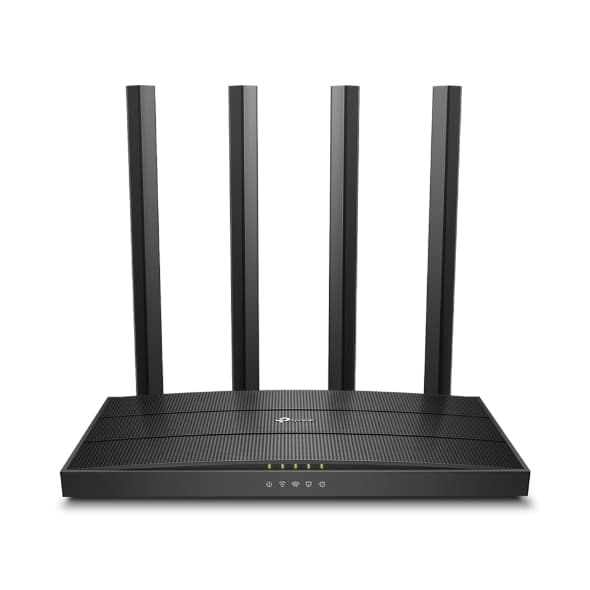

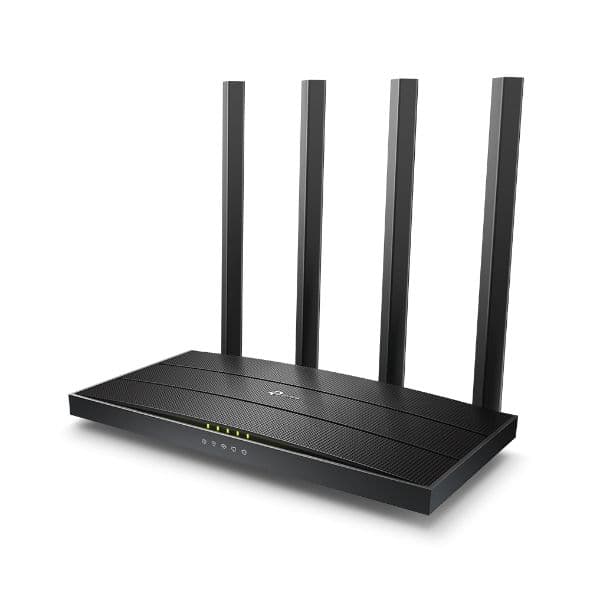

Archer C80 - AC1900 Wireless MU-MIMO Wi-Fi Router

0,00 ₼

802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.

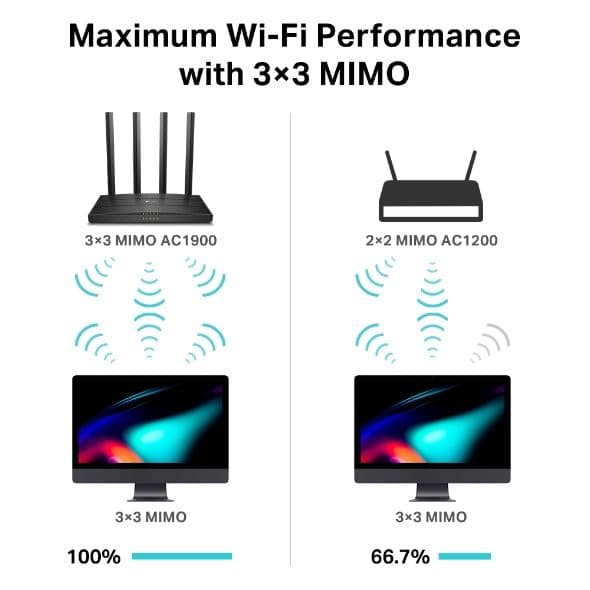

3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.
Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.
MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.
Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

Low stock

Standards and Protocols

Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC19005 GHz: 1300 Mbps (802.11ac)2.4 GHz: 600 Mbps (802.11n)

WiFi Range

3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

MediumDual-BandAllocate devices to different bands for optimal performance3×3 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

WiFi Encryption

WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)

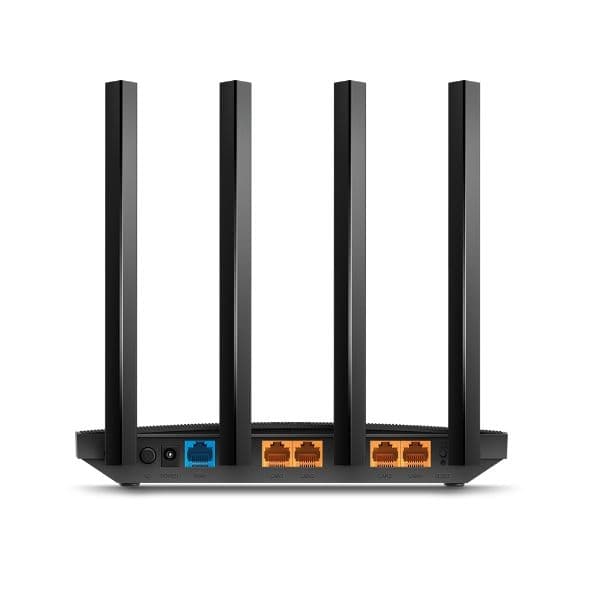

Ethernet Ports

1× Gigabit WAN Port4× Gigabit LAN Ports

Buttons

WPS/Wi-Fi ButtonPower On/Off ButtonReset Button

Protocols

IPv4IPv6

Parental Controls

URL FilteringTime Controls

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpageCheck Web Emulator>

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDNSDNS• Port: 53 Protocol: TCP & UDPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20002 Protocol: UDPAlexa serviceDetect Alexa-enabled devices in the LAN• Port: 5353 Protocol: UDP

Dimensions (W×D×H)

8.5 × 4.6 × 1.26 in(215 × 117 × 32 mm)

Package Content

Wi-Fi Router Archer C80Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

US Version12 V ⎓ 1.5 AEU Version12 V ⎓ 1 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE:<20dBm(2.4GHz)<23dBm(5.15GHz~5.25GHz)FCC:<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity

5GHz:11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm2.4GHz:11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm

Processor

1.2 GHz CPU

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
