TP-Link

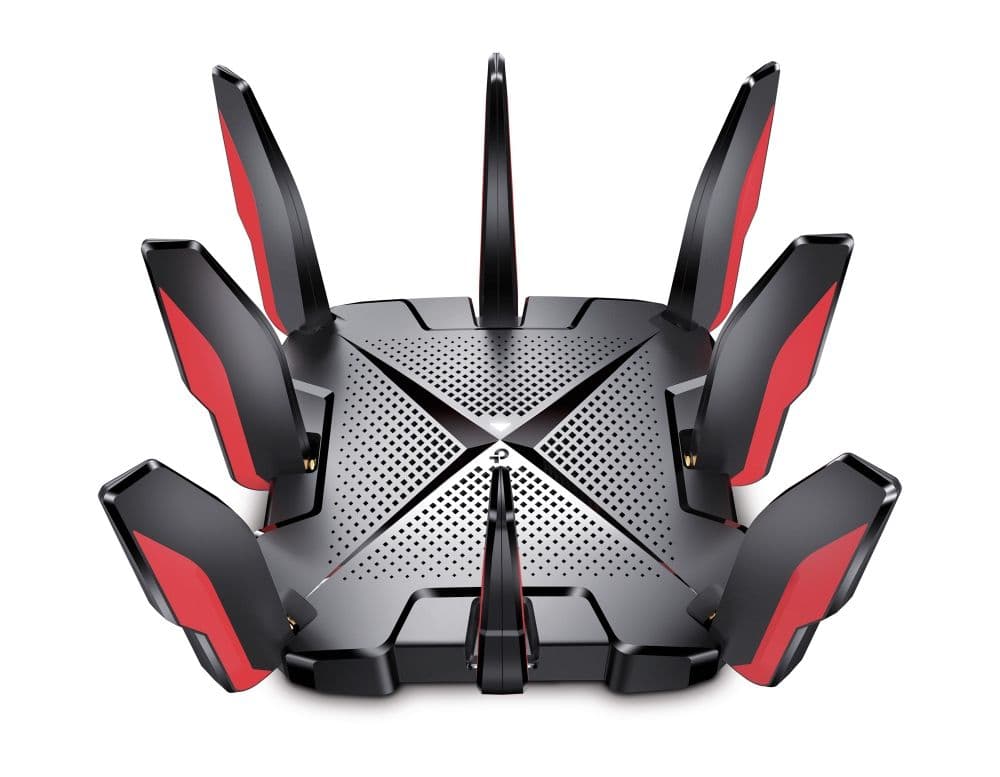

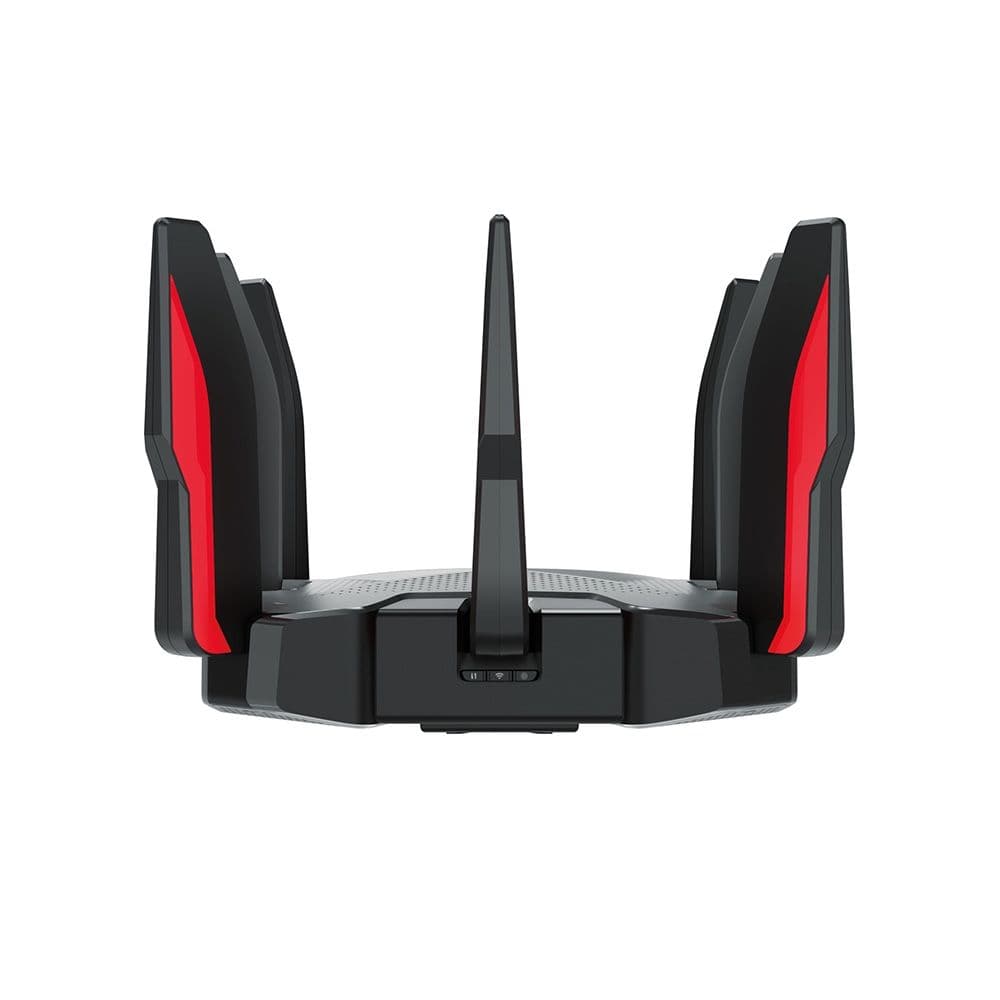

ARCHER GX90 - AX6600 Tri-Band Wi-Fi 6 Gaming Router

0,00 ₼

Game Band – Tri-Band structure provides a 4.8 Gbps Game Band exclusive for your gaming rigs and bings pure immersion.
Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive.
Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
Game Protector – Keep your accounts and documents safe with Homecare™ security system.
2.5 Gbps Wired Connection – Unleash the potential of your next-level bandwidth network with a 2.5 Gbps WAN/LAN port.
Powerful Processing – 1.5 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Low stock

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX66005 GHz: 4804 Mbps (802.11ax, HE160)5 GHz: 1201 Mbps (802.11ax)2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

4 Bedroom Houses8× Detachable High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage4T4RMultiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity

Very HighTri-BandAllocate devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion8 StreamsConnect your devices to more bandwidth

Working Modes

Router ModeAccess Point Mode

Network Security

SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeCare™ AntivirusMalicious Site CheckerPort Intrusion PreventionInfected Device IsolationNotification and Log

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

VPN Server

OpenVPNPPTP

VPN Client

• Open VPN Client• PPTP VPN Client• L2TP VPN Client

WiFi Encryption

WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

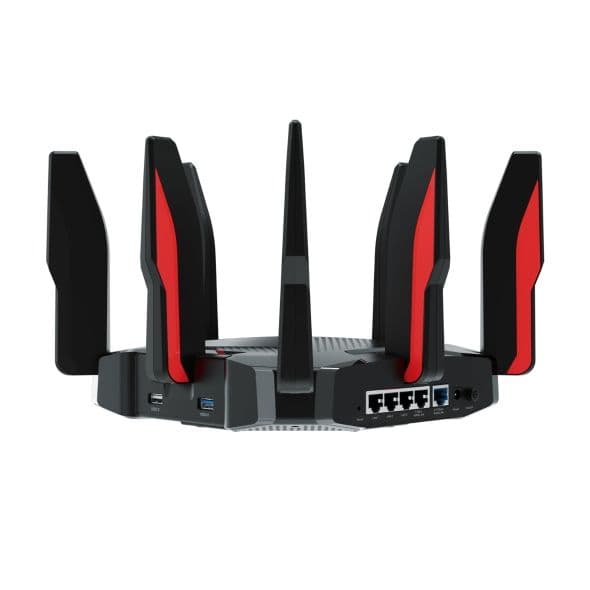

1× 2.5 Gbps WAN/LAN Port1× Gigabit WAN/LAN Port3× Gigabit LAN Ports

USB Support

1× USB 3.0 Port1× USB 2.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia ServerSamba Server

Buttons

Wi-Fi On/Off ButtonPower On/Off ButtonLED On/Off ButtonWPS ButtonReset Button

Protocols

IPv4IPv6

Service Kits

HomeCare™

Parental Controls

HomeCare™ Parental ControlsCustom ProfilesContent FilteringApp BlockURL FilteringTime Limit Time Schedule (Bedtime)Log Insight

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

Game Accelerator QoSGeForce NOW™ QoSQoS by DeviceHomeCare™ QoSQoS by Application

Cloud Service

Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-LinkNO-IPDynDNS

Management Features

Tether AppWebpage

Dimensions (W×D×H)

8.3 × 8.3 × 2.0 in(212 × 212 × 51.8 mm)

Package Content

Wi-Fi Router Archer GX90Power AdapterRJ45 Ethernet CableQuick Installation Guide

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power

12 V ⎓ 5 A

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE:<20dBm(2.4GHz)<23dBm(5.15GHz~5.35GHz)<30dBm(5.47GHz~5.725GHz)FCC:<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity

5 GHz-1:11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm5 GHz-2 (Gaming Band):11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm2.4 GHz:11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm

Game Center

Game AcceleratorDetects and optimizes gaming streams to keep latency as low as possibleGeForce NOW™ QoSPrioritizes GeForce NOW™ streaming over other internet activities, delivering a smooth cloud gaming experienceGame StatisticsCheck real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detailGame ProtectorKeep your accounts and system safe with HomeCare™ antivirus protection

Processor

1.5 GHz Quad-Core CPU

OneMesh™

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>
