TP-Link

ARCHER MR200 - AC750 Wireless Dual Band 4G LTE Router

0,00 ₼

Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Powerful, integrated antennas provide stable wireless connections and better coverage

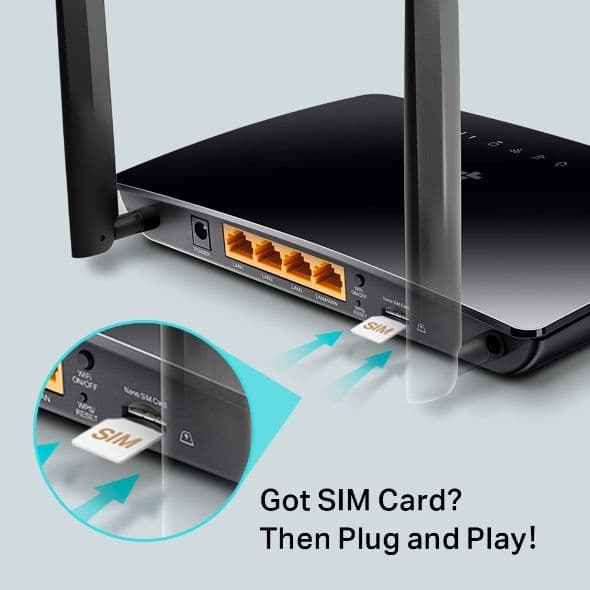

Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band

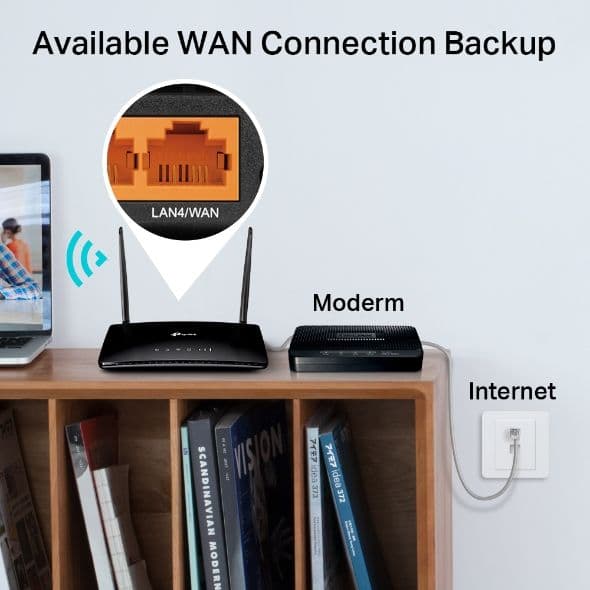

Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

Low stock

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

VPN Server

PPTP VPN, OpenVPN

Protocols

Supports IPv4 and IPv6

Quality of Service

Prioritizes network traffic by device or application

DHCP

Server, DHCP Client List, Address Reservation

Management Features

Access Control, Local Management, Remote Management, reboot schedule

Package Content

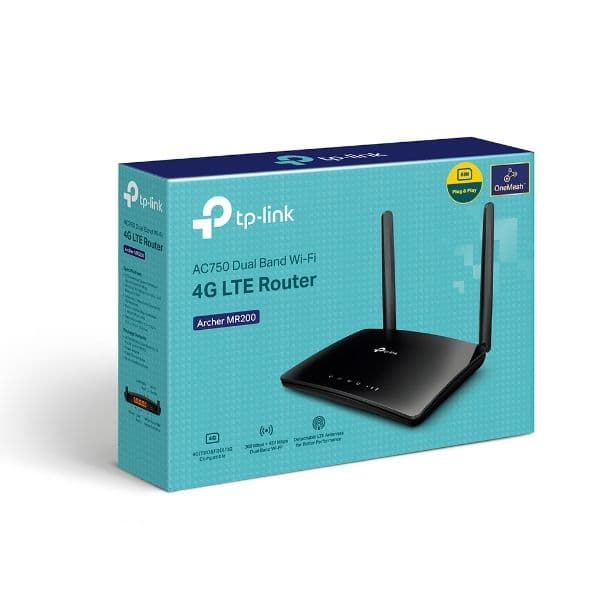

AC750 Wireless Dual Band 4G LTE Router Archer MR200RJ45 Ethernet CablePower AdapterQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browserNano SIM Card

Interface

3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot

Button

WPS/RESET Button, Wi-Fi ON/OFF Button

Dimensions ( W x D x H )

6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

Antenna

2 Detachable External 4G LTE Antennas

Operating Modes

3G/4G Router, Wireless Router

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP, TP-Link DDNS

Firewall Security

DoS, SPI Firewall, IP and MAC Address Binding

Certification

CE, RoHS

Network Type

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity

5 GHz:11a 54M: -78 dBm11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm2.4 GHz:11g 54M: -74 dBm11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

External Power Supply

12V/1A

WAN Failover

Yes

Transmission Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
