TP-Link

ARCHER MR400 - AC1200 Wireless Dual Band 4G LTE Router

0,00 ₼

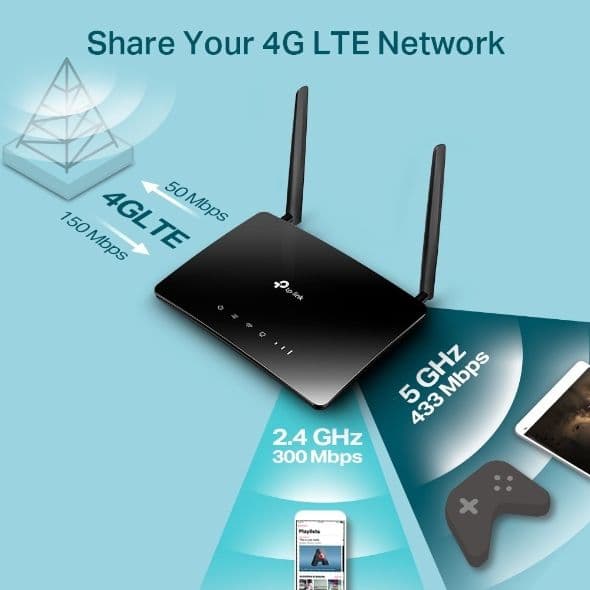

Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

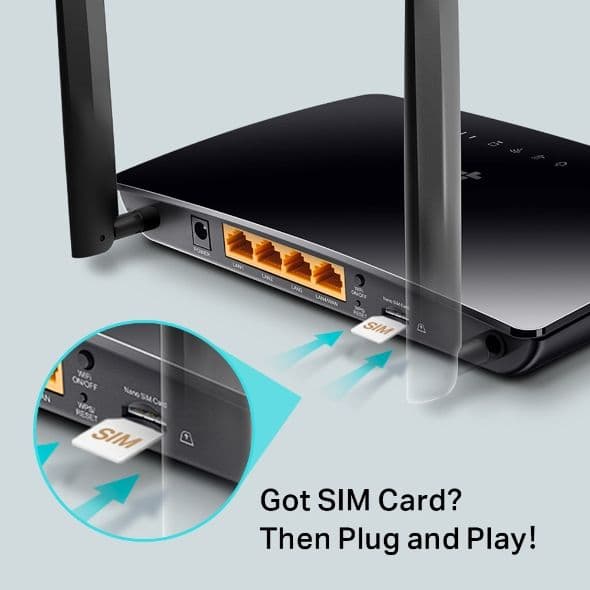

Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas

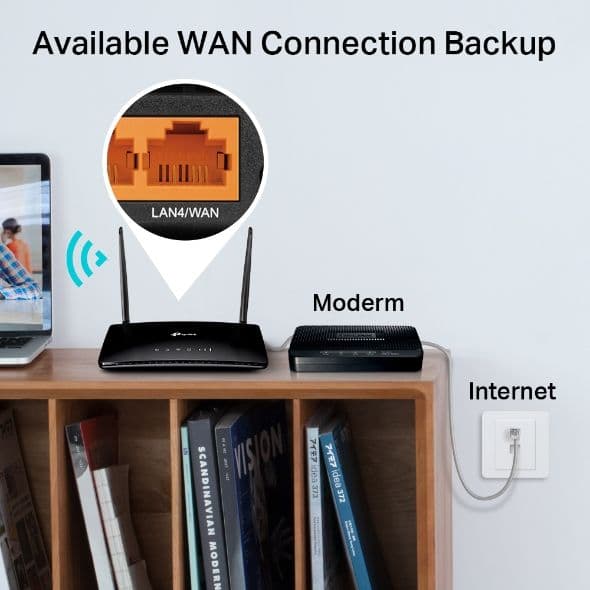

Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Low stock

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

Protocols

Supports IPv4 and IPv6

Quality of Service

Prioritizes network traffic by device or application

DHCP

Server, Client, DHCP Client List, Address Reservation

Management Features

Access Control, Local Management, Remote Managementreboot schedule

Package Content

AC1200 Wireless Dual Band 4G LTE Router, Archer MR400RJ45 Ethernet CablePower AdapterQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsersNano SIM Card

Interface

3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Micro SIM Card Slot

Button

WPS/RESET Button, Wi-Fi ON/OFF Button

Dimensions ( W x D x H )

6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

Antenna

2× Detachable External 4G LTE Antennas

Operating Modes

3G/4G Router, Wireless Router

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

Certification

CE, RoHS

Network Type

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300Mbps at 2.4GHz, 867Mbps at 5GHz

Reception Sensitivity

5 GHz:11a 54M: -77 dBm11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm2.4 GHz:11g 54M: -74.5 dBm11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Access Control

Parental Control, Local Management Control

External Power Supply

12V/1A

WAN Failover

Yes

Transmission Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

VPN

PPTP VPN, OpenVPN
