TP-Link

ARCHER MR505 - 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

0,00 ₼

Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device.
Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection
Easy setup and management all by Tether app

Low stock

Guest Network

2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

Protocols

IPv4, IPv6

Parental Controls

URL Filtering, Time Controls

Quality of Service

Prioritizes network traffic by device

DHCP

Server, DHCP Client List, Address Reservation

Management Features

TP-Link Cloud, Local Management, Remote Management

Package Content

4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR5051.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Power Supply

12V/1.5A

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Interface

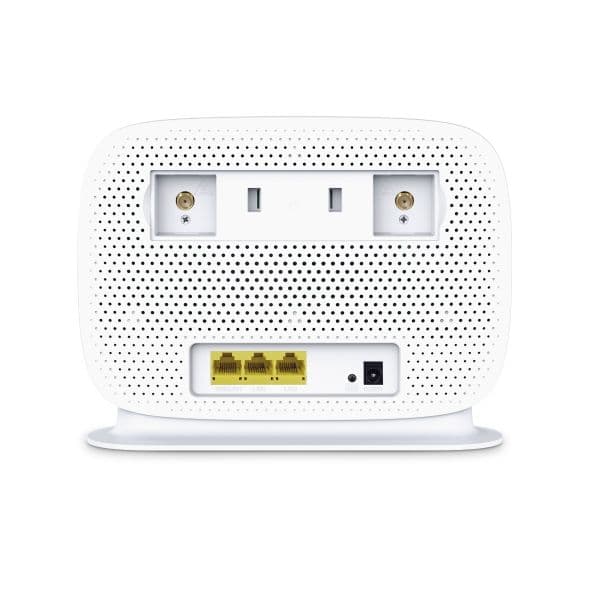

1 × 10/100/1000 Mbps LAN/WAN Port2 × 10/100/1000 Mbps LAN Ports1 × Nano SIM Card Slot2 × External SMA-F Antenna Interface

Dimensions ( W x D x H )

212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)

Antenna

2 Detachable External LTE Antennas

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

Certification

CE, RoHS

Network Type

Compatible with the majority of mobile operators and supports 4G/3G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8(2100/850/900 MHz)

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity

5 GHz: 11a 54M: -77 dBm11ac HT20: -73 dBm11ac HT40: -68 dBm11ac HT80 : -64 dBm11n HT20: -77 dBm11n HT40: -73 dBm2.4 GHz: 11g 54M: -74 dBm11n HT20: -72 dBm11n HT40: -69 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Security

DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering

WAN Failover

Yes

Transmission Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

VPN

VPN Server: PPTP VPN, OpenVPN
