TP-Link

ARCHER NX200 - 5G AX1800 Wireless Dual-Band Gigabit Router

0,00 ₼

Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).

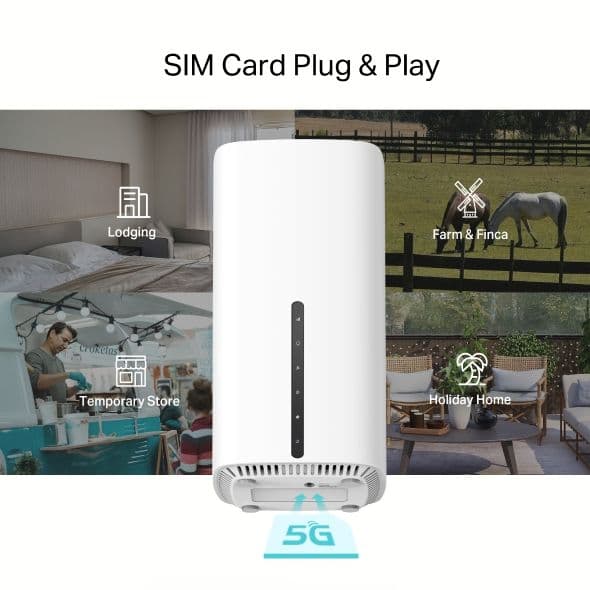

Plug & Play - Enjoy 5G network right after inserting a SIM card.
EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

Low stock

Guest Network

2.4 GHz Guest Network x 15 GHz Guest Network x 1

Protocols

IPv4, IPv6

Quality of Service

Prioritizes network traffic by device or application

DHCP

Server, DHCP Client List, Address Reservation

Management Features

TP-Link Cloud, Local Management, Remote Management

Network Services Enabled by Default

Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPIPv6 DHCP ServerIP address assignment (DHCPv6)• Port: 547 Protocol: UDPDNSDNS• Port: 53 Protocol: TCP App managementManage and configure device through app• Port: 22 Protocol: TCP• Port: 20002 Protocol: TCP

Package Content

5G AX1800 Wireless Dual-Band Gigabit Router Archer NX2001.5m Power AdapterRJ45 Ethernet CableQuick Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browserNano SIM Card

Interface

1 × 10/100/1000 Mbps LAN/WAN Port2 × 10/100/1000 Mbps LAN Ports1 × Nano SIM Card Slot2 × 5G/4G External Antenna Ports

Button

WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button

Dimensions ( W x D x H )

3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)

Antenna

8 × 5G/LTE Internal Antennas2 × Wi-Fi Internal Antennas

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

Firewall Security

DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

Certification

CE, RoHS

Network Type

5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz

Reception Sensitivity

5GHz：11a 54M：-80 dBm11ax HE20：-68 dBm11ax HE40：-65 dBm11ax HE80：-62 dBm11ac VHT20：-76 dBm11ac VHT40：-72 dBm11ac VHT80：-68 dBm11n HT20：-79 dBm11n HT40：-75 dBm2.4GHz11g 54M：-78 dBm11ax HE20：-65 dBm11ax HE40：-62 dBm11ac VHT20：-73 dBm11ac VHT40：-68 dBm11n HT20：-75 dBm11n HT40：-72 dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, WirelessStatistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Security

DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

Access Control

Parental Control, Local Management Control

External Power Supply

Power Adapter: Input Power 100-240v~50/60 Hz 0.6AOutput parameter 12VDC 2A

WAN Failover

Yes

Transmission Power

<23dBm (5.15GHz~5.35GHz)<30dBm (5.47GHz~5.71GHz)<20dBm (2.4GHz)

VPN

PPTP VPN, IPSec VPN , OpenVPN
