TP-Link

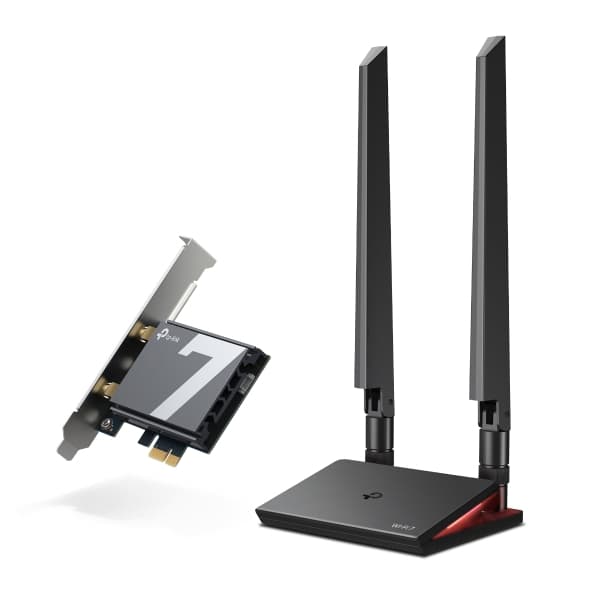

ARCHER TBE550E - BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

0,00 ₼

Unparalleled Tri-Band Speed — Boost your overall speeds up to 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
WiFi 7 Standard — Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation.
Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception.
Reliable Bluetooth 5.4 — Security and reliability improvement than last-gen high-speed Bluetooth 5.3
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
Fast Installation with USB Drive — Plug in the resource USB drive provided with Archer TBE550E to quickly drive without network. Enjoy the simple and friendly adapter installation.
Multicolor Wi-Fi Status Lighting — Equipped with vibrant LED lighting effects, the base provides an intuitive indication of network status, enhancing both functionality and aesthetics.
Supported Operating System — Windows 11(64-bit) only

Low stock

Package Content

Archer TBE550EMagnetized Antenna Base with 1m Braided RF Cable2x High-Performance AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource USB Drive

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Supported operating system: Windows 11(64-bit) only

Dimensions ( W x D x H )

3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)

Antenna

2× High-Performance Tri-Band Antennas

Certification

FCC/CE/IC/NCC/JRF/VCCI/BSMI

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax/be

Wireless Security

WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Accessories Specifications

Extension Cable Length: 1 mBluetooth Header Cable Length: 0.3 m

WLAN Signal Rate

6 GHz:11be: Up to 5760 Mbps(dynamic)11ax: Up t0 2402Mbps(dynamic)5 GHz:11be: Up to 2880 Mbps(dynamic)11ax: Up to 2402 Mbps(dynamic)11ac: Up to 1732 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz:11be: Up to 688 Mbps(dynamic)11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

6 GHz:11ax HE20 MCS0: -94 dBm11be EHT320 MCS13: -44dBm5 GHz:11ac VHT20 MCS0: -94 dBm11be EHT160 MCS13: -48dBm2.4 GHz:11n HT20 MSC0: -95 dBm11be EHT40 MSC13: -56dBm

WLAN Transmit Power

2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP)5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP)6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP)

WLAN Modes

Infrastructure mode
